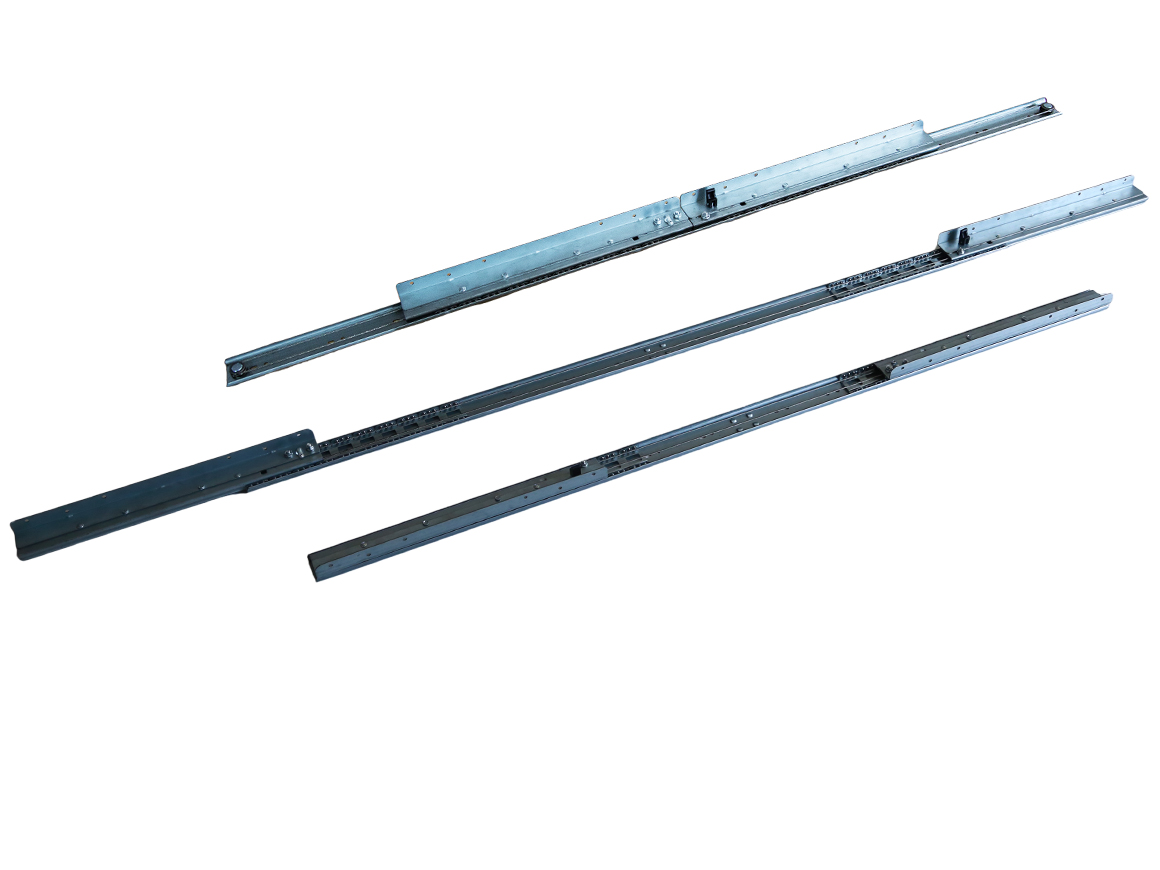

WLT47-300 HEAVY-DUTY CONSOLE TO DINING TABLES TELESCOPIC MECHANISM (Extension from1300 - 2400mm)

Q235 Cold Rolled Steel 2.0 Multi-Sections Slides Rails For Ultimate Space-Saving Console Tables Transform Into Dining Room Tables

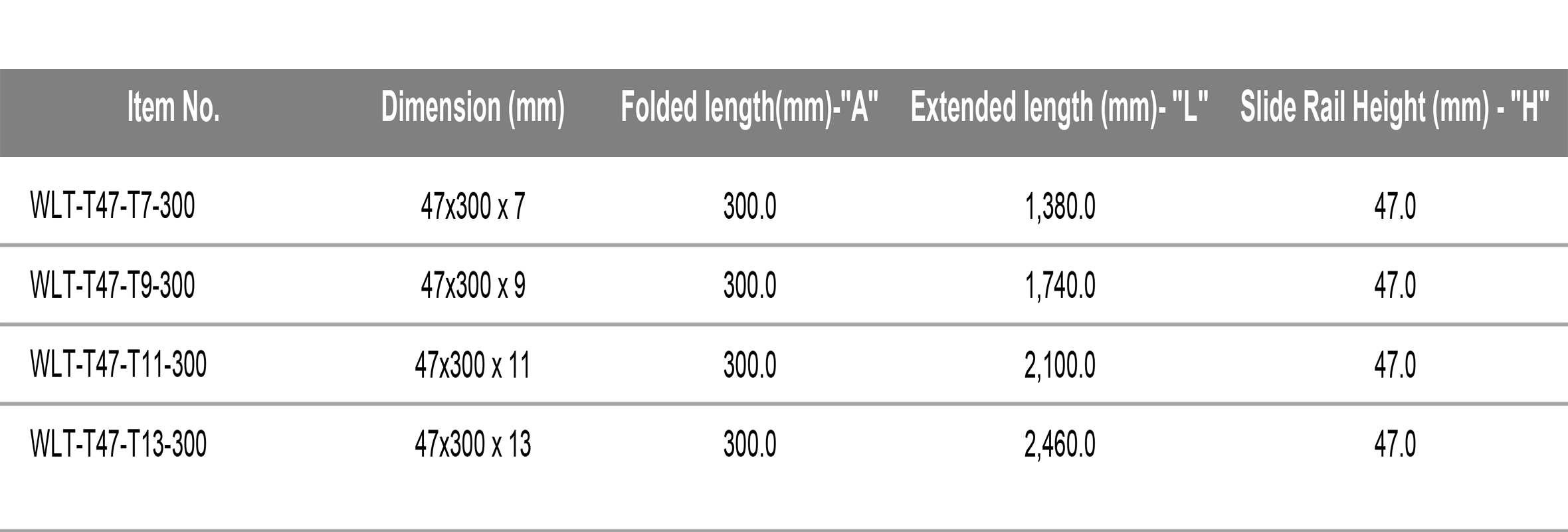

Specifications

PROFILE HEIGHT, (MM) 47
LENGTH OF FOLDED MECHANISM, (MM) 300
LENGTH OF EXTENDED MECHANISM, 1300 – 2400MM
LOAD, (KG) 90

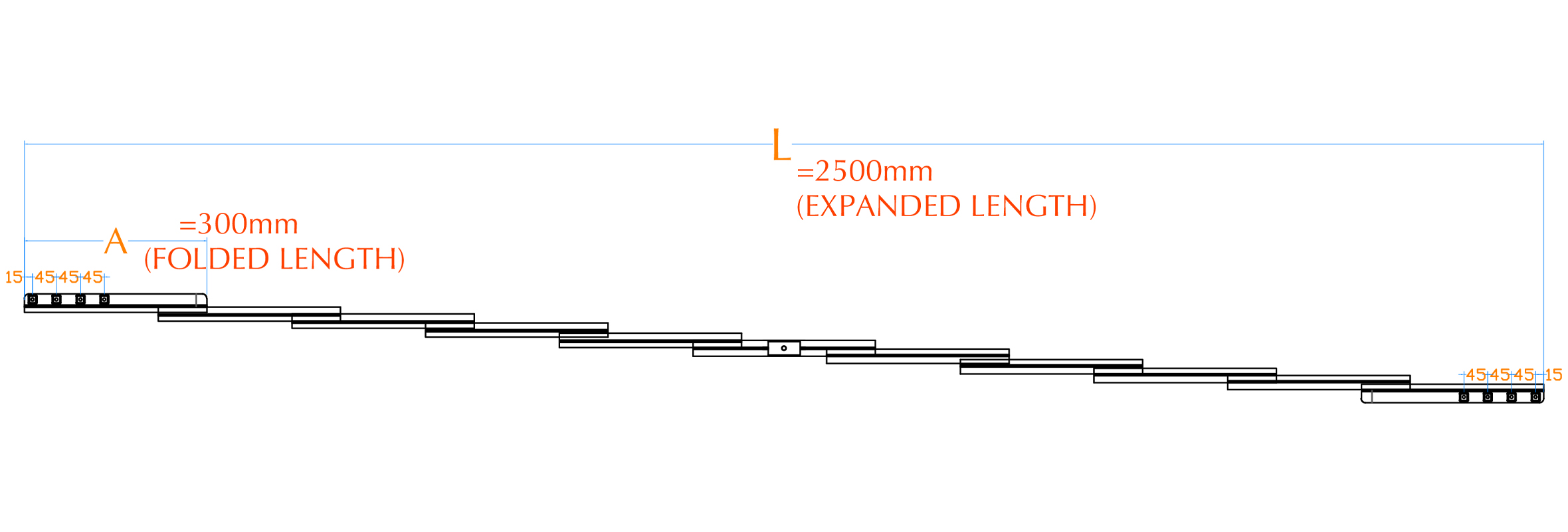

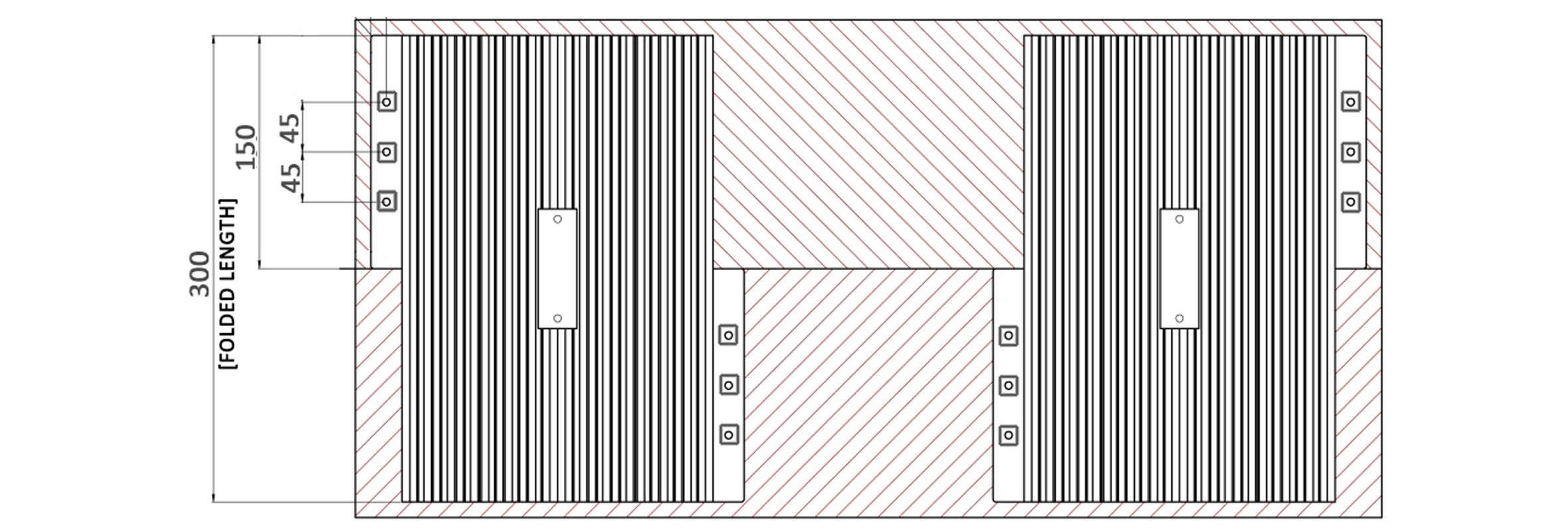

Drawing

WLT T47 3002360x800 1 WLT T47 300draft2360x800 WLT T47 300data2360x800 WLT T47 012360x800 1 WLT T50 022360x800 1 WLT T50 032360x800 1
