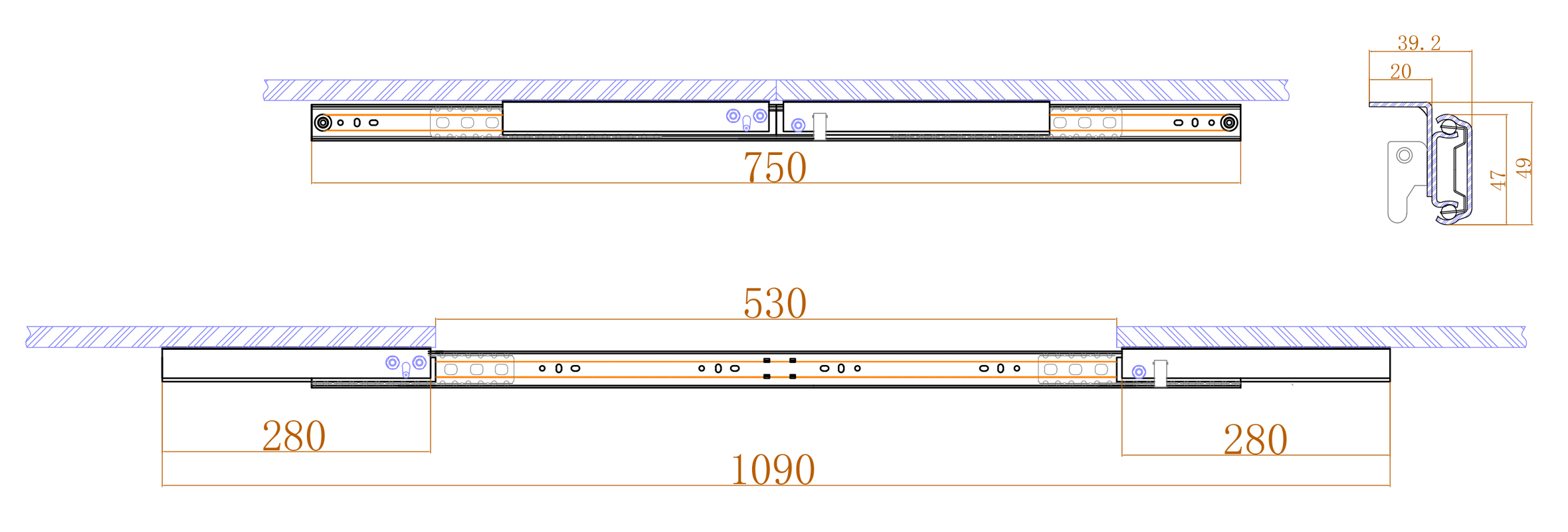

WLT-T47-750-280ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
750mm open to 1090mm long Synchronous extension with stopper slide rails for table
Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 47MM
LENGTH OF FOLDED MECHANISM:750MM
LENGTH OF EXTENDED MECHANISM: 1090MM
SIZE OF MOUNTING PLATE: 280x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 530MM
INSERT SIZE (RECOMMENDED) 500MM
LOAD RATE: 90KGS
