36mm Synchronized Extension Table Slide

Width at 36mm Table Slide, Synchronized Extension with brake

Specifications

Load rating: 120LBS

Extension: 300~800mm

Mounting arrangement: Side and Bottom mount.

Length range: 800 ~ 1600mm

Finishes available: Clear Zinc, Yellow Zinc, Black Electric Dipping

Applications:Dinning Table

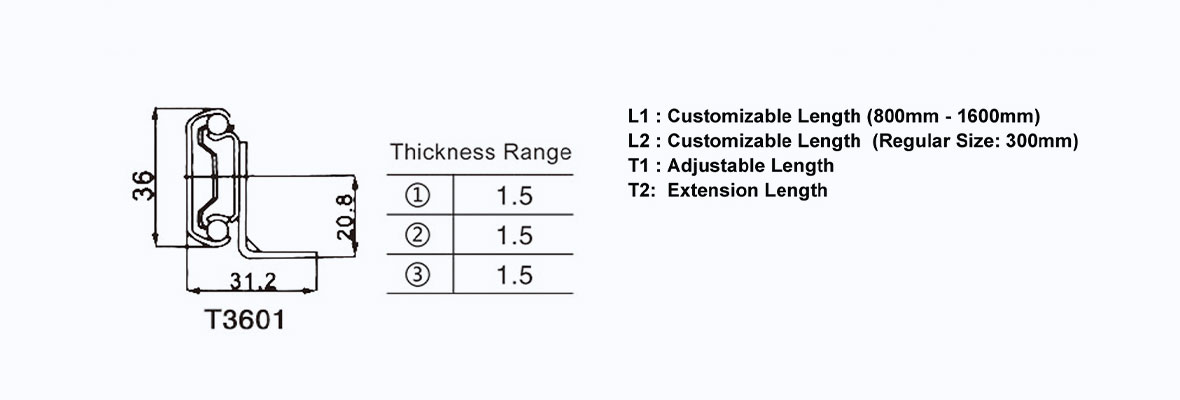

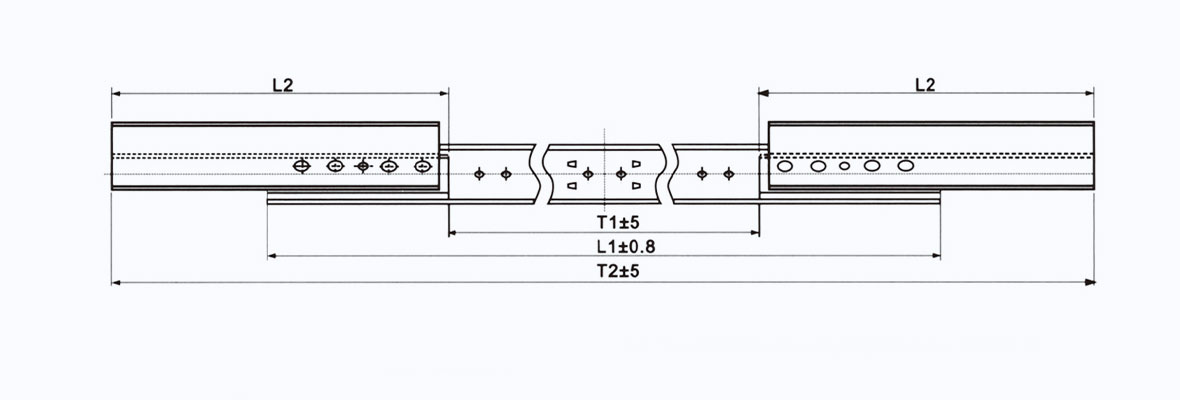

Drawing

T36001 synchronized extension table slide 7 1 T36001 synchronized extension table slide 7 2
