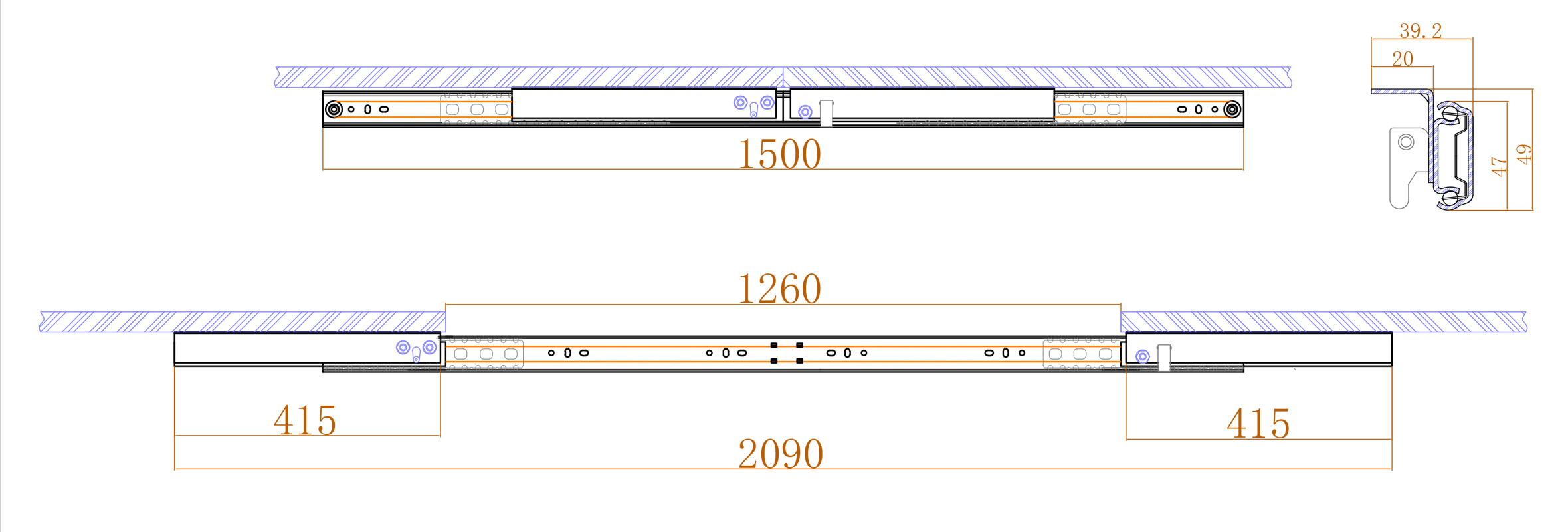

WLT-T47-1500-415ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
1.5Meters open to 2.09Meters long Synchronous extension with stopper slide rails for table
Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 47MM
LENGTH OF FOLDED MECHANISM:1500MM
LENGTH OF EXTENDED MECHANISM: 2090MM
SIZE OF MOUNTING PLATE: 415x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 1260MM
INSERT SIZE (RECOMMENDED) 3x400MM
LOAD RATE: 90KGS
