WLT-T35TT-960 Automatic Table Insert Lifting Telescopic Slide

Table Transformation Mechanism

Specifications

Table transformation mechanism for auto-lift table insert

This table slide is designed for 1000 – 1200mm dining tables, capable of extending to 1500 – 1800mm.

Type of mechanism: Automatic lift
Max insert thickness: 25mm
Synchronicity: Synchronous with stopper
Profile height: 35 mm
Maximum load: 60kgs
Length of folded mechanism:960mm
Maximum insert size:500mm
Length of the extended mechanism:1230mm
Mounting platform size: 220×20

Get a Custom Quote

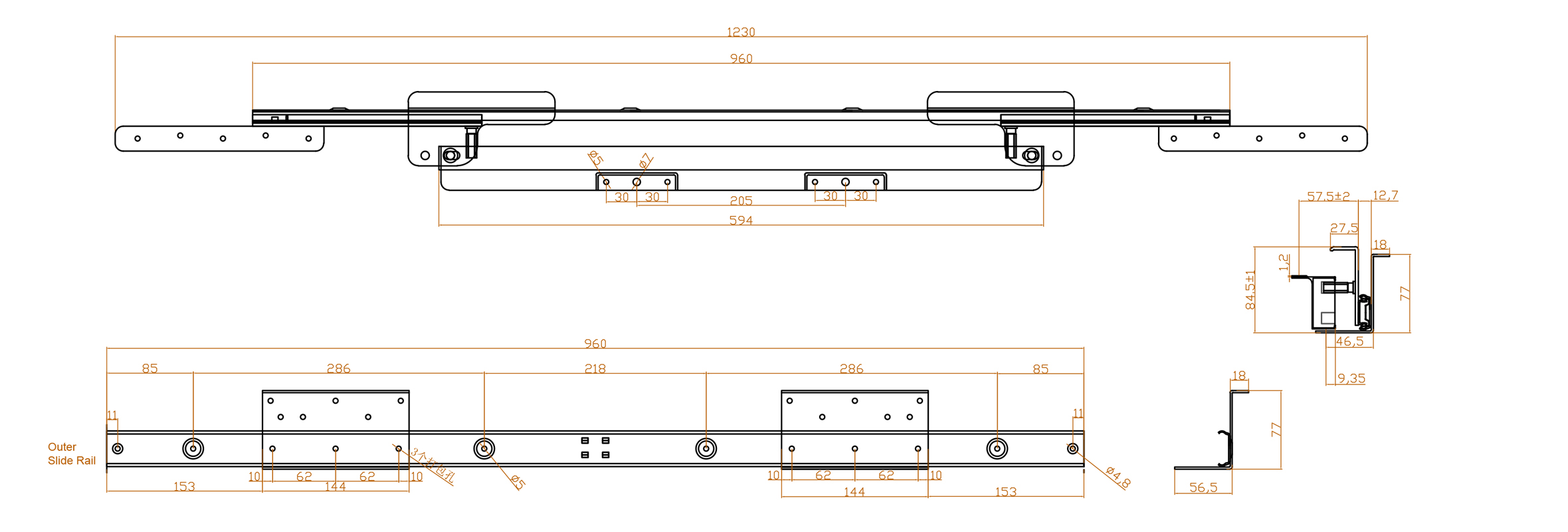

Drawing

WLT T35TT 960 2360X800
