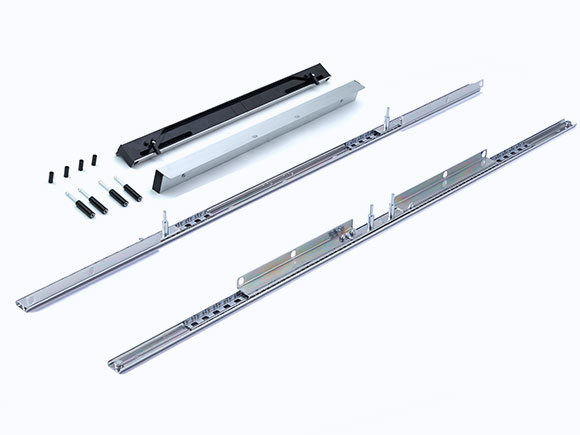

WLT-T47-3200-1000ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
3.2Meters open to 4.2Meters Super Long Synchronous extension with stopper slide rails for table

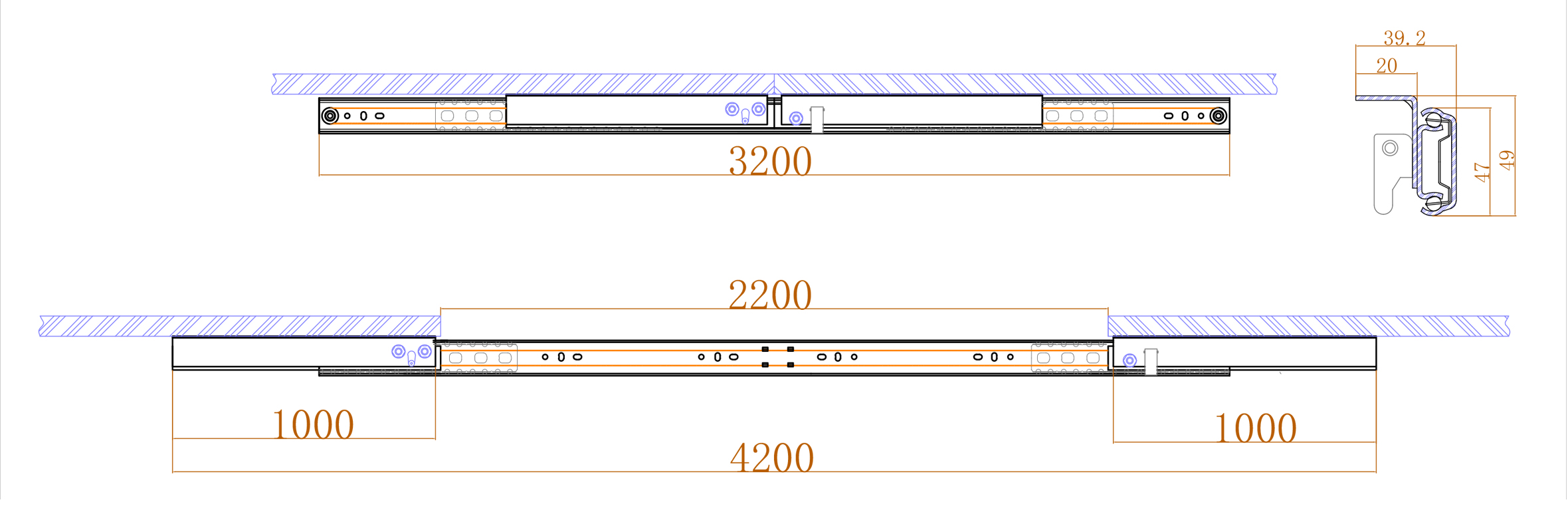

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 47MM
LENGTH OF FOLDED MECHANISM:3200MM
LENGTH OF EXTENDED MECHANISM: 2200MM
SIZE OF MOUNTING PLATE: 1000x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 2200MM
INSERT SIZE (RECOMMENDED) 3x700MM
LOAD RATE: 90KGS
