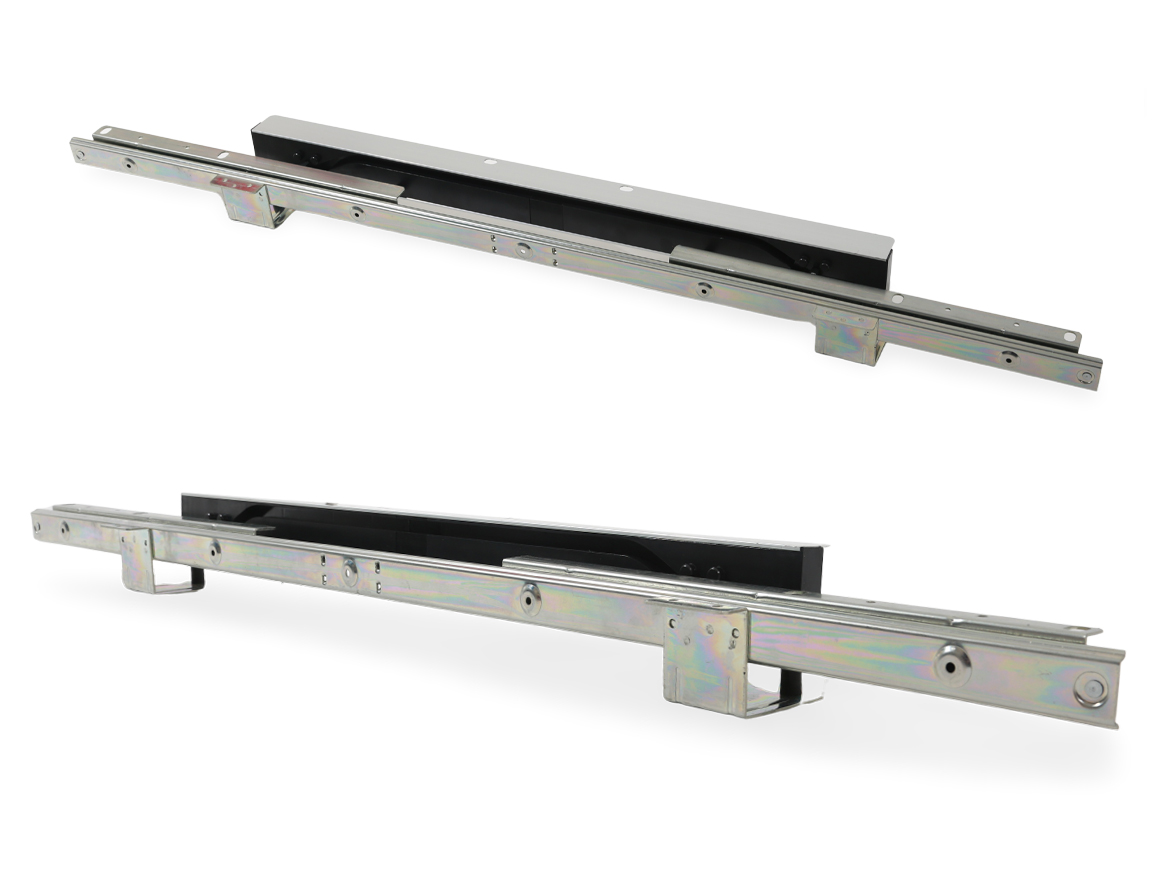

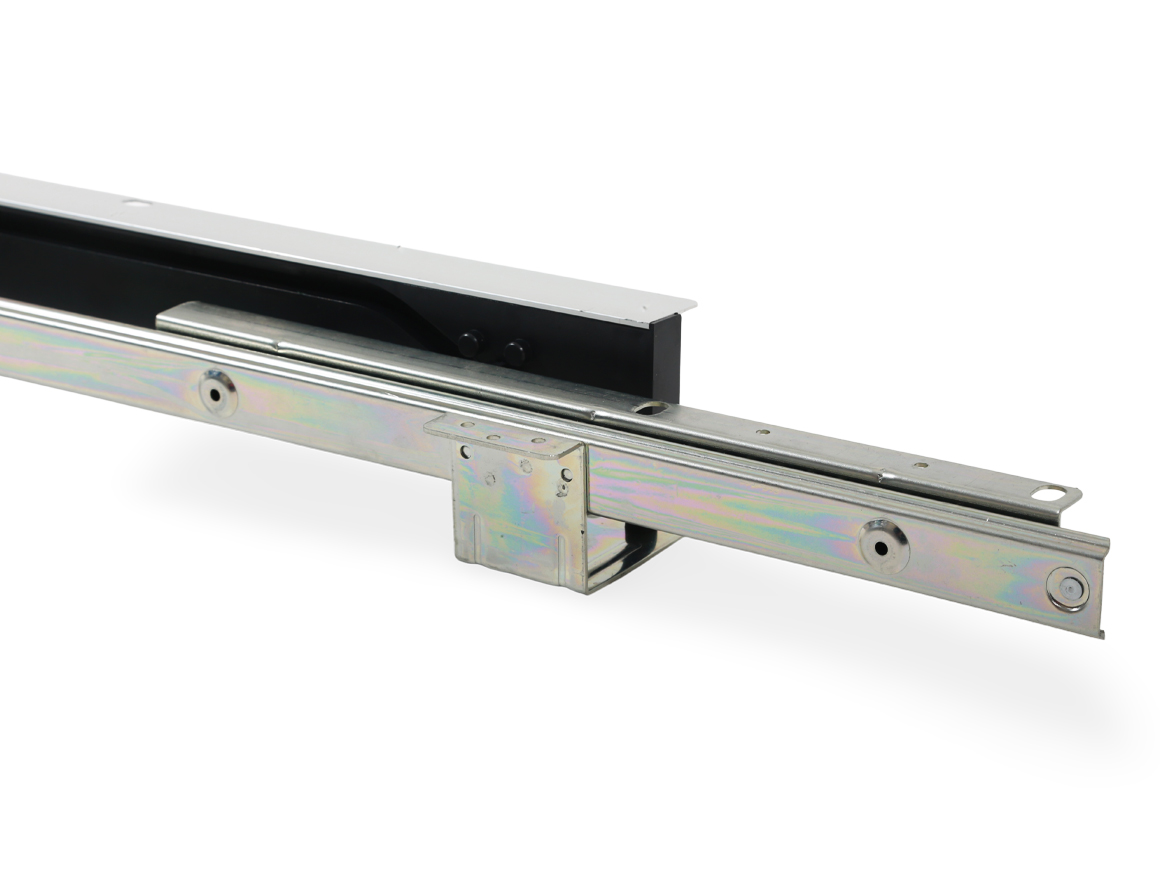

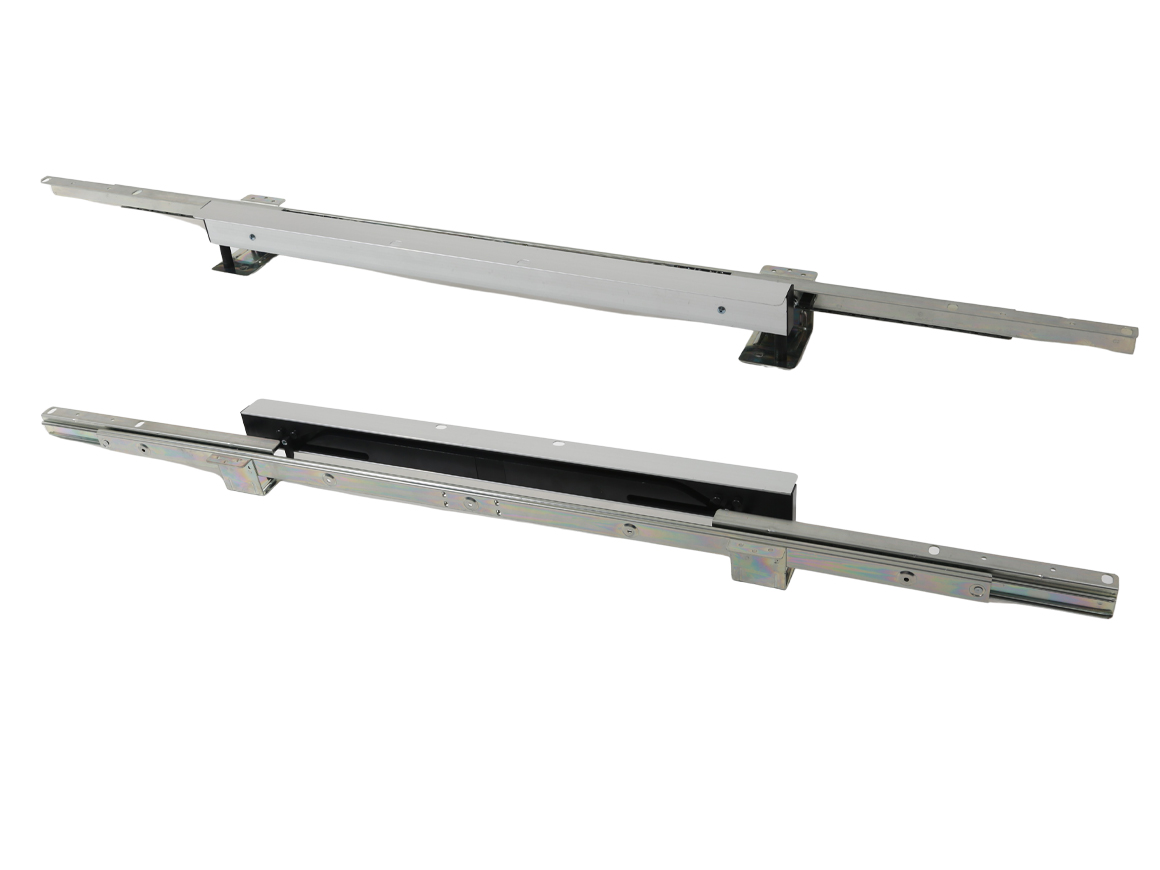

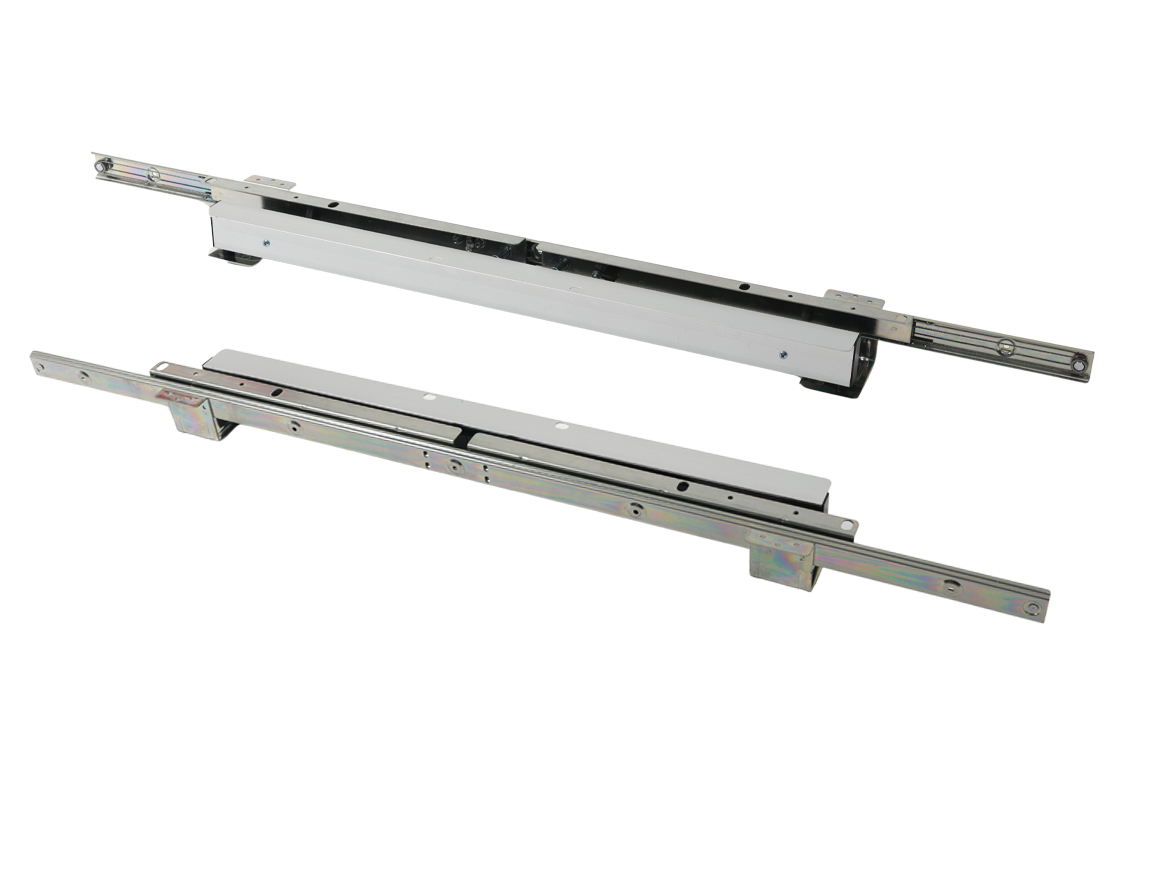

WLT-T35TT-1160 Automatic Table Insert Lifting Telescopic Slide

Table Transformation Mechanism

Specifications

Table transformation mechanism for auto-lift table insert

This table slide is designed for 1200 – 1400mm dining tables, capable of extending to 2000 – 2200mm.

Type of mechanism: Automatic lift
Max insert thickness: 25mm
Synchronicity: Synchronous with stopper
Profile height: 35 mm
Maximum load: 60kgs
Length of folded mechanism:1160mm
Maximum insert size:600mm
Length of the extended mechanism:1424mm
Mounting platform size: 400×20

Get a Custom Quote

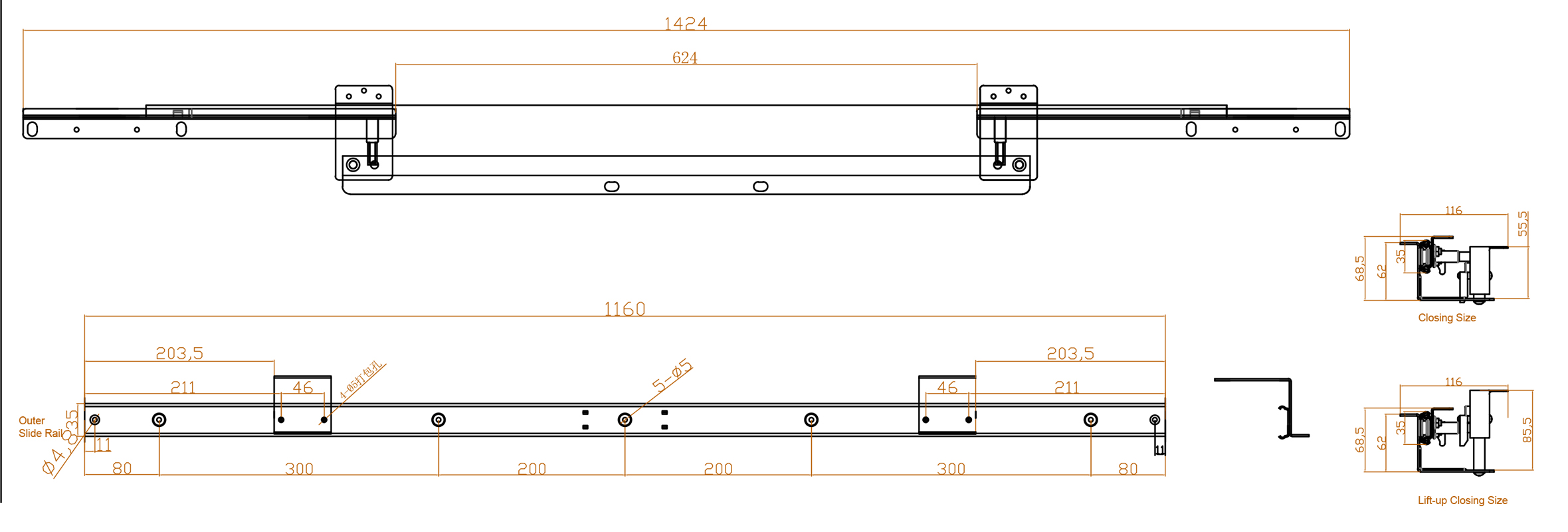

Drawing

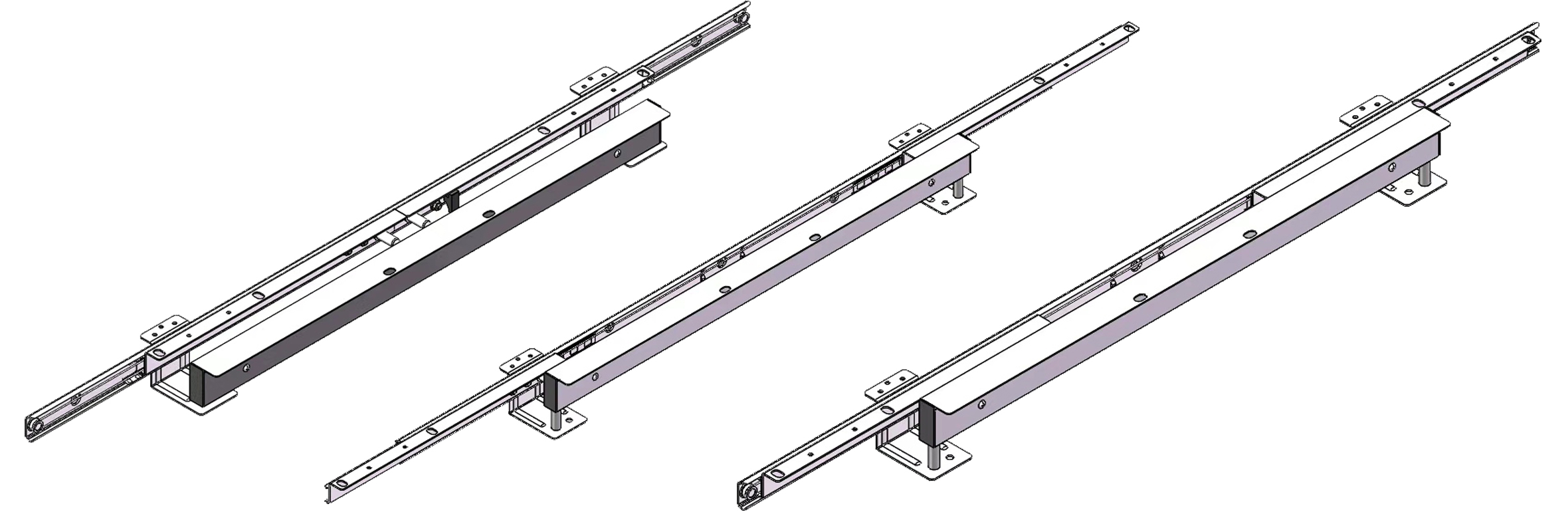

WLT T35TT 1160 2360X800 WLT T35TT 1160 2360X800 02
