WLT-T35-900-200ST INTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
Synchronous extension with stopper slide rails for table

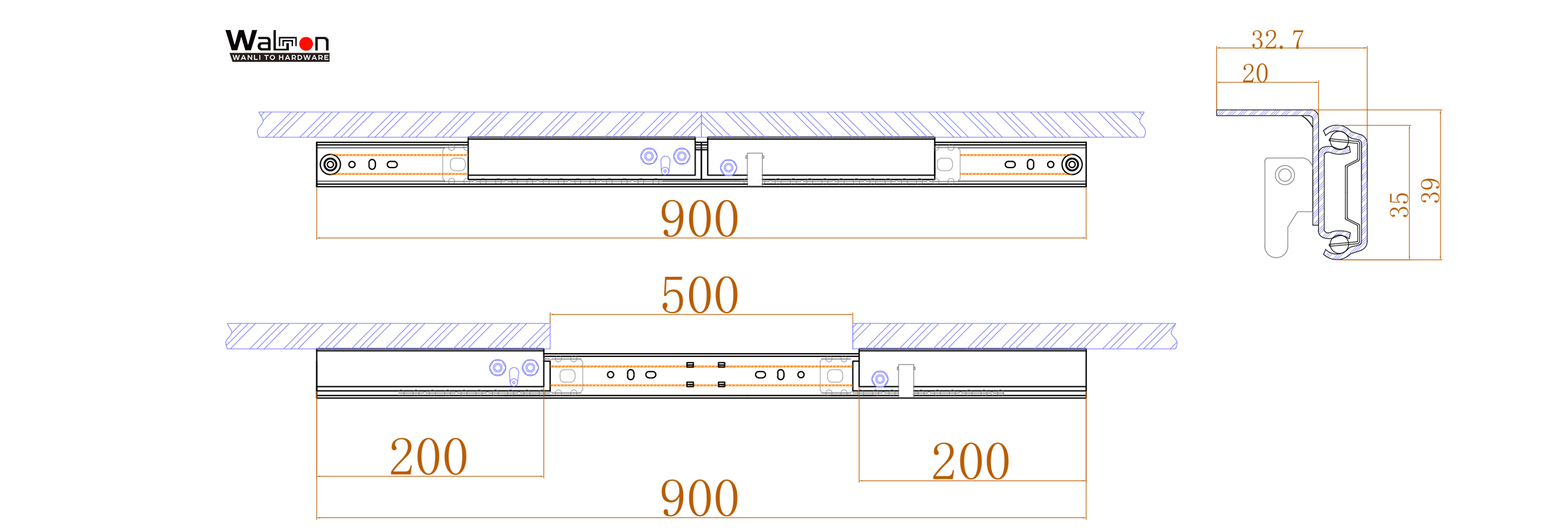

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:900MM
LENGTH OF EXTENDED MECHANISM: 900MM
SIZE OF MOUNTING PLATE: 200x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 500MM
INSERT SIZE (RECOMMENDED) 470MM
LOAD RATE: 60KGS
