WLT-T35-700-224ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
700mm open to 948mm long Synchronous Extension with stopper slide rails for tables

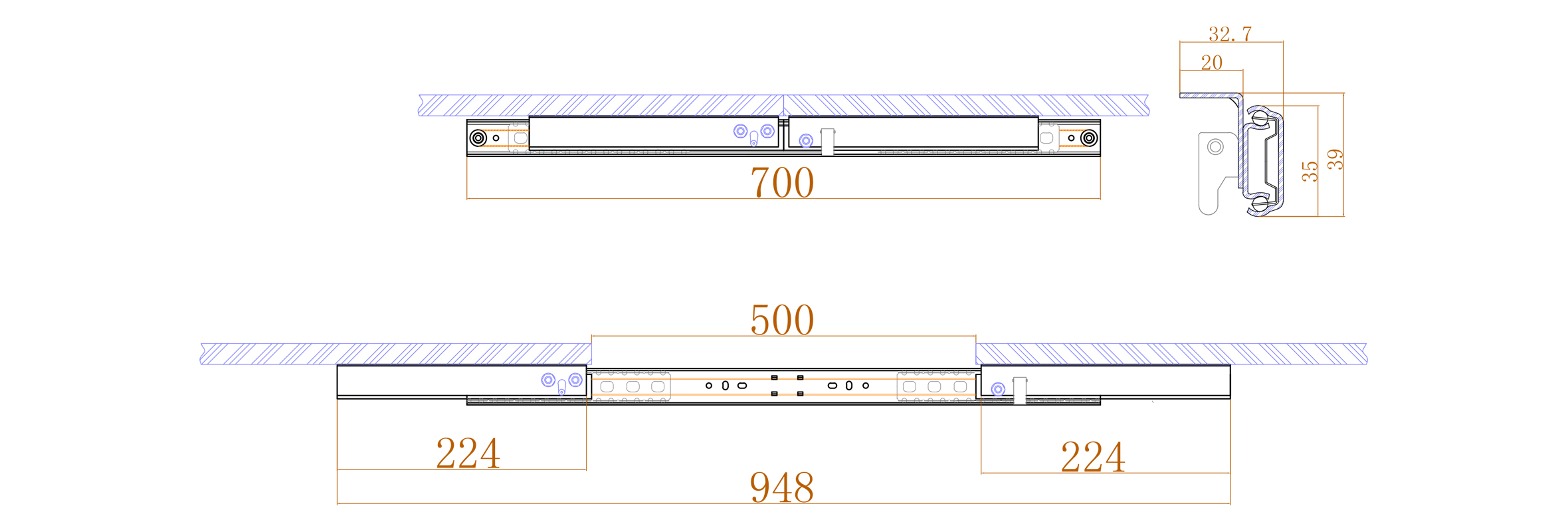

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:700MM
LENGTH OF EXTENDED MECHANISM: 948MM
SIZE OF MOUNTING PLATE: 224x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 500MM
INSERT SIZE (RECOMMENDED) 470MM
LOAD RATE: 60KGS
