WLT-T35-650-90 INTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
Synchronous extension with stopper slide rails for table

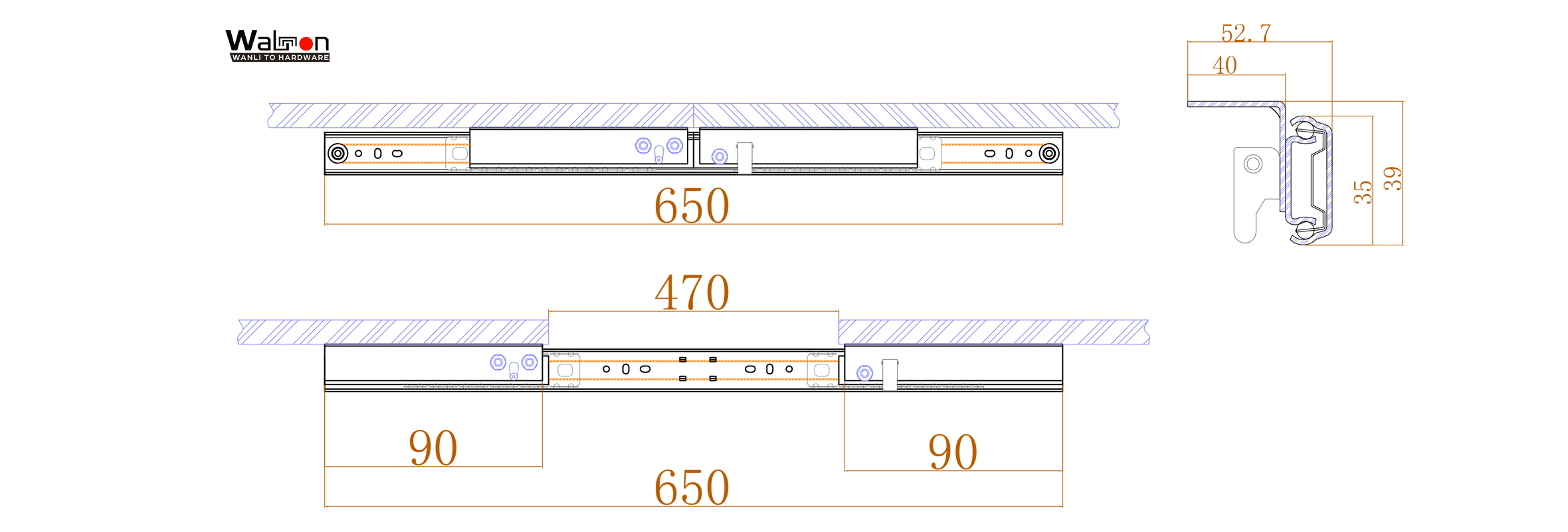

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:650MM
LENGTH OF EXTENDED MECHANISM: 650MM
SIZE OF MOUNTING PLATE: 90x40MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 470MM
INSERT SIZE (RECOMMENDED) 440MM
LOAD RATE: 60KGS
