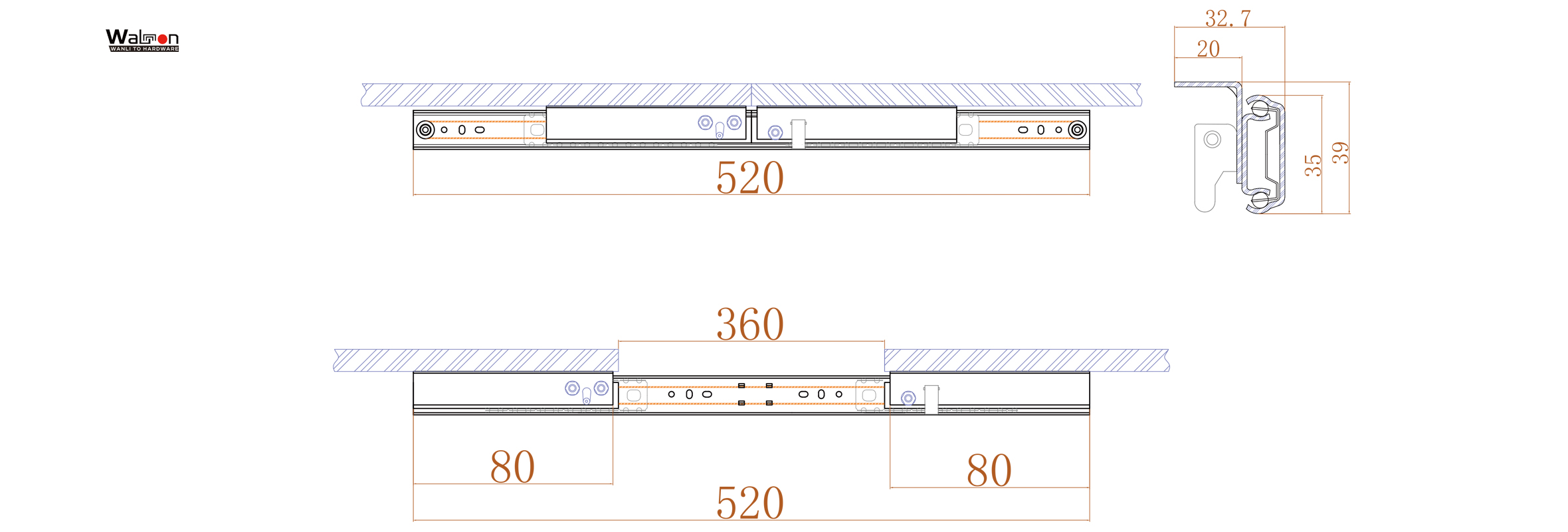

WLT-T35-520-80 INTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
Synchronous extension with stopper slide rails for table
Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM: 520MM
LENGTH OF EXTENDED MECHANISM: 520MM
SIZE OF MOUNTING PLATE: 80x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 360MM
LOAD RATE: 60KGS
INSERT SIZE (RECOMMENDED) 330MM
