WLT-T35-520-125 EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES

520mm open to 610mm long Synchronous Extension with stopper slide rails for tables

Specifications

SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:520MM
LENGTH OF EXTENDED MECHANISM: 610MM
SIZE OF MOUNTING PLATE: 125x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION:  340MM
INSERT SIZE (RECOMMENDED) 310MM
LOAD RATE: 60KGS

Get a Custom Quote

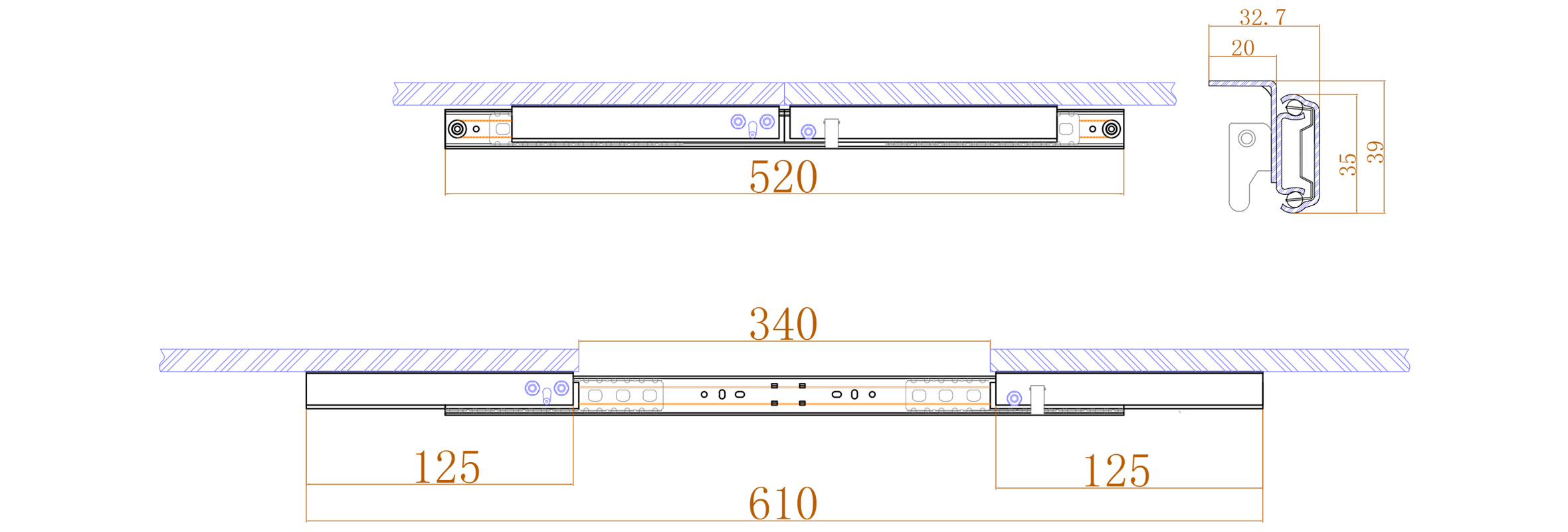

Drawing

WLT T35.520 1200ST 012360X800 WLT T47.750 1500ST 022360X800 WLT T35x520x125 012360x800 1
