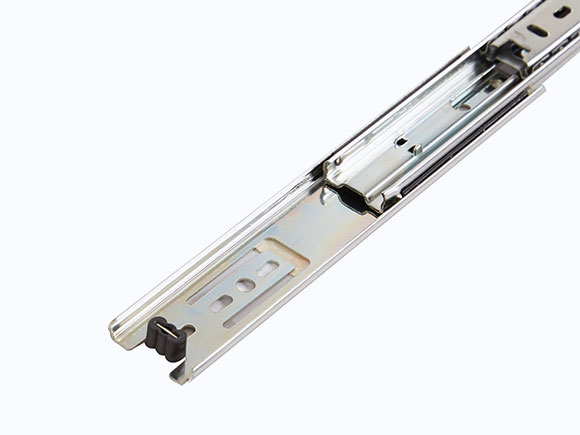

  • 35mm 3 Sections Drawer Slides 2

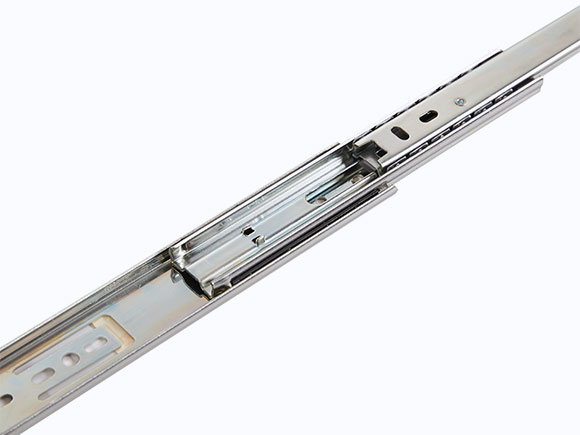

  • 35mm 3 Sections Drawer Slides 3

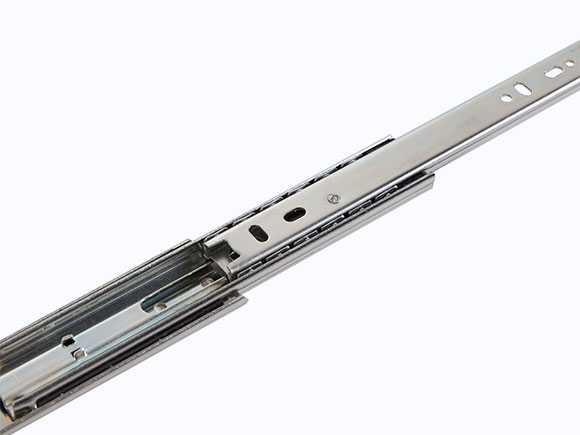

  • 35mm 3 Sections Drawer Slides 4

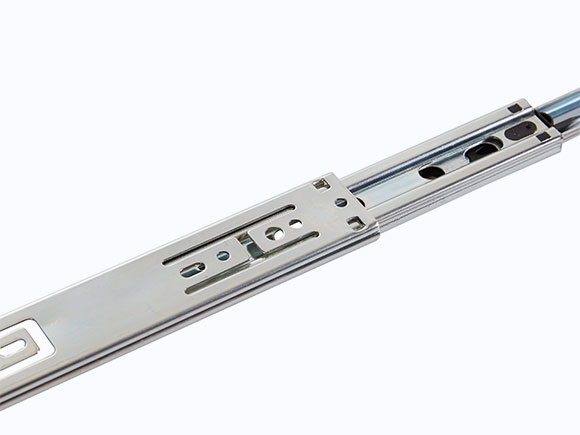

  • 35mm 3 Sections Drawer Slides 5

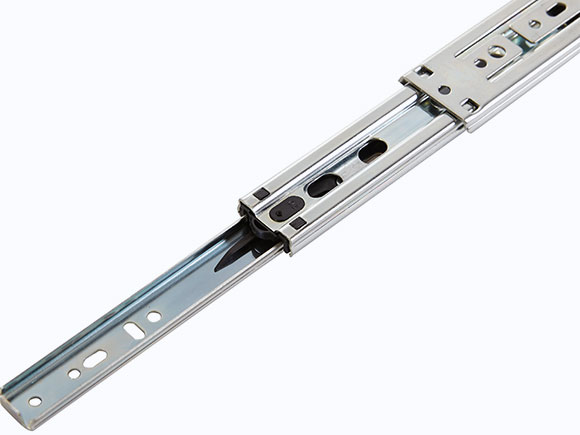

  • 35mm 3 Sections Drawer Slides 6

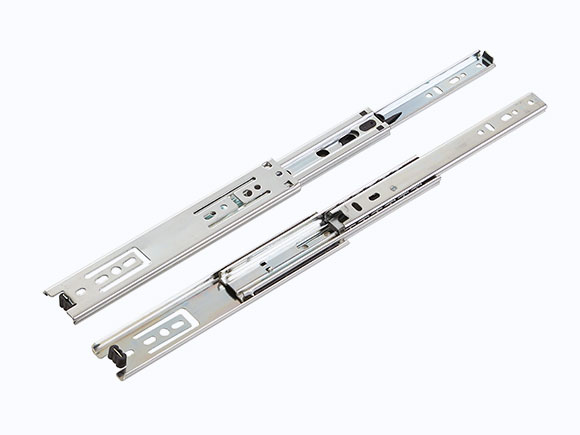

  • 35mm 3 Sections Drawer Slides 7

WLT-35001 35mm Full Extension Steel Ball Bearing Drawer Slides

Drawer Slides, Width at 35mm and Customizable Length.Full Extension Slides.

Specifications

Load rating: 30LBS

Extension: Full Extension

Mounting arrangement: Side Mount.

Length range: 250 ~ 700mm

Finishes available: Clear Zinc, Yellow Zinc, Black Electric Dipping

Applications: Kitchen Cabinet, Bathroom Cabinet, Wardrobe, Cupboard

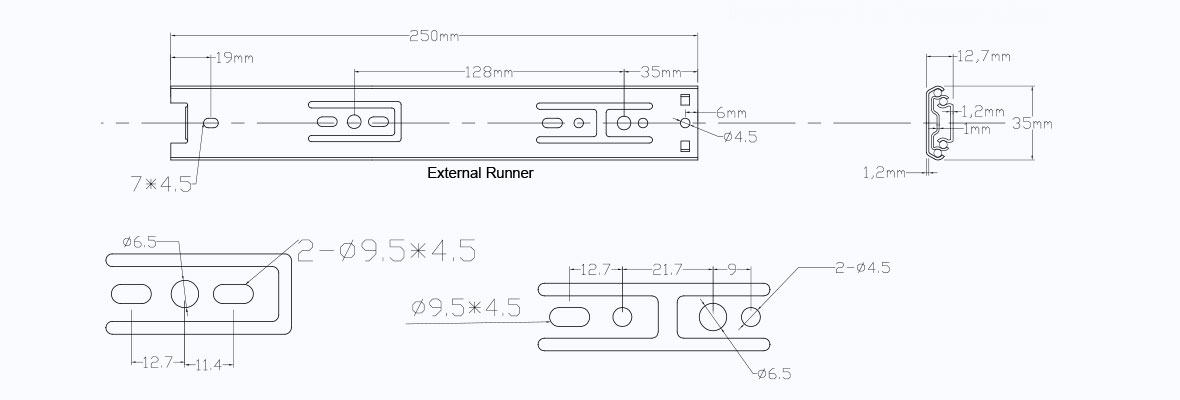

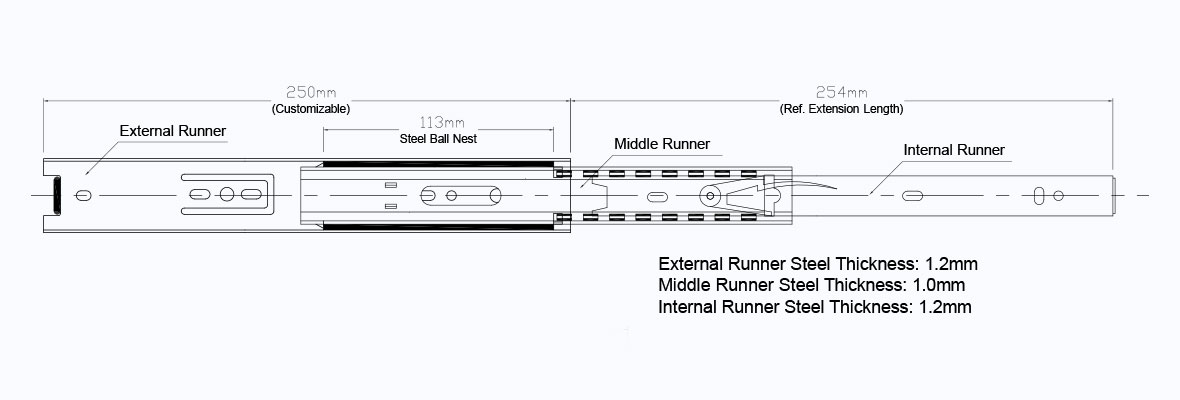

Drawing

WLT 35001 1 WLT 35001 2
