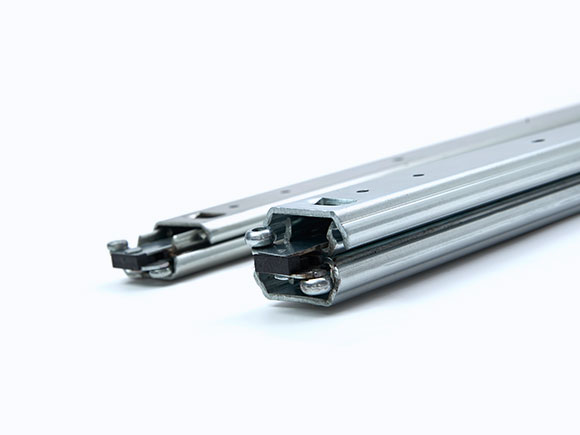

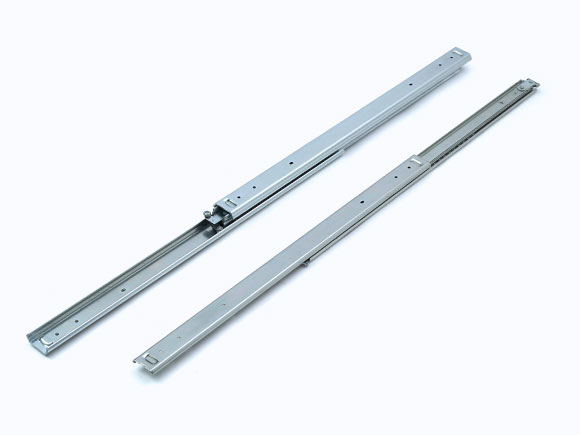

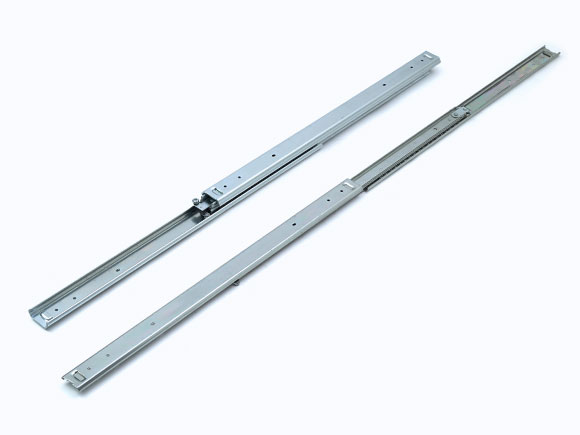

Two-Way Travel Machinery Slides

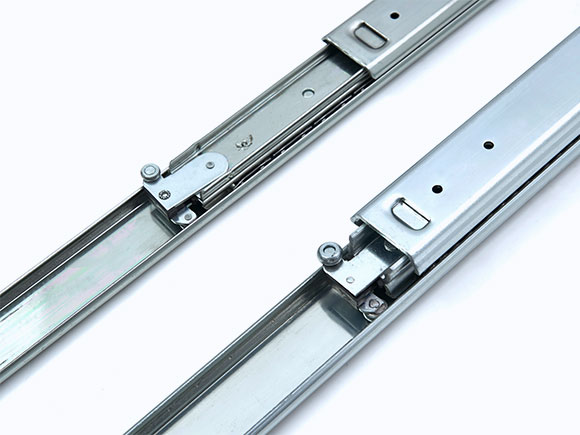

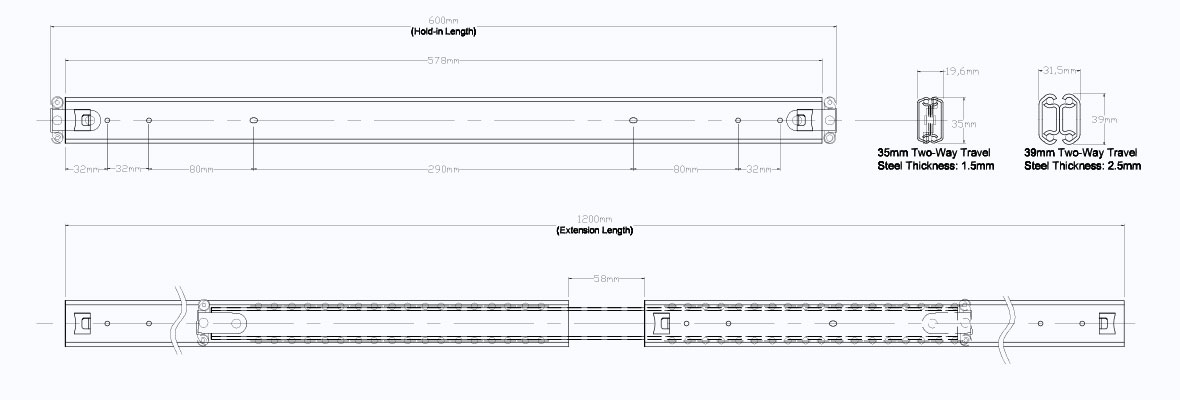

Double Sided Rail with Two-Way Travel Function. Centre Hold-in. Slide Thickness Options at 19.6mm and 31.5mm
Specifications
Load rating: 100LBS
Extension: Full Extension in Two Directions
Mounting arrangement: Side Mount
Length range: 300 ~ 800mm
Finishes available: Clear Zinc, Yellow Zinc, Black Electric Dipping
Features: Two Way Travel. Hold-in at Centre, Full Extension.
Applications:
- Drawer box or waste box in
Coca-Cola vending machine
Soda and snack machine
Pepsi vending machine
Juices oranges vending machine for fresh drinks
- Coin bins machine
- Food trays
- Cash drawer
