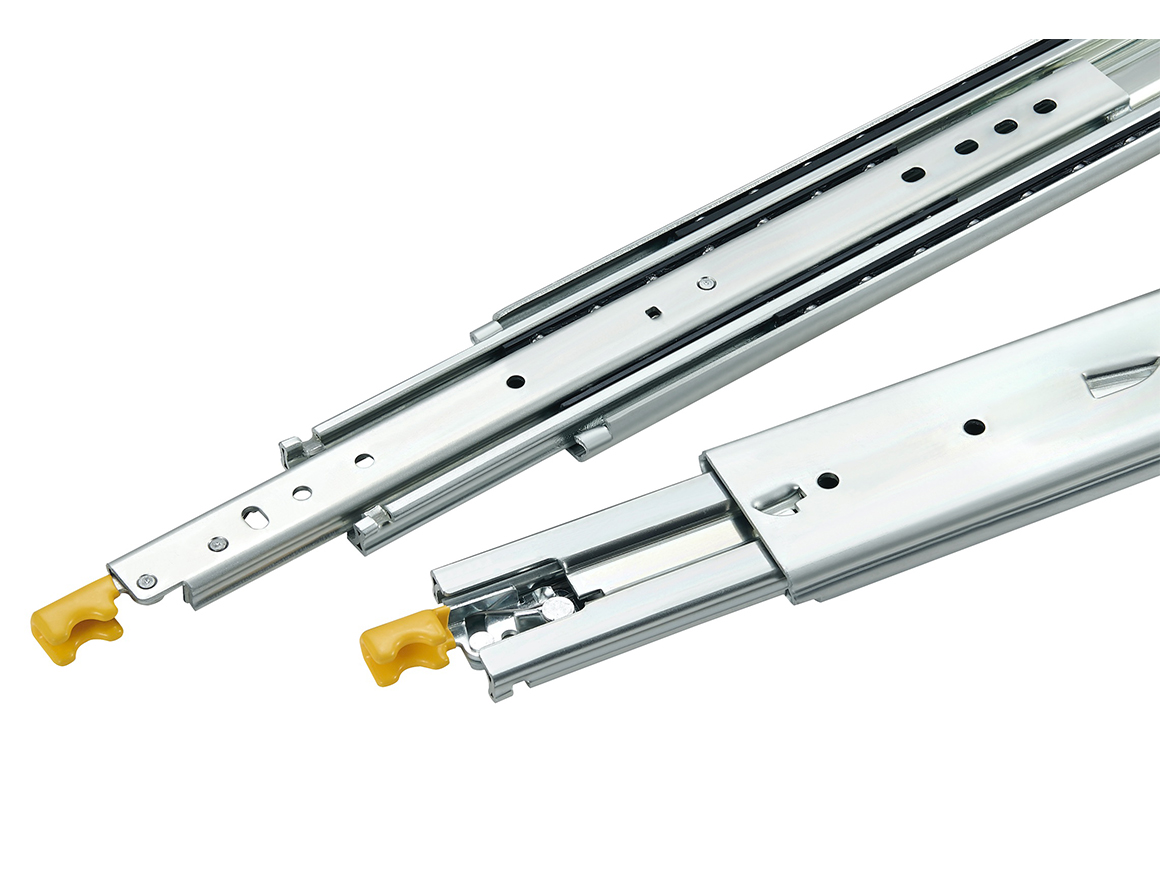

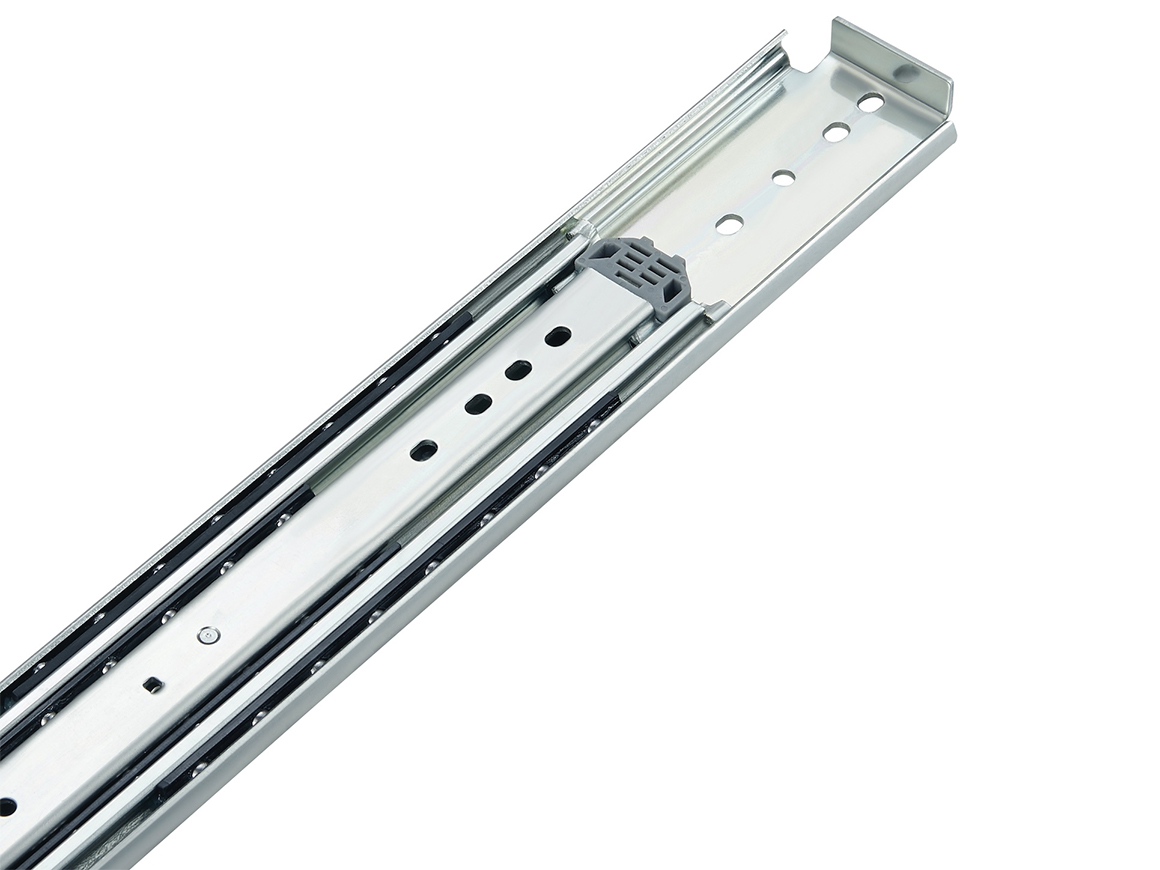

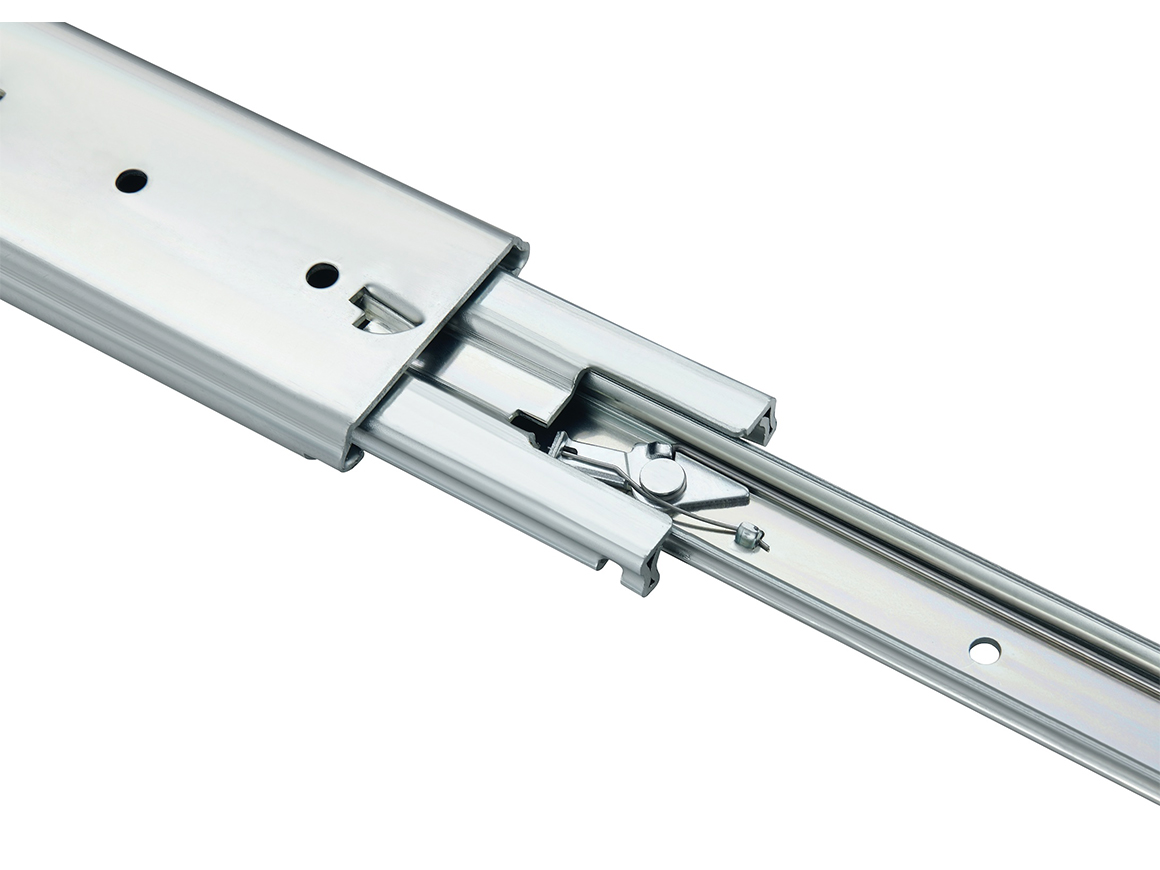

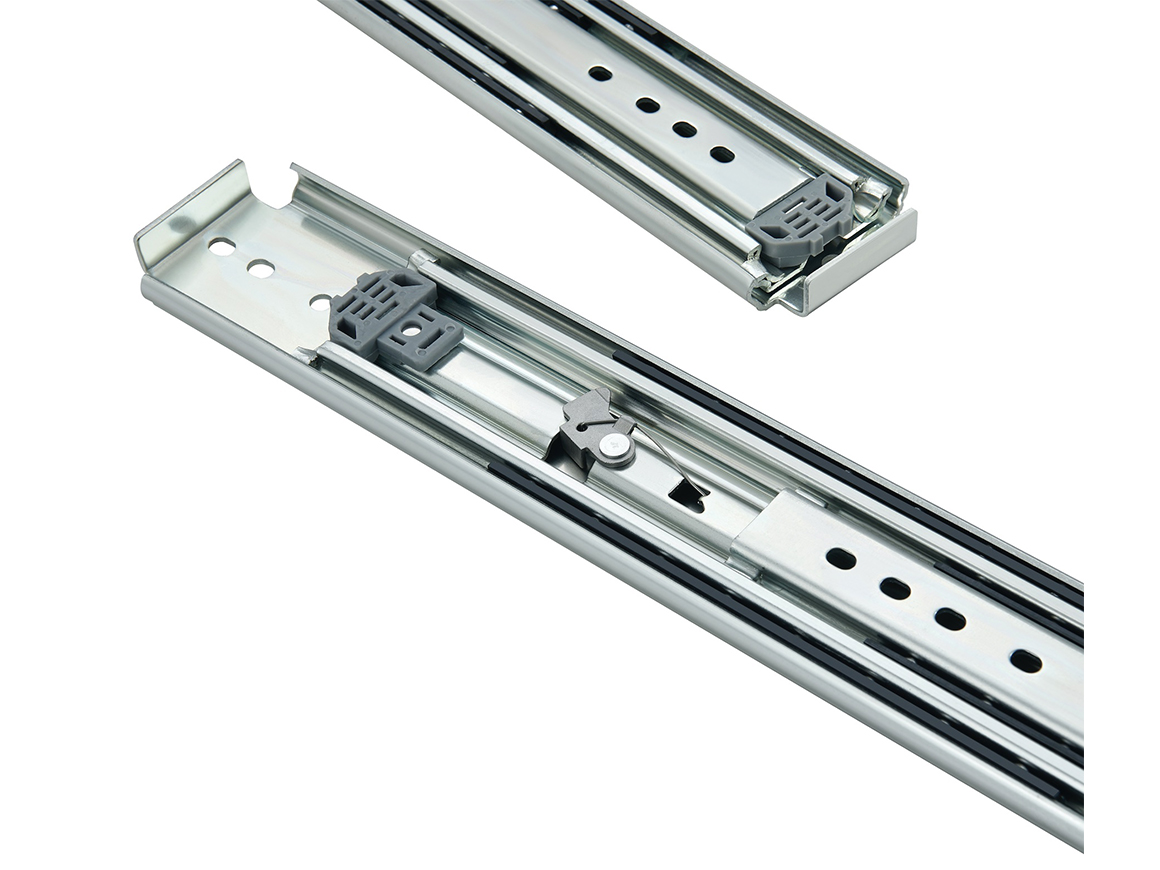

WLT76002 FULL EXTENSION HEAVY-DUTY DRAWER SLIDES WITH LOCKI

76mm Heavy-Duty Industrial Steel up to 500 lbs Capacity, 3-fold Full Extension, Ball Bearing Lock-in & Lock-Out, Side Mount Drawer Slides

Specifications

FEATURES
– Customized length and mounting holes

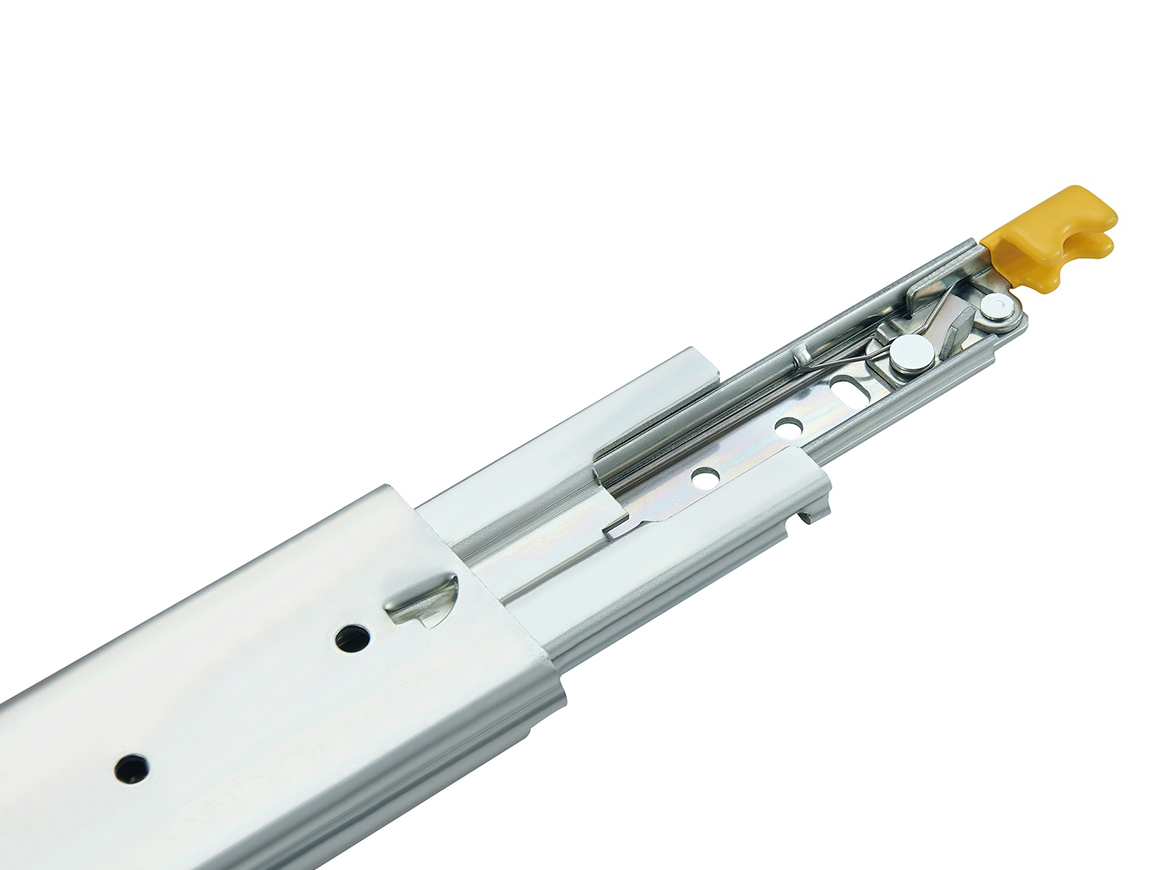

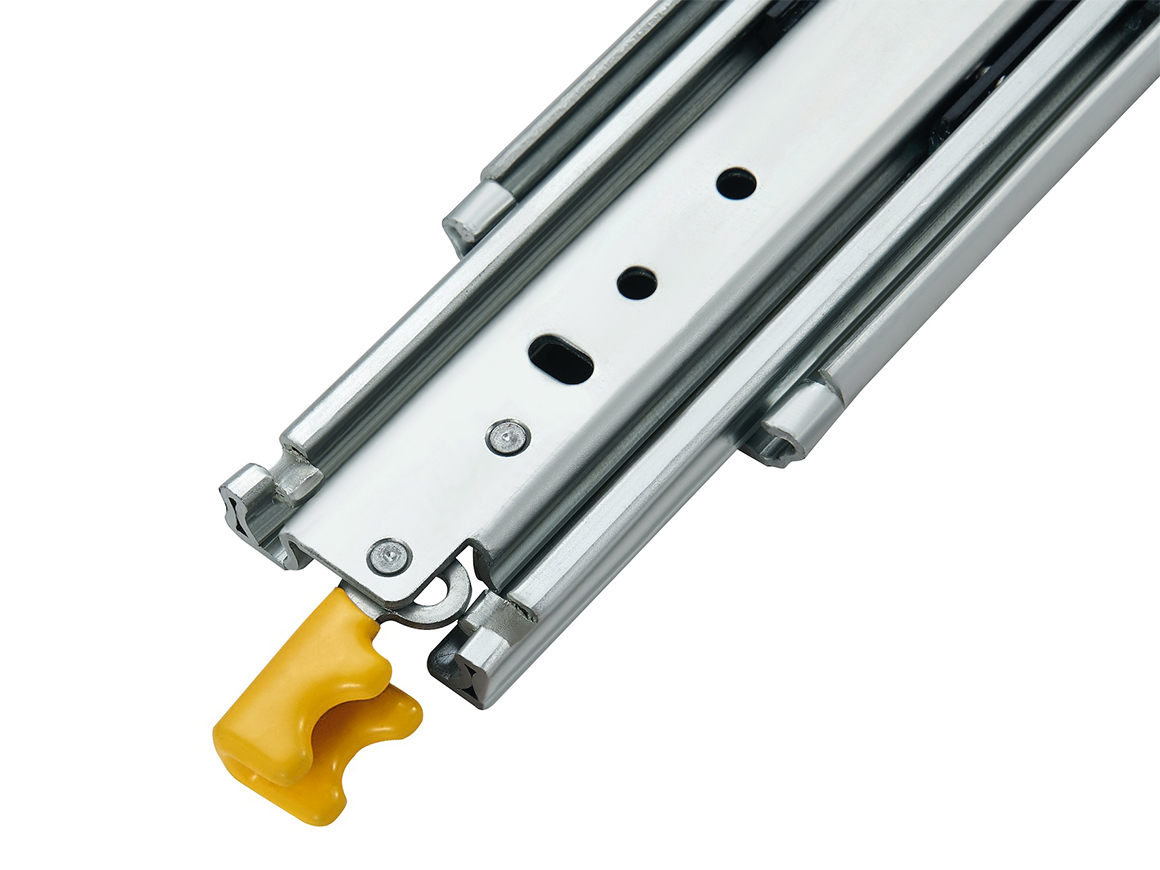

– Super Heavy-Duty Industry Telescopic Slide Rail – Lock-in Lock-out

APPLICATIONS
– Compatible with Tool Box, Utility Vehicles, Industrial Equipment and Storage, Movable home fixtures, RV compartments, Industrial Machinery, Emergency Vehicles, Automotive
– High-Load Wooden and Steel Drawers, Or Drawers requiring Higher Load Feature

SPECIFICATIONS

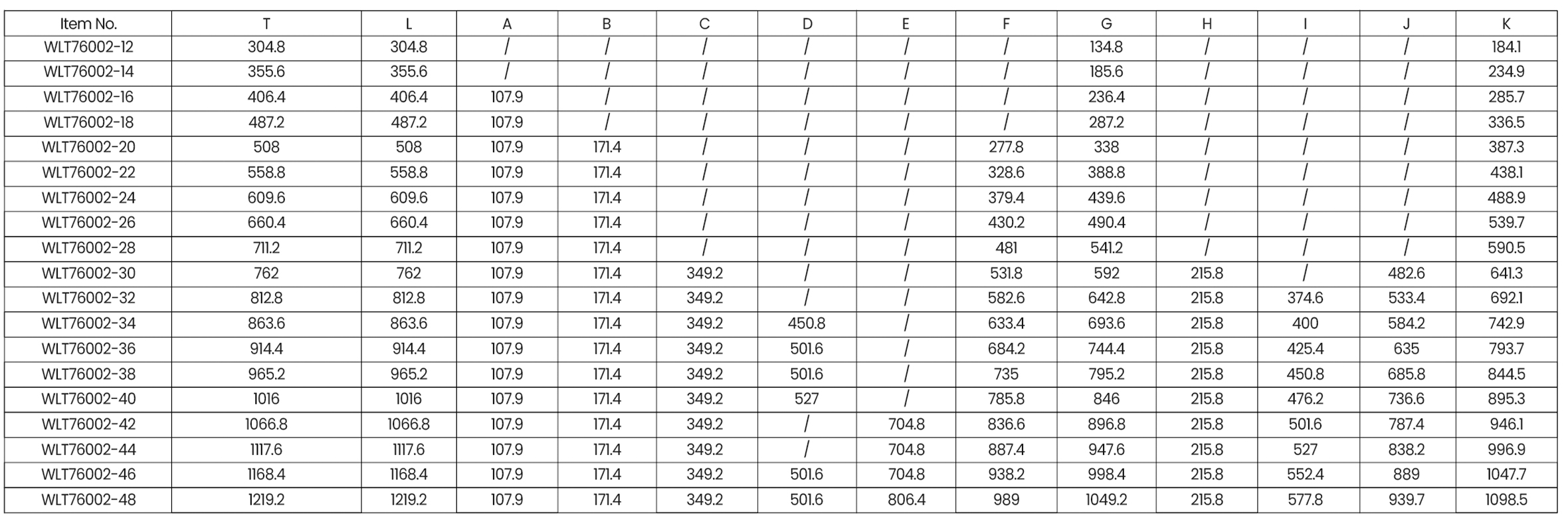

– Length:10”-60”
– Module: Lock-in Lock-out NON Soft-Close
– Mounting: Side Mount

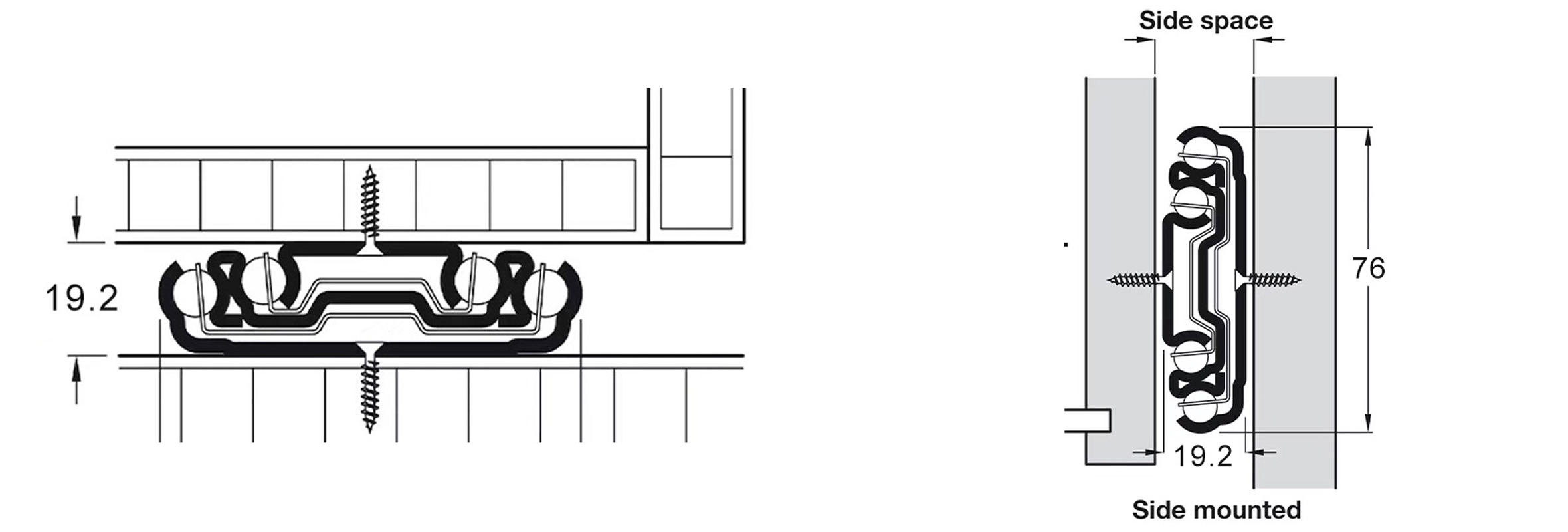

– Mounting Clearance: 19.6mm (+0.3mm -0.3mm)
– Travel:Full Extension (3-Fold)
– Disconnect: NON Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (2.5mm/2.2mm/2.5mm)

RATING
– Load: 220kgs/485lbs.
220KG – Compliance ANSI performance standards as established by
BIFMA, BHMA and KCMA
