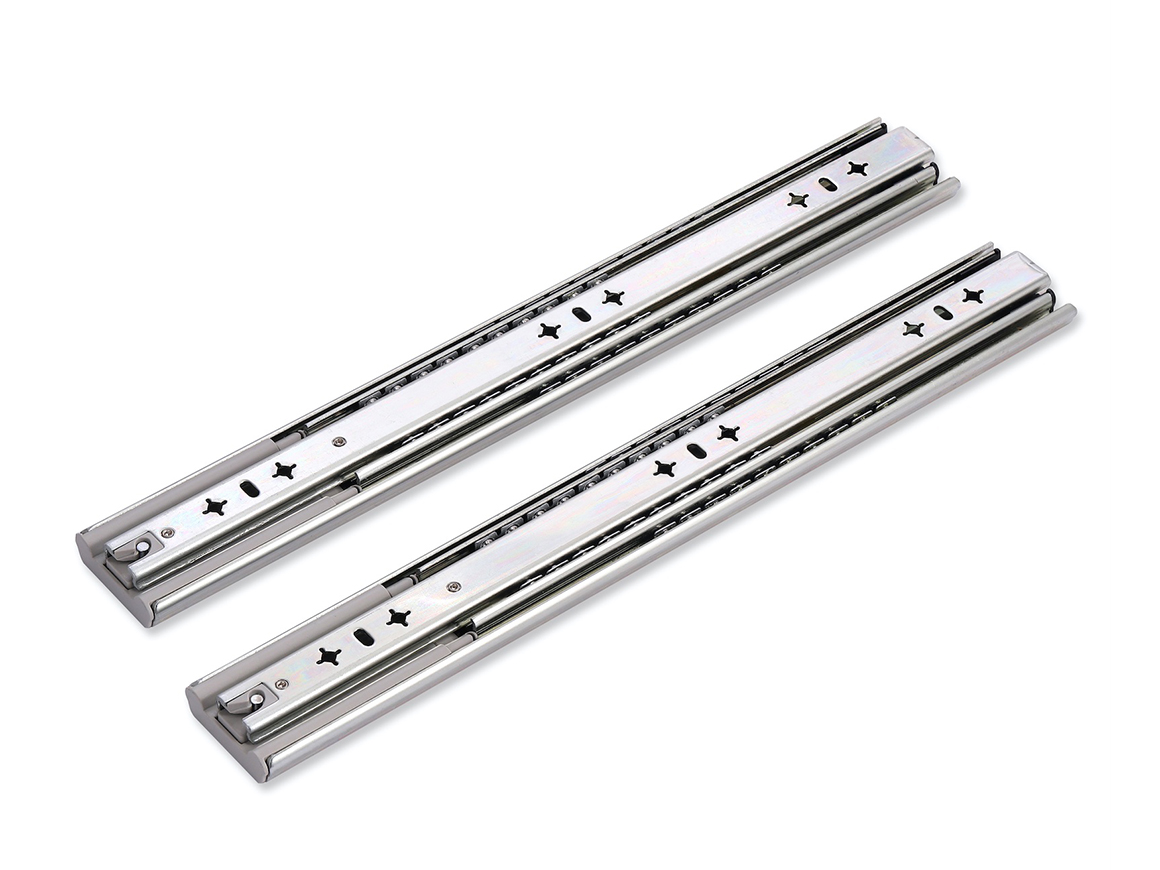

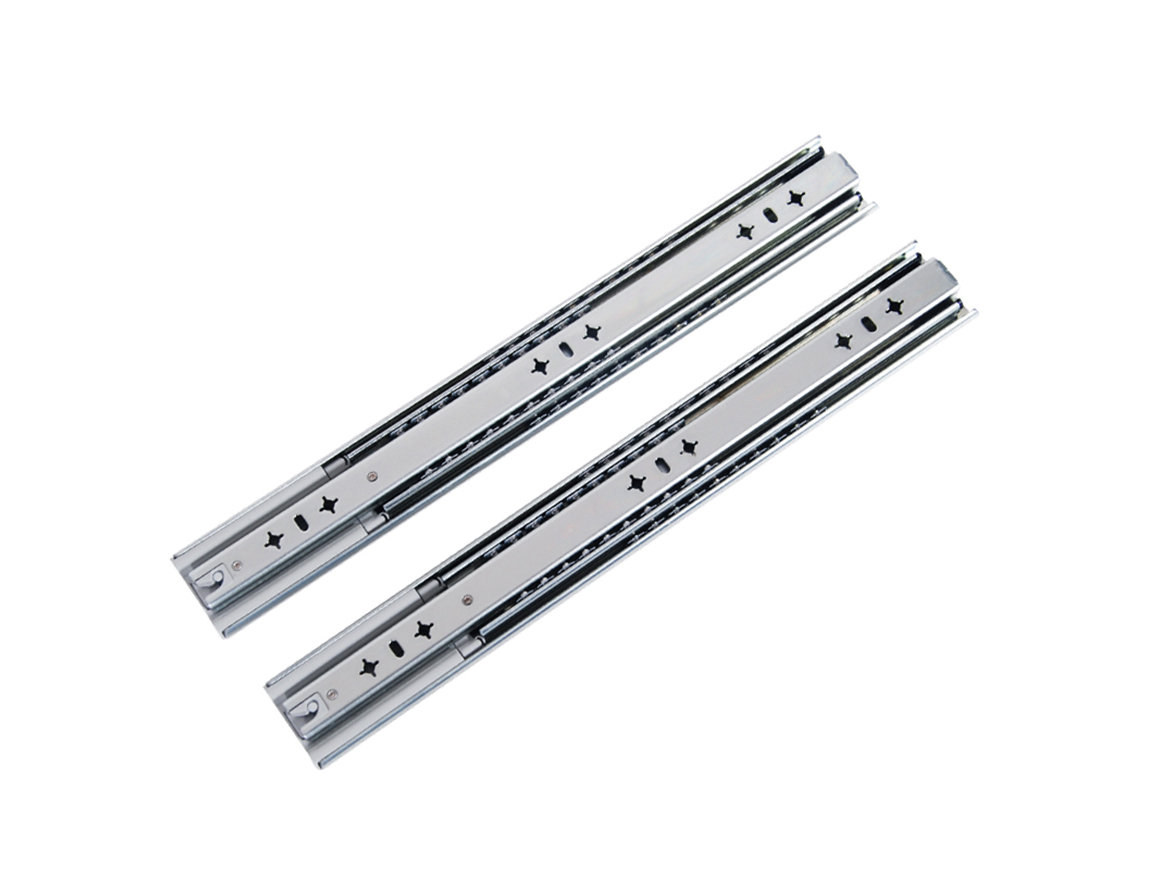

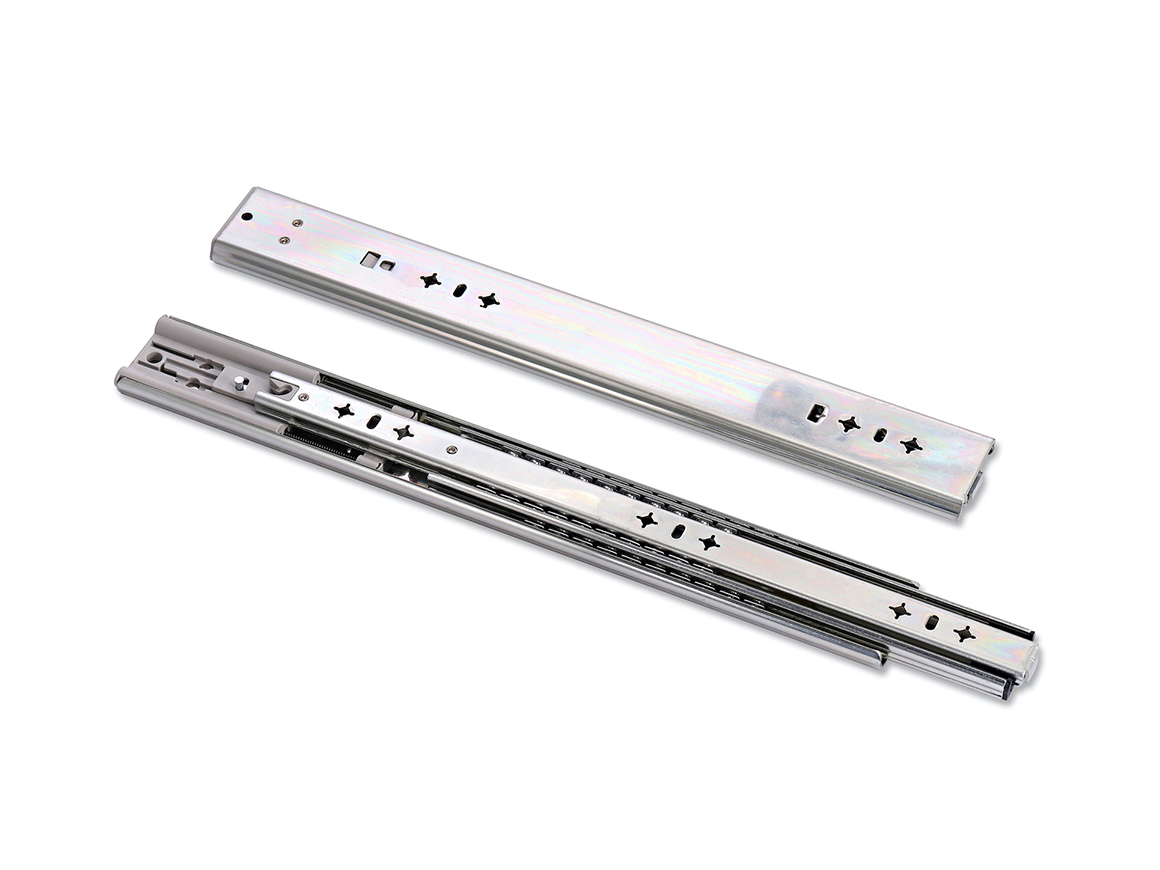

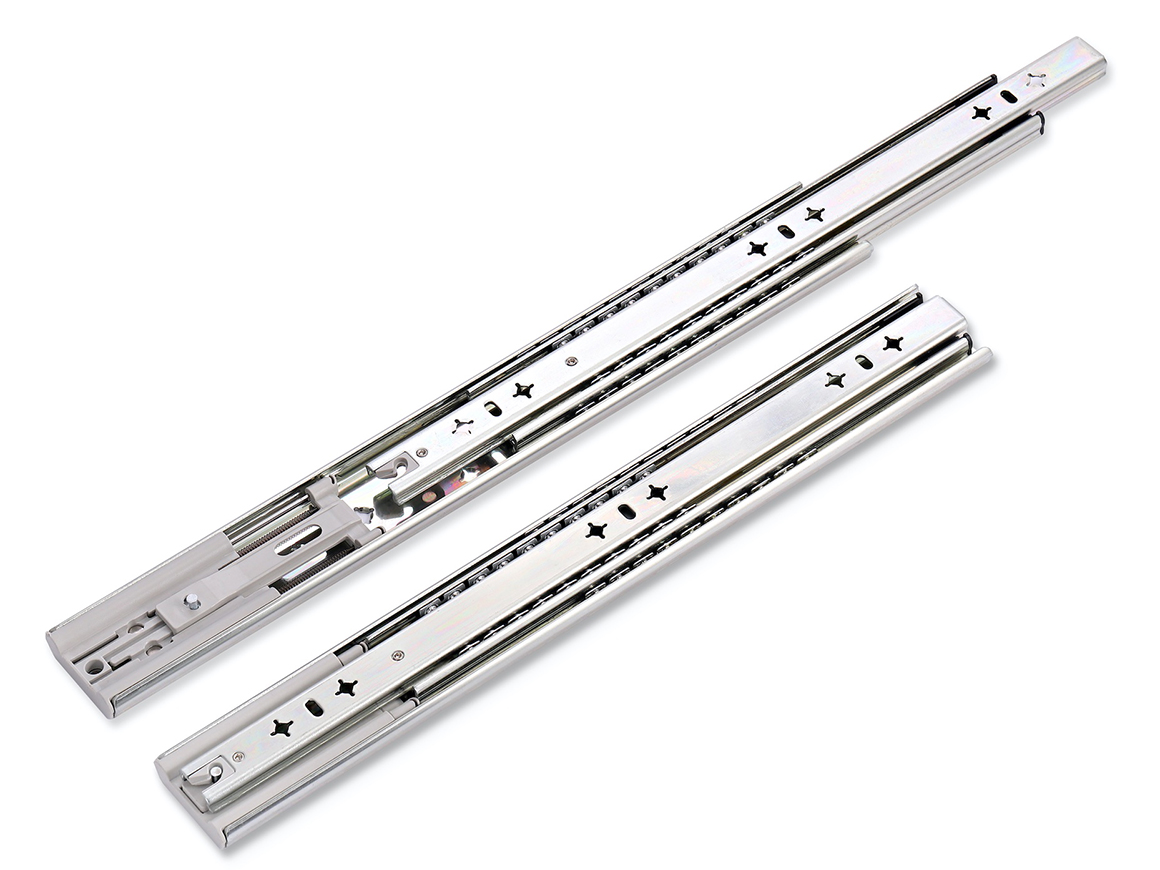

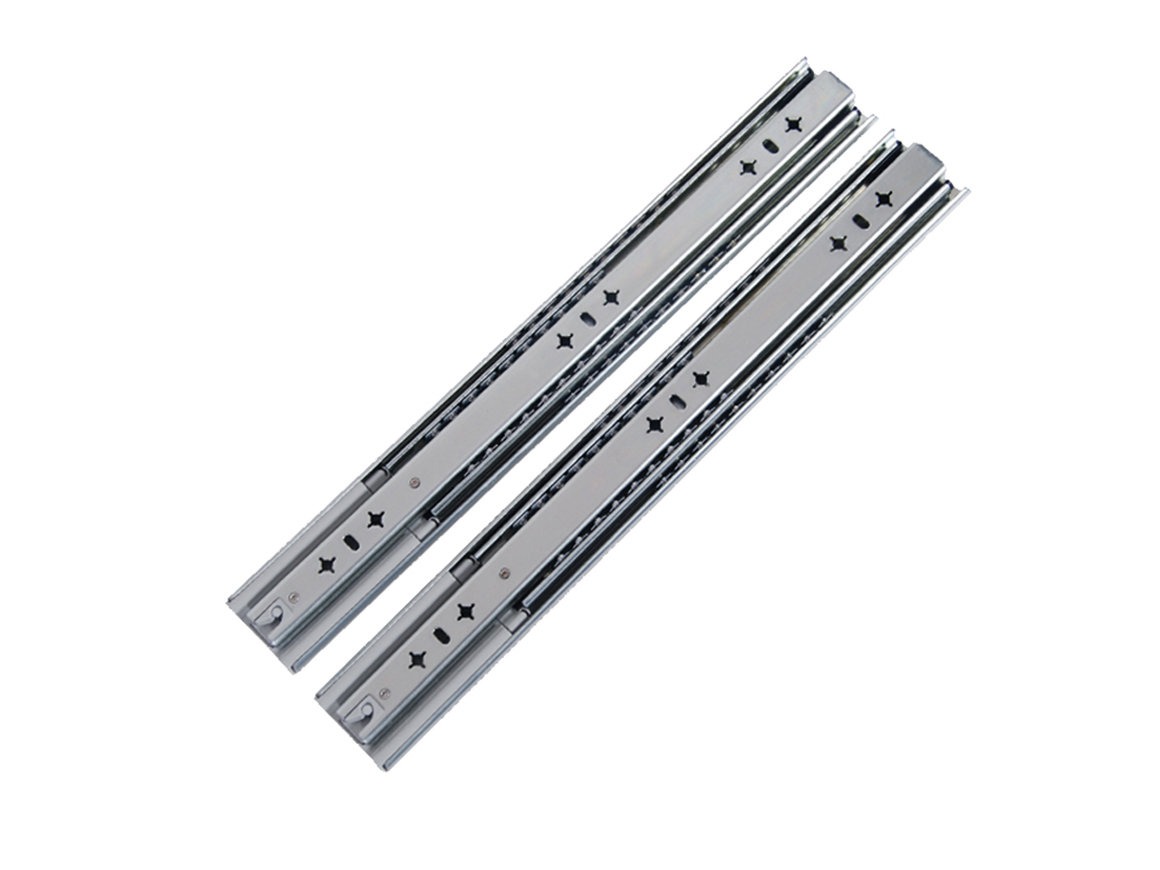

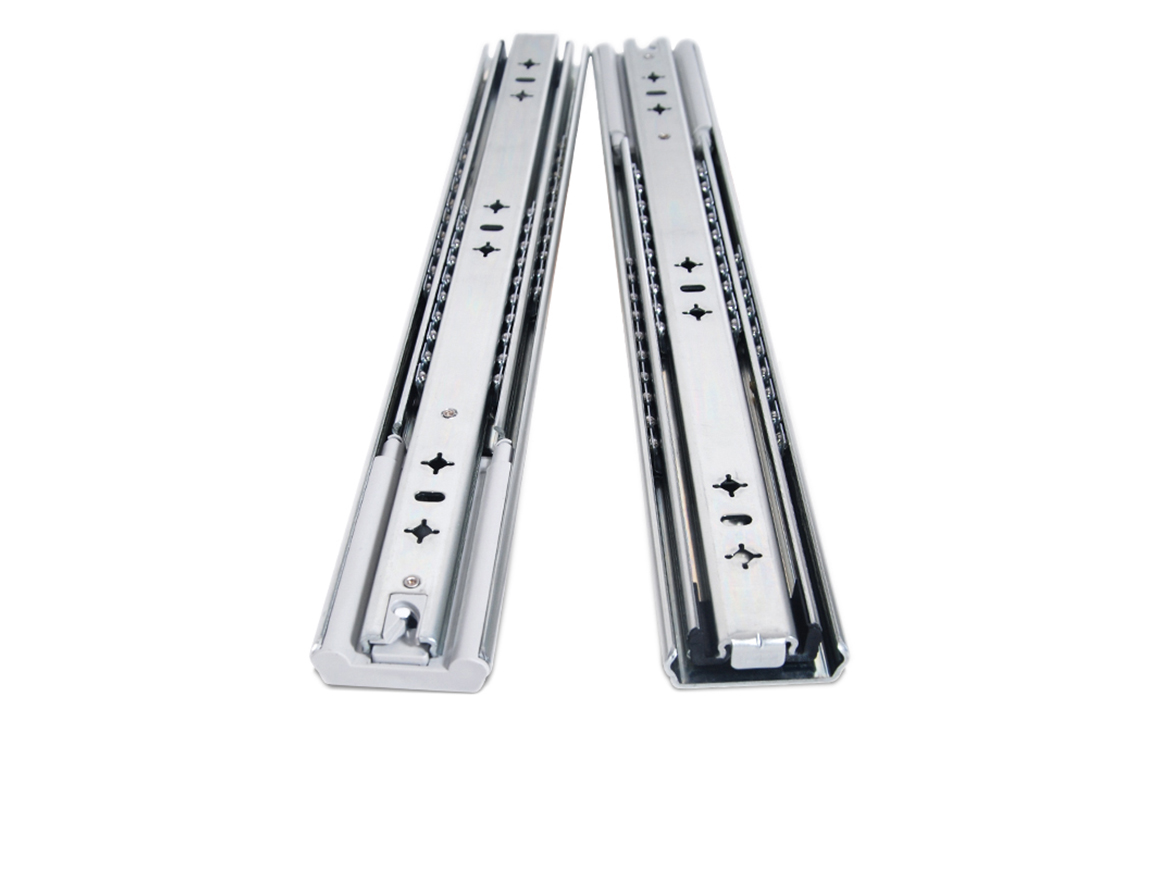

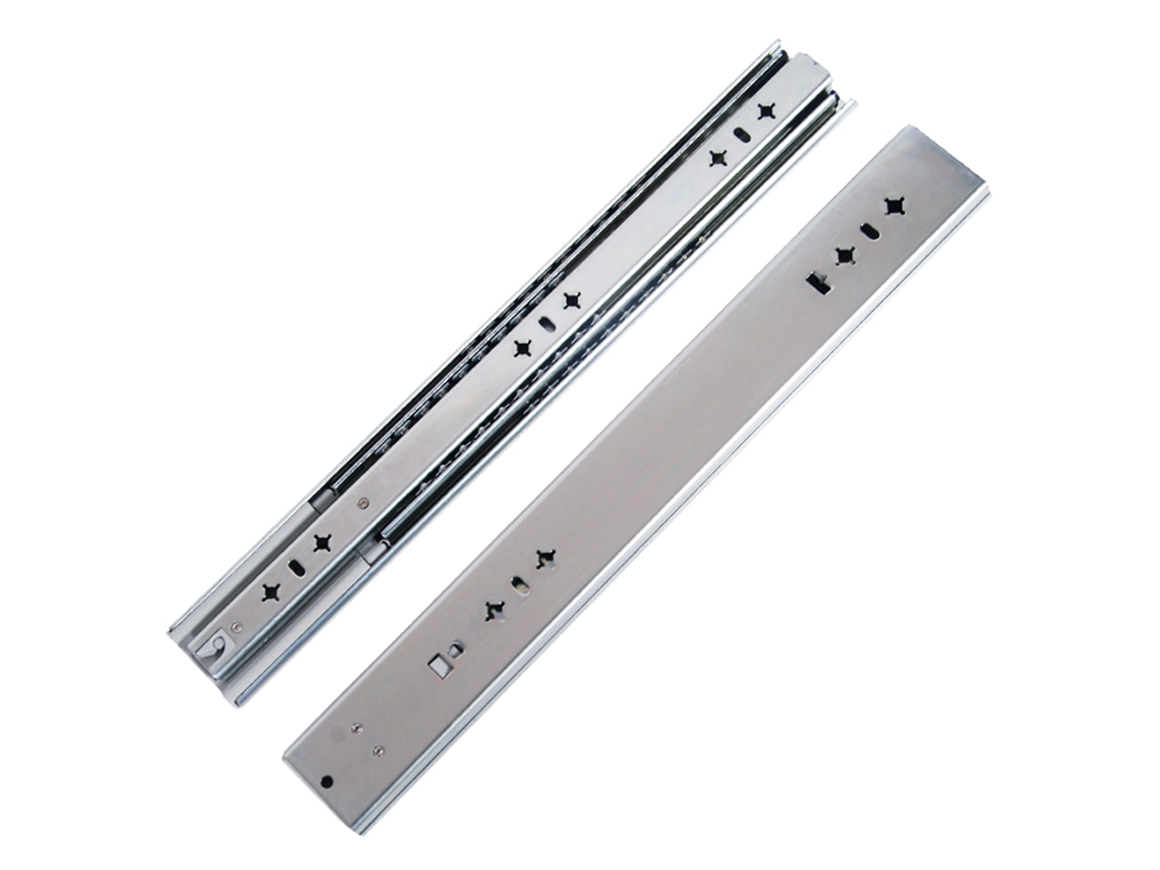

WLT53003 SOFT CLOSE FULL EXTENSION HEAVY-DUTY DRAWER SLIDES

53MM 80kgs/175lbs load rate soft close heavy duty cabinet rails toolbox runners tracks glides

Specifications

Heavy Duty Drawer Slides 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 Inch 175 lb Load Capacity Side Mount Full Extension Ball Bearing Cabinet Rails Tool Box Runners Tracks Glides

FEATURES

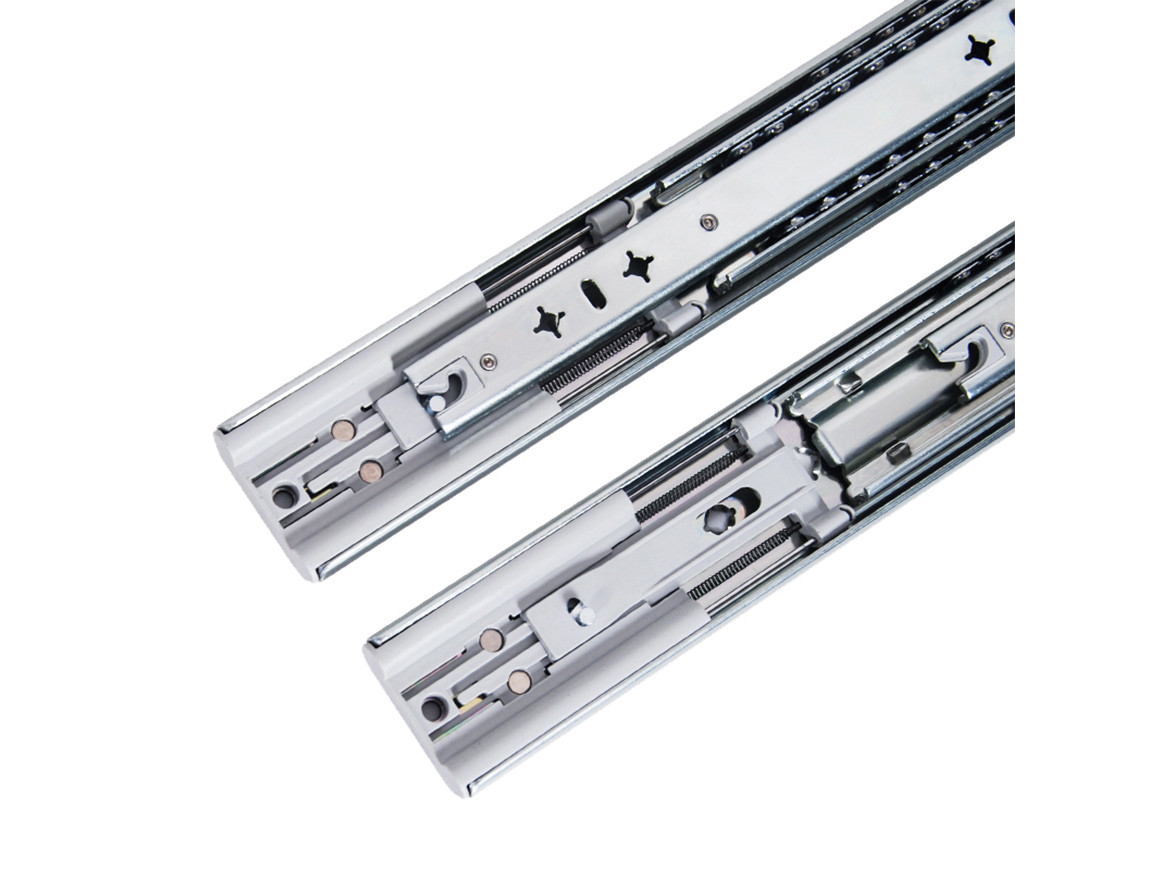

– Customized length and mounting holes or Bayonet-mounting – Soft Close Full Extension

APPLICATIONS
– Wood residential furniture and commercial bank ATM machine, copying machines, printers, tool boxes etc.
– High-Load Wooden and Steel Drawers, Or Drawers requiring High Load Feature

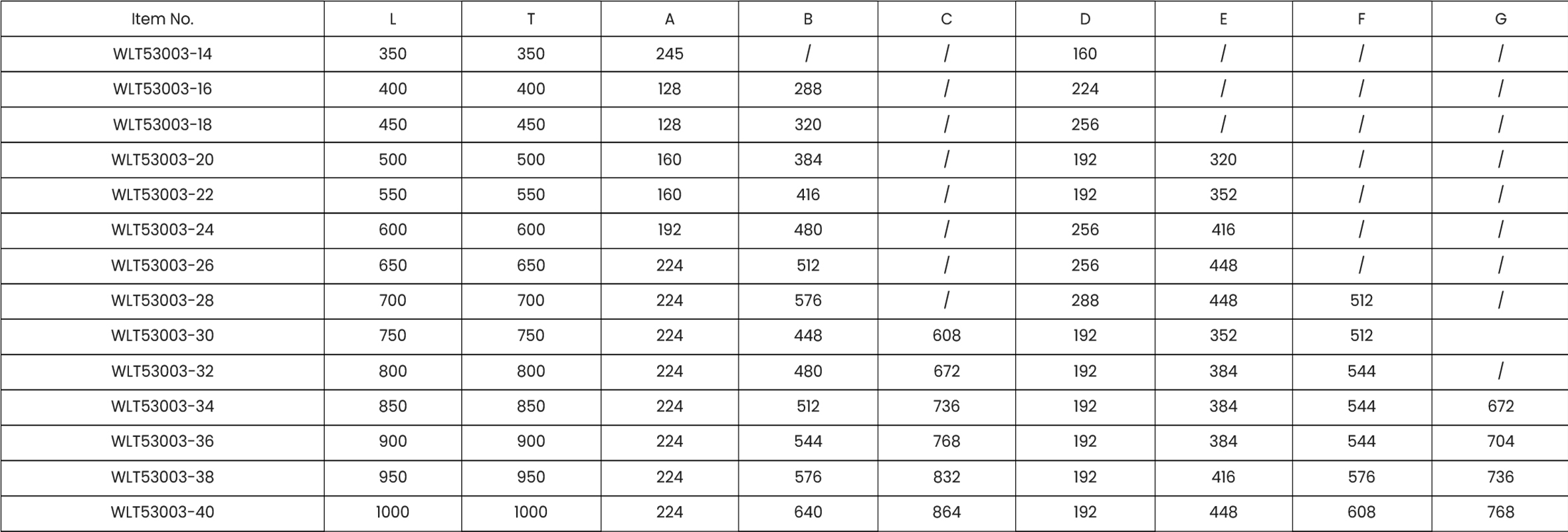

SPECIFICATIONS
– Length:10”-40”
– Module: NON Soft-Close
– Mounting: Side Mount

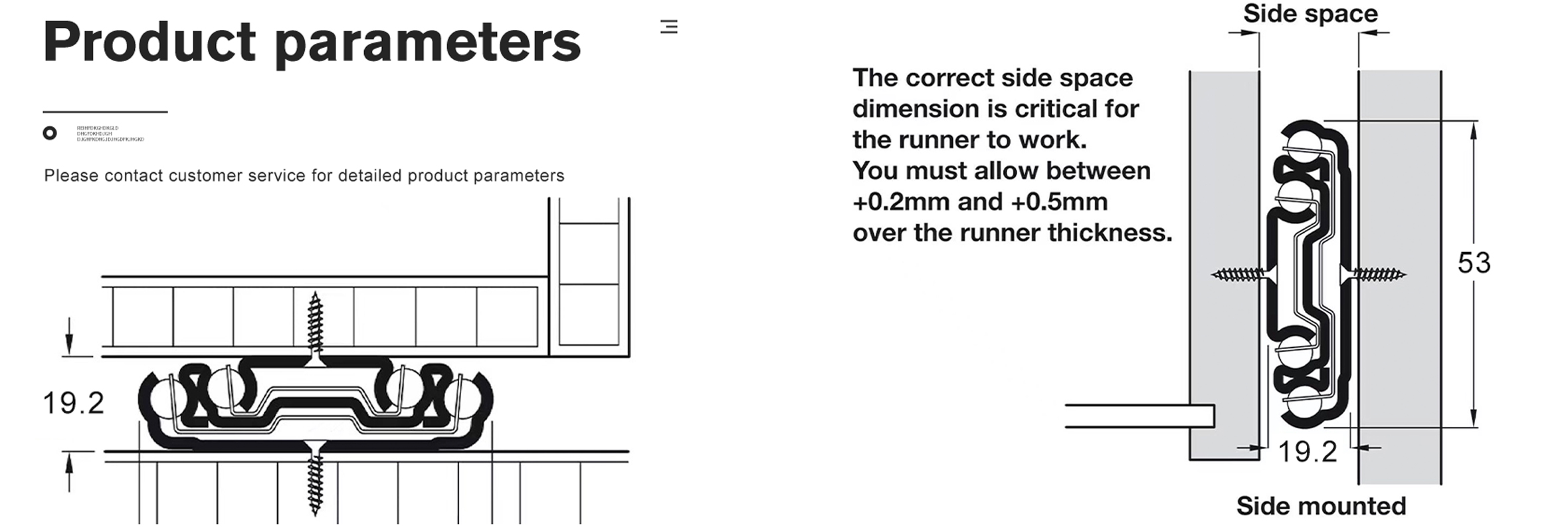

– Mounting Clearance: 19.0mm (+0.5mm -0.5mm)

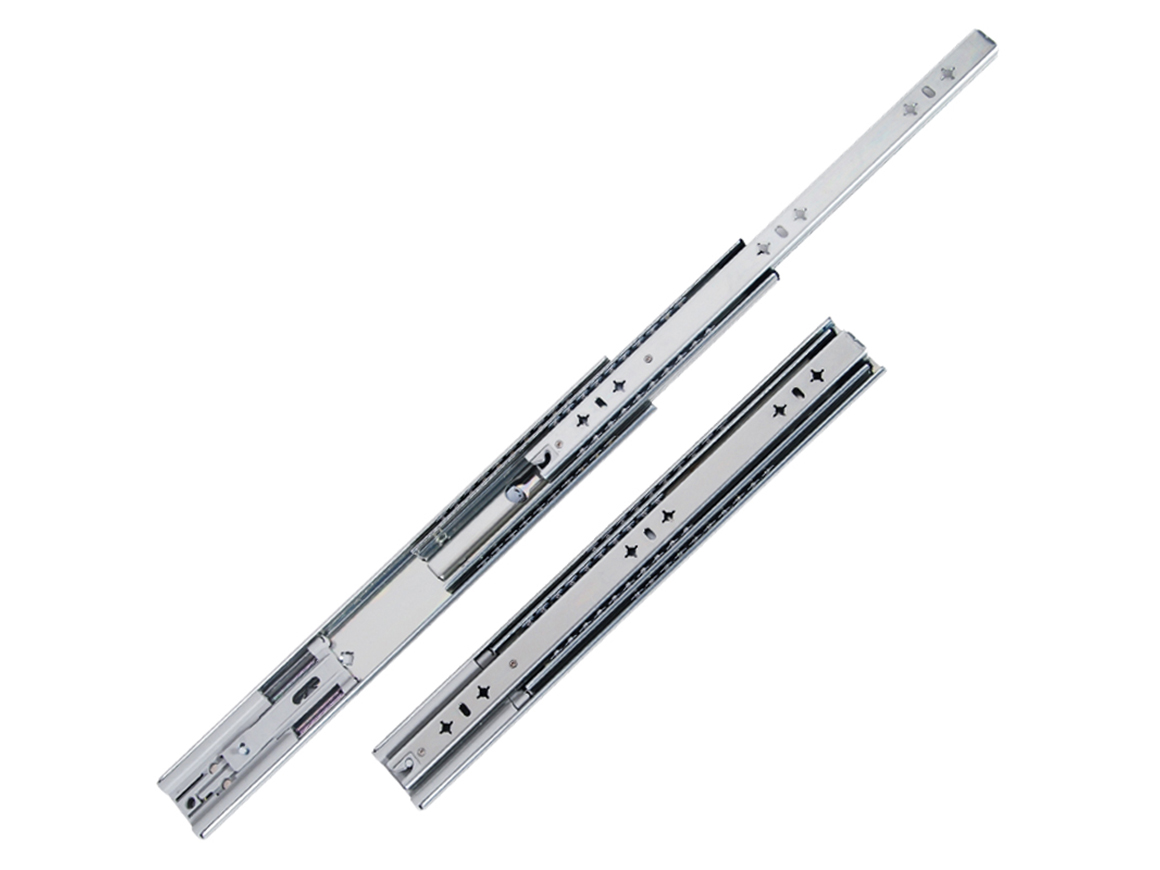

– Travel:Full Extension (3-Fold)
– Disconnect: Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (2.0mm/2.0mm/2.0mm)

RATING
– Load: 80kgs/175lbs.
– Compliance ANSI performance standards as established by BIF
MA, BHMA and KCMA
