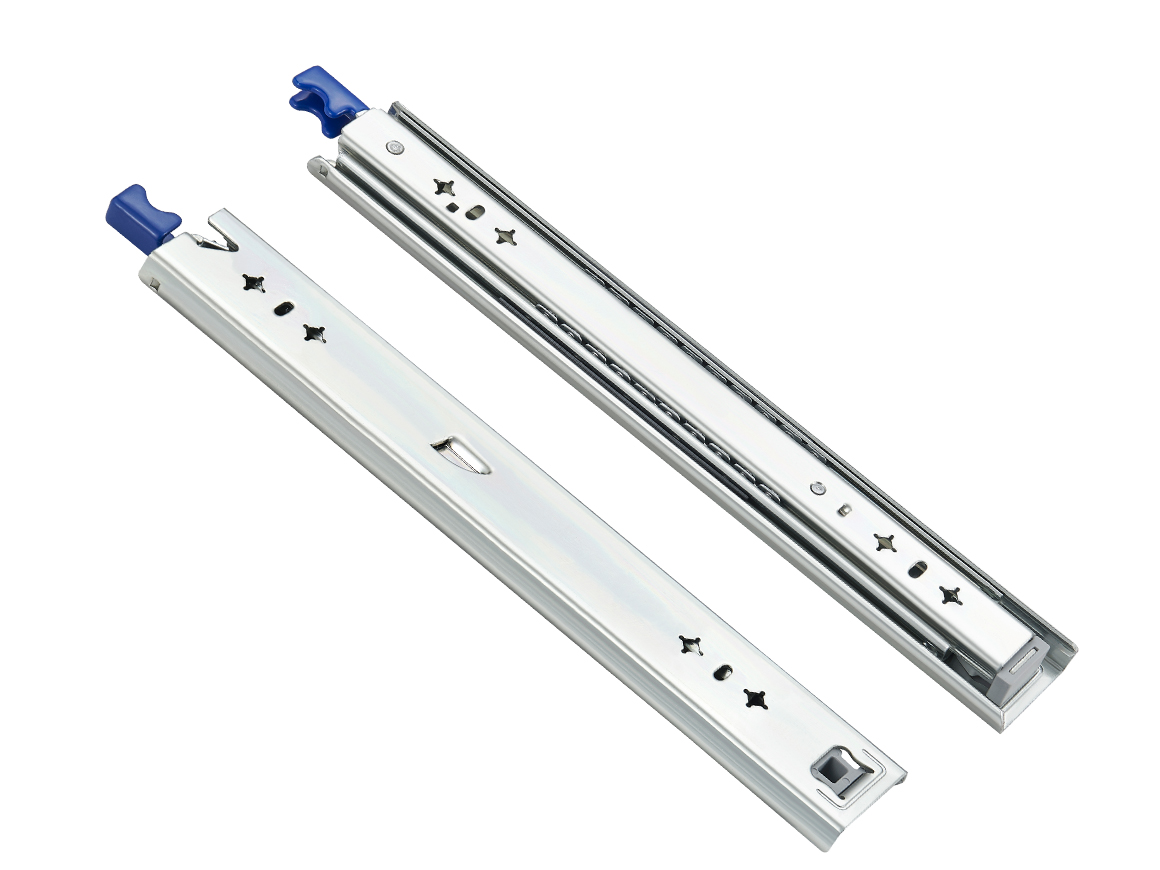

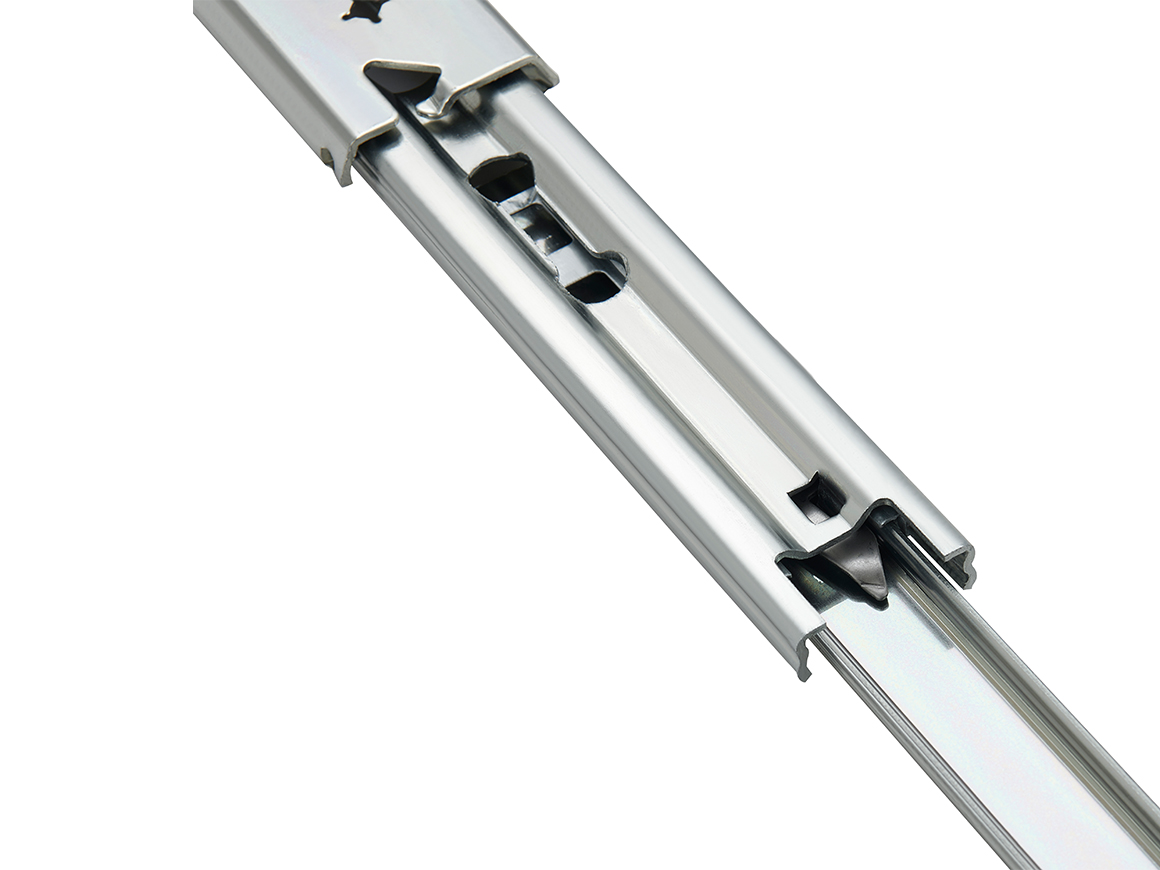

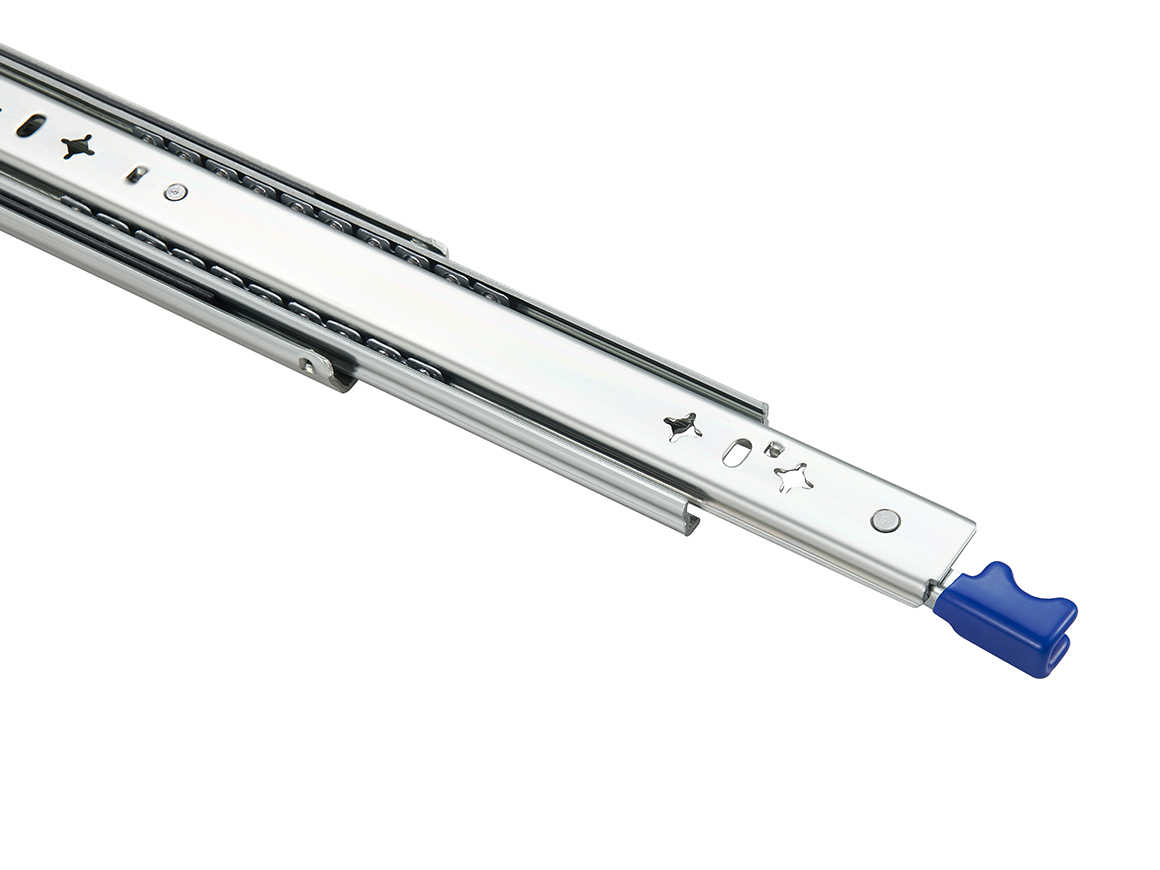

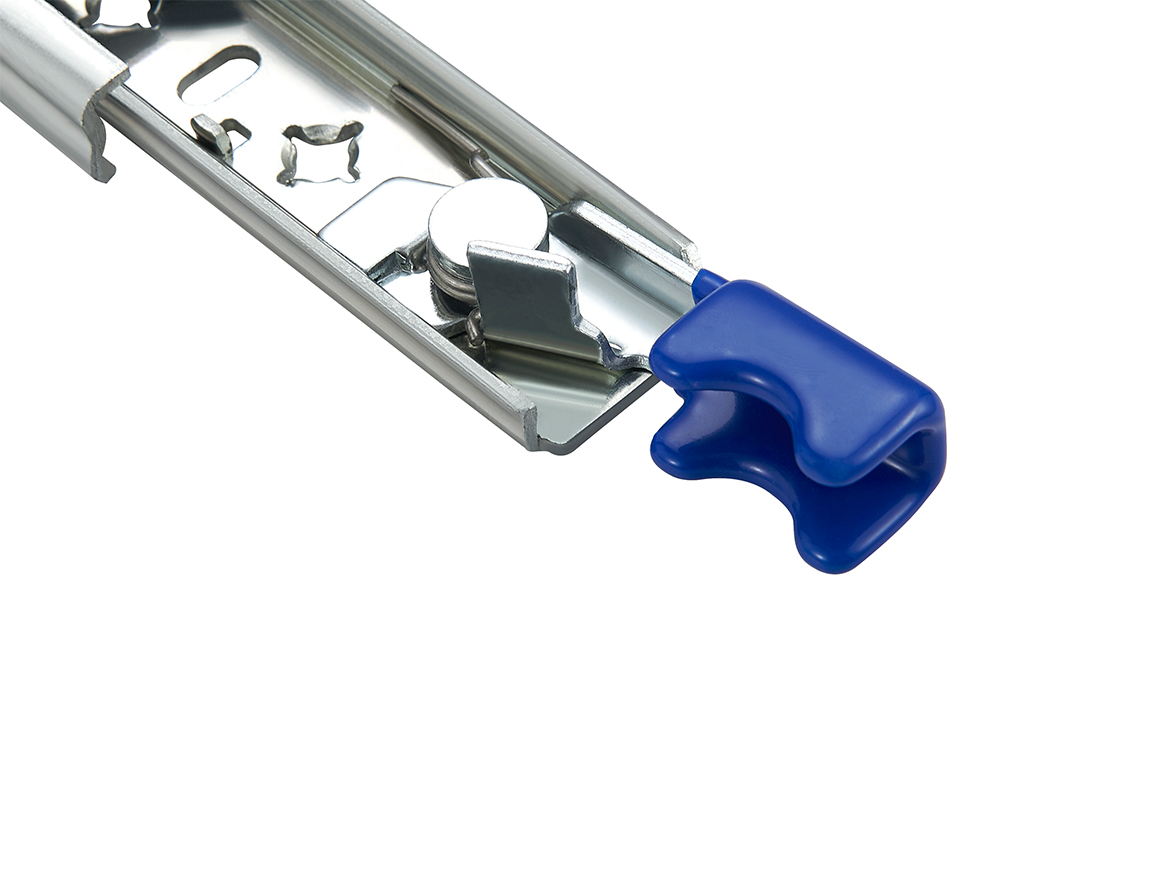

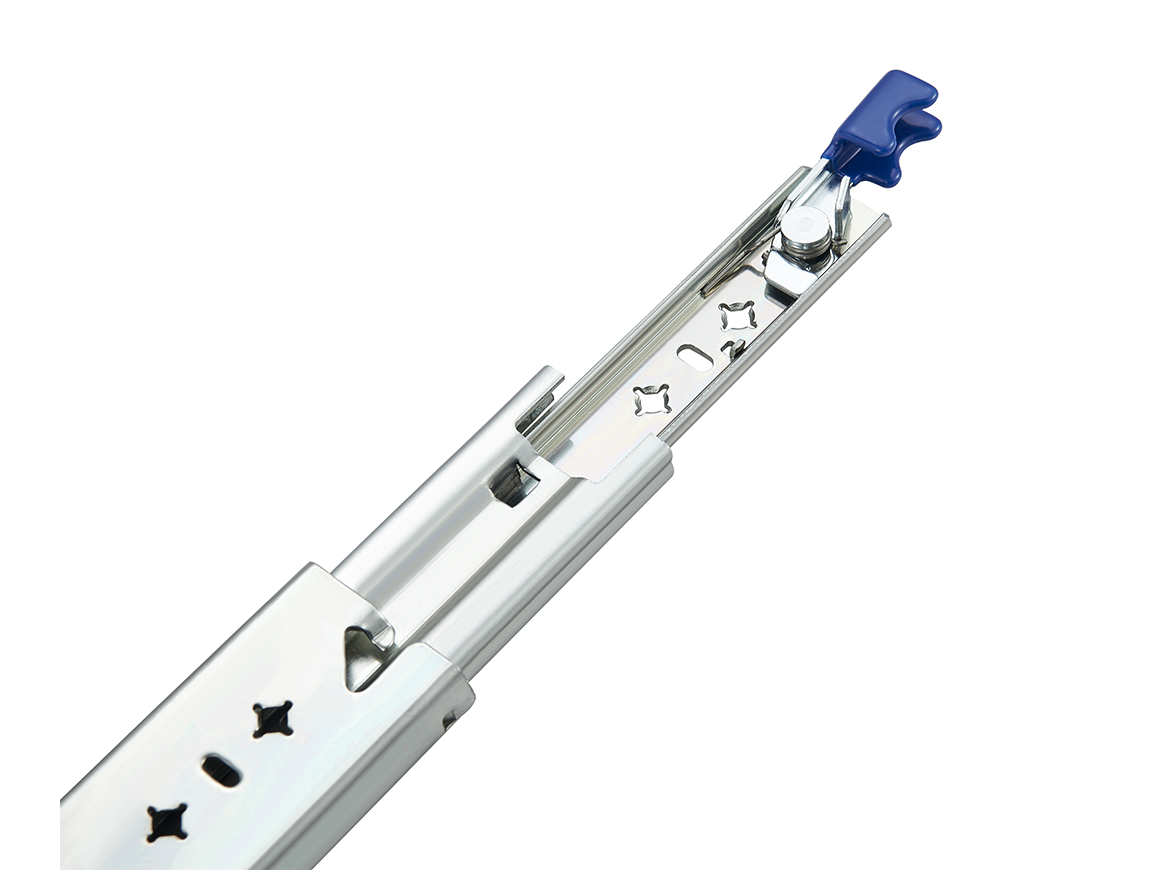

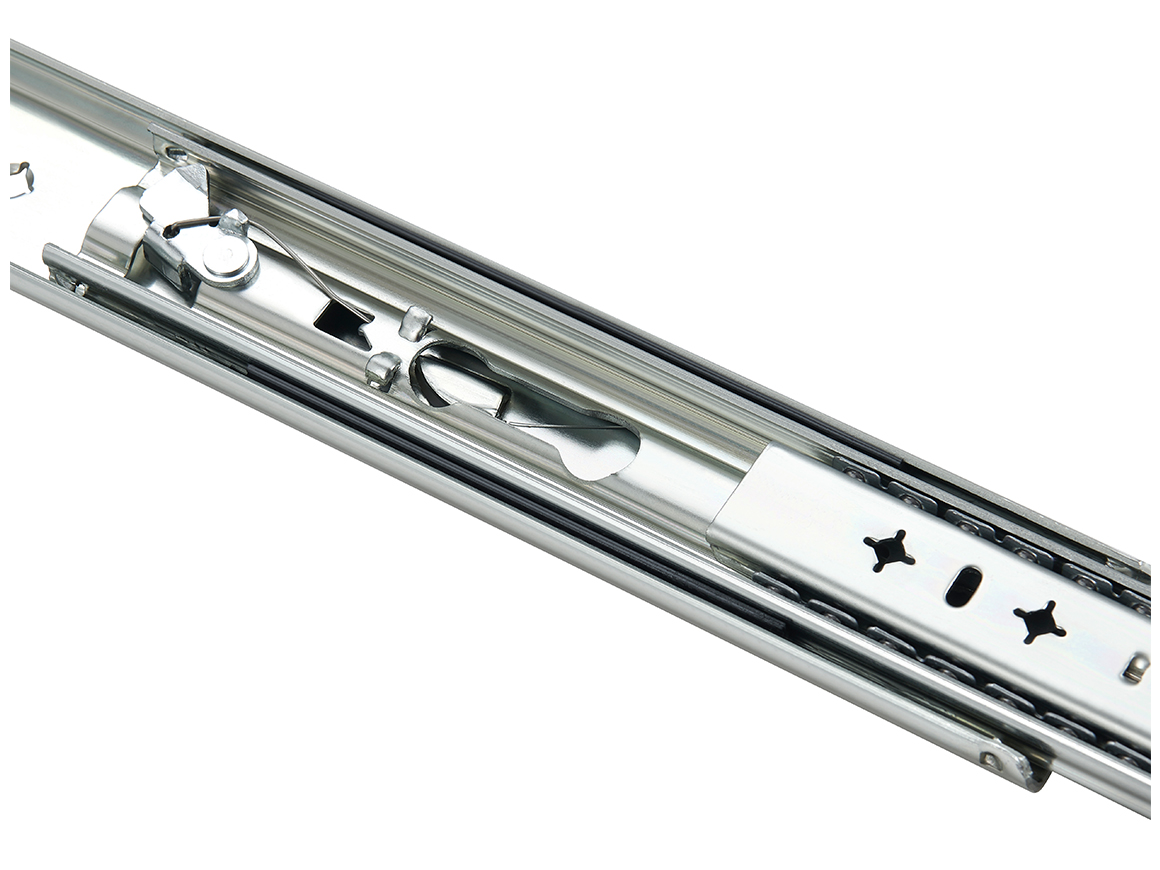

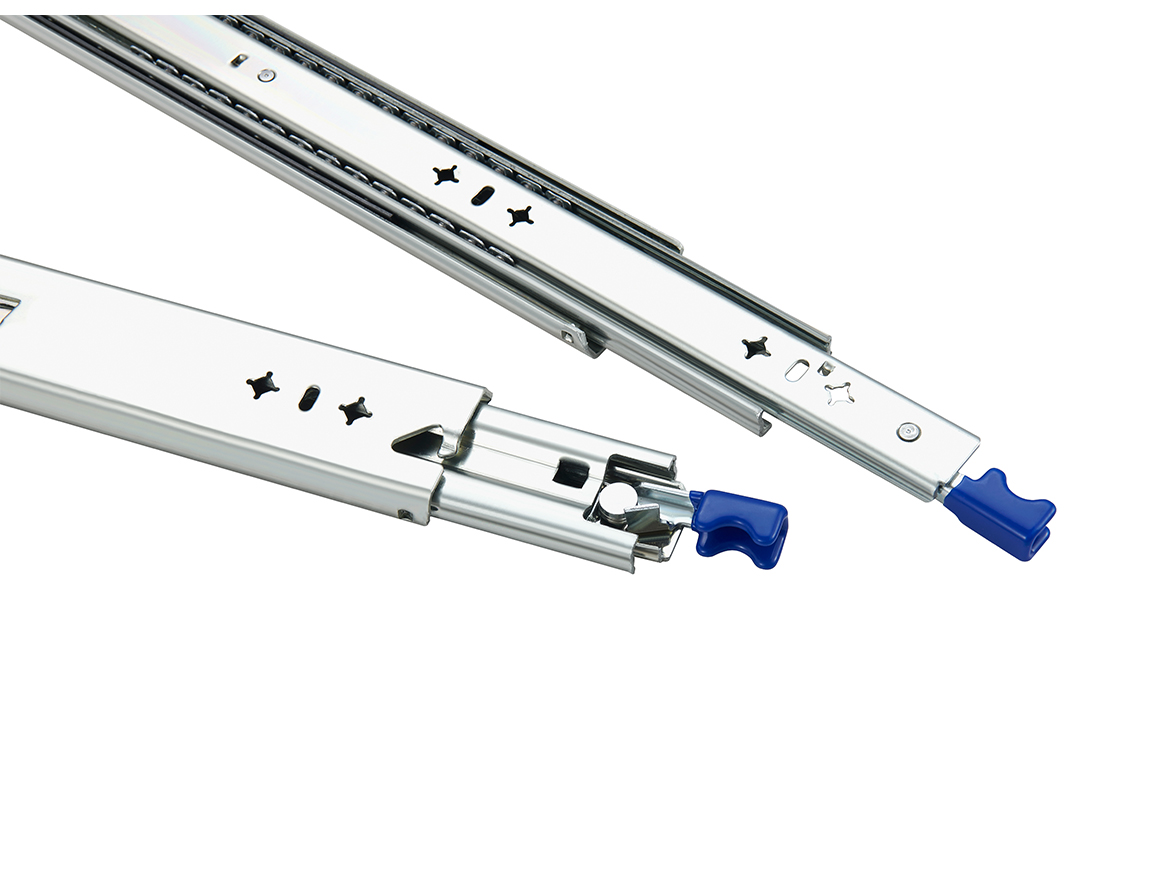

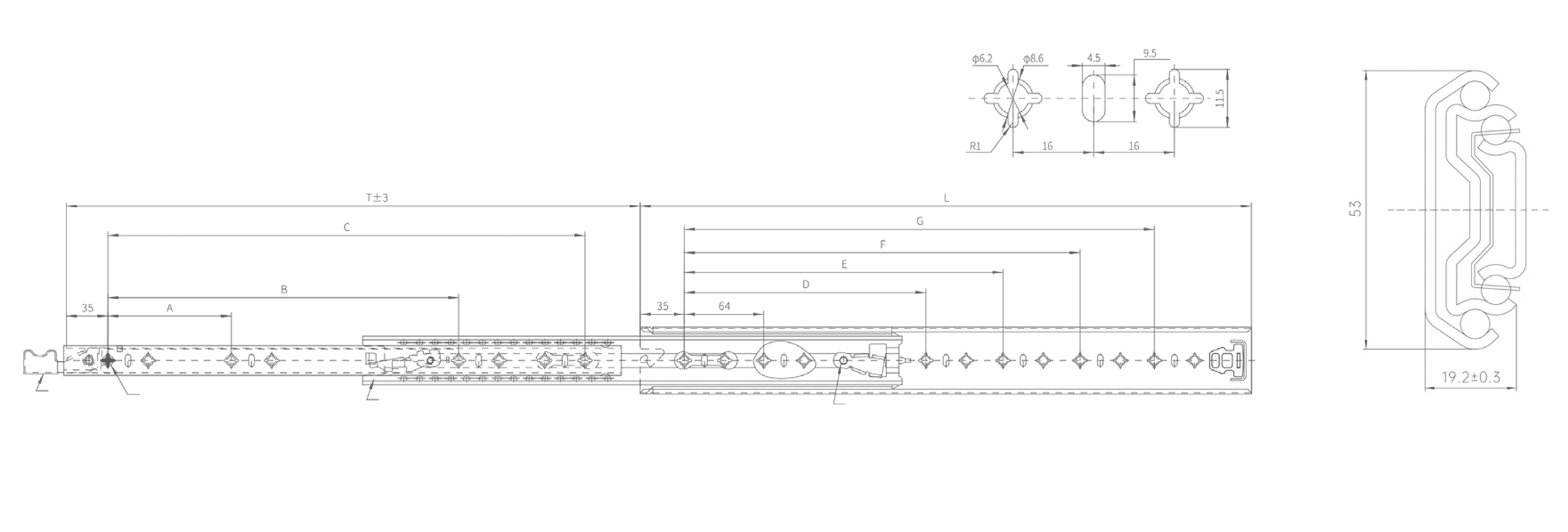

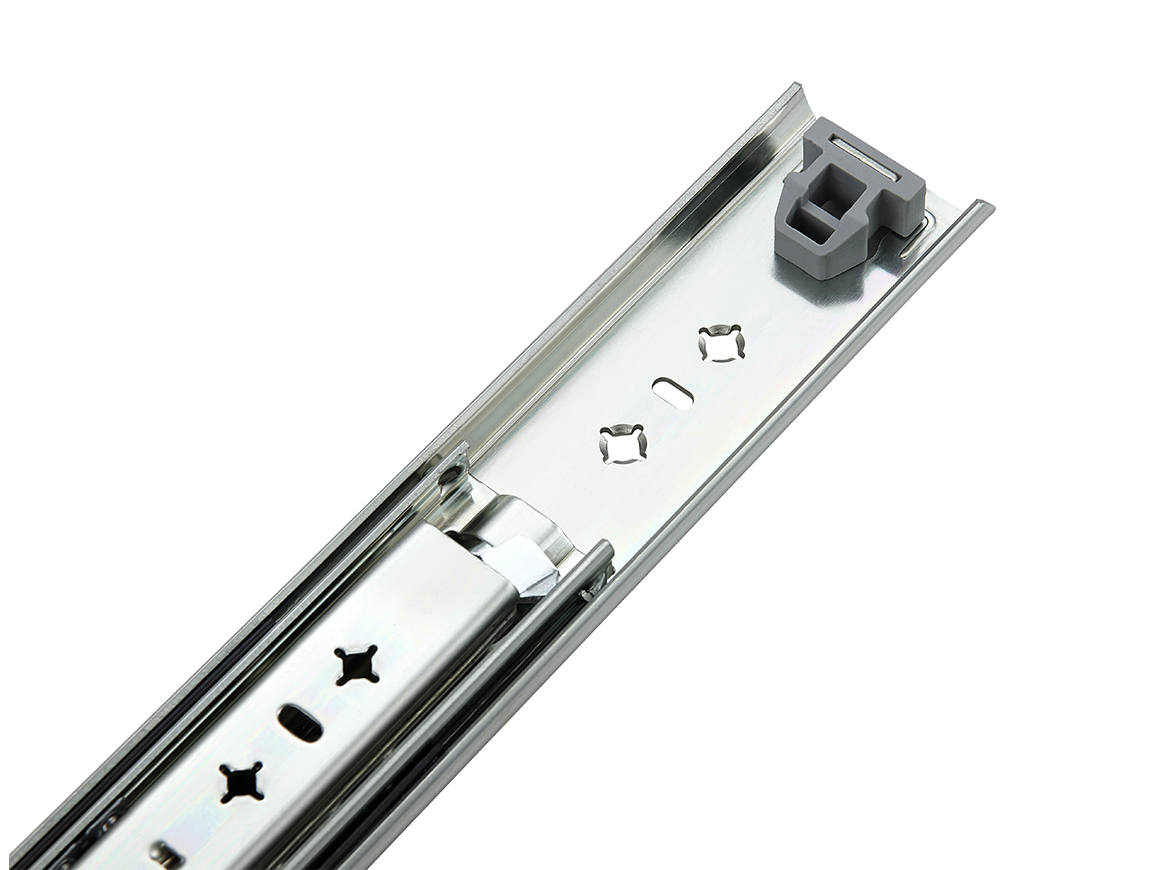

WLT53002-1 FULL EXTENSION HEAVY-DUTY DRAWER SLIDES WITH LOCK

53mm Blue Handle Lock-in Lock-out Vehicle-mounted 255LBS load Slide Rails

Specifications

FEATURES
– Customized length and mounting holes or Bayonet-mounting – Lock-in Lock-out

APPLICATIONS
– Vehicle-mounted tool boxes and commercial bank ATM machine, copying machines, printers etc.
– High-Load Wooden and Steel Drawers, Or Drawers requiring High Load Feature

SPECIFICATIONS

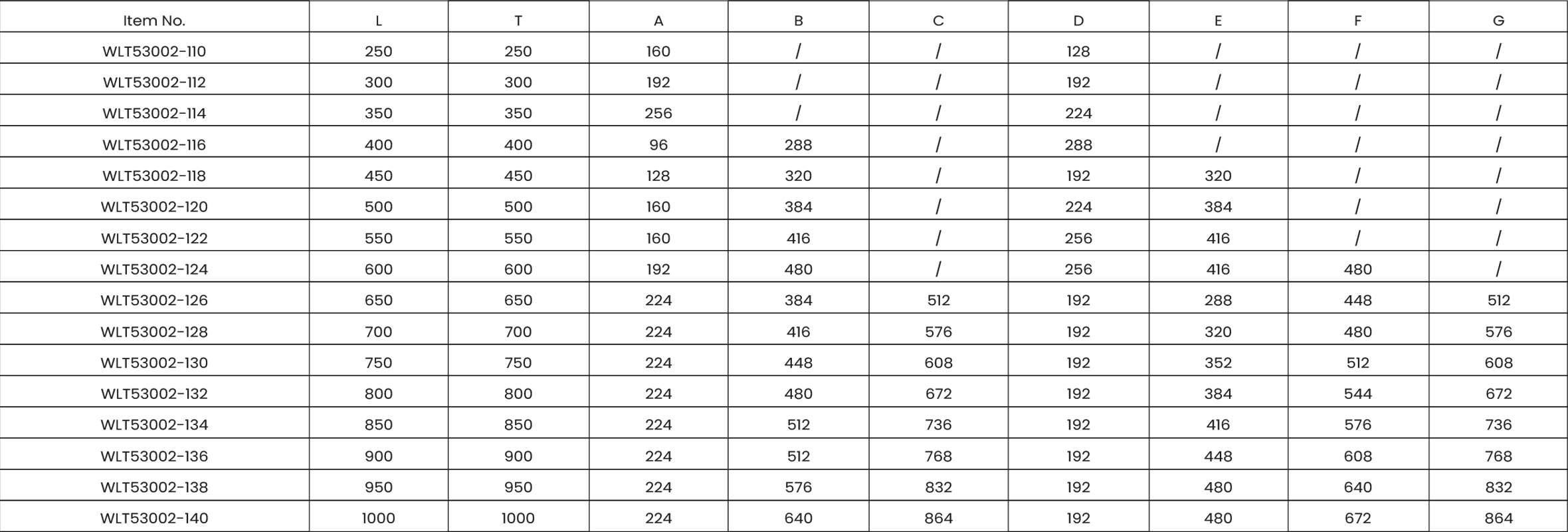

– Length:10”-60”
– Module: Lock-in Lock-out NON Soft-Close
– Mounting: Side Mount
– Mounting Clearance: 19.0mm (+0.5mm -0.5mm)
– Travel:Full Extension (3-Fold)
– Disconnect: NON Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (2.0mm/2.0mm/2.0mm)

RATING
– Load: 115kgs/255lbs.
– Compliance ANSI performance standards as established by BIF
MA, BHMA and KCMA
