WLT53001 FULL EXTENSION HEAVY-DUTY DRAWER SLIDES

53MM 120kgs/265lbs Load Rate Drawer Slide Rails 19mm thickness

Specifications

FEATURES
– Customized length and mounting holes or Bayonet-mounting – Detachable to easy installation

APPLICATIONS
– Wood residential furniture and commercial bank ATM machine, copying machines, printers, tool boxes etc.
– High-Load Wooden and Steel Drawers, Or Drawers requiring High Load Feature

SPECIFICATIONS
– Length:10”-60”
– Module: NON Soft-Close
– Mounting: Side Mount
– Mounting Clearance: 19.0mm (+0.5mm -0.5mm)
– Travel:Full Extension (3-Fold)
– Disconnect: Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (2.0mm/2.0mm/2.0mm)

RATING
– Load: 120kgs/265lbs.
– Compliance ANSI performance standards as established by BIF
MA, BHMA and KCMA

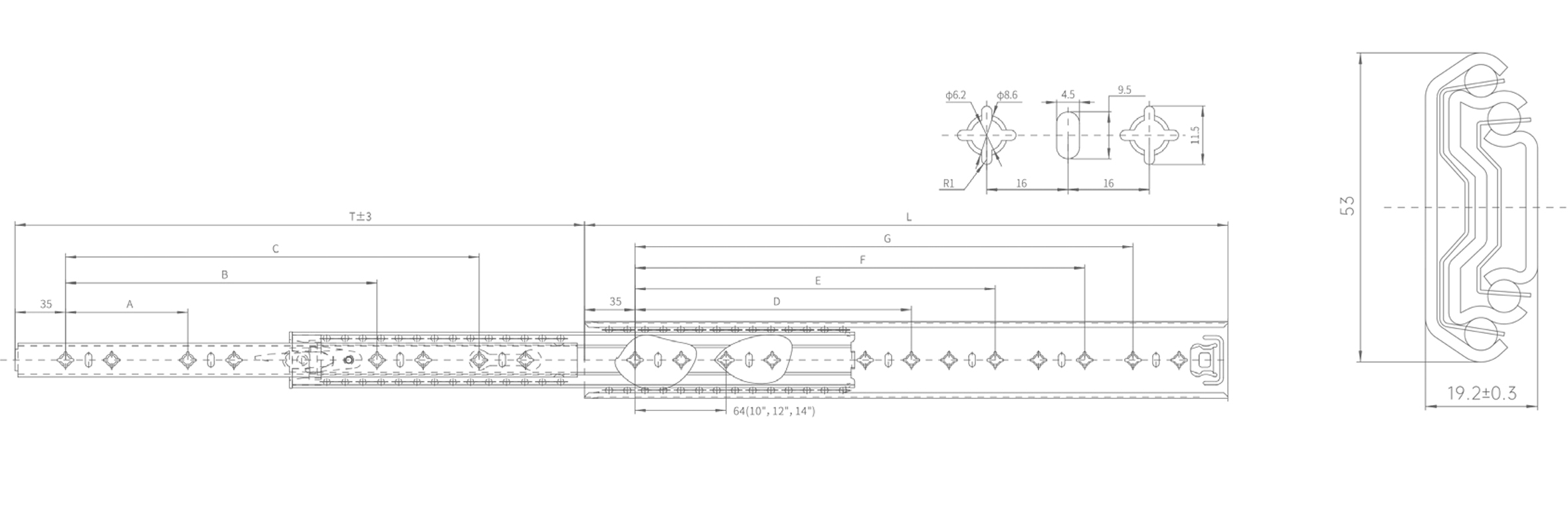

Drawing

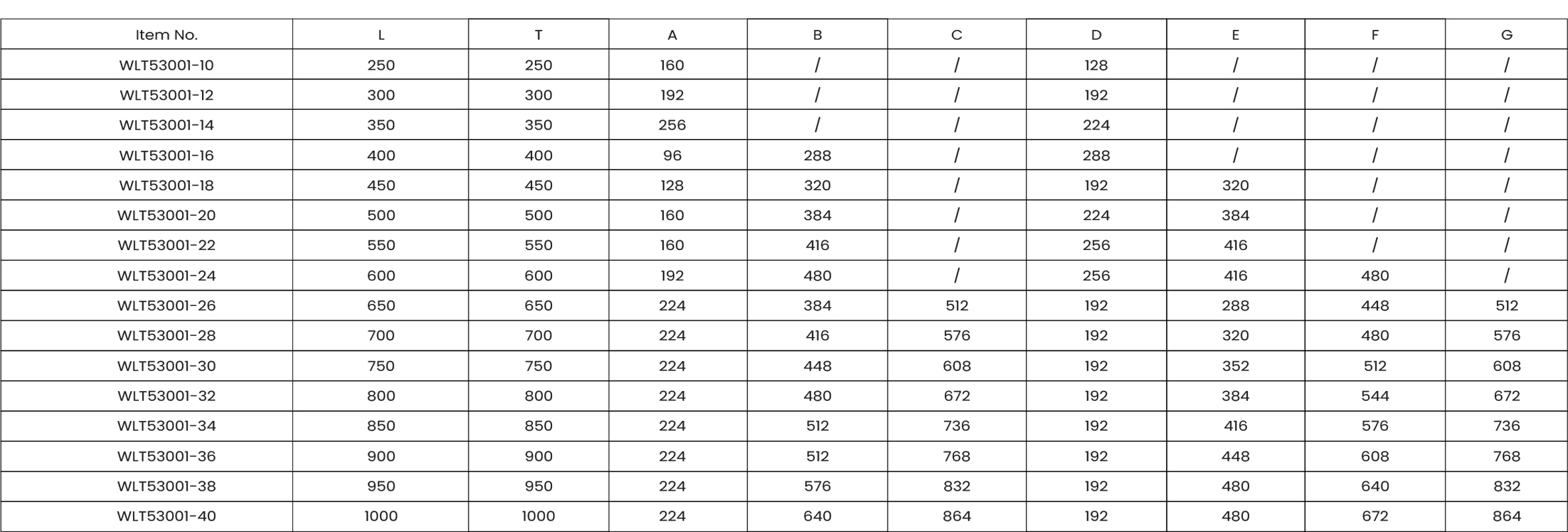

WLT53001 19 012360X800 WLT53001 19 022360X800
