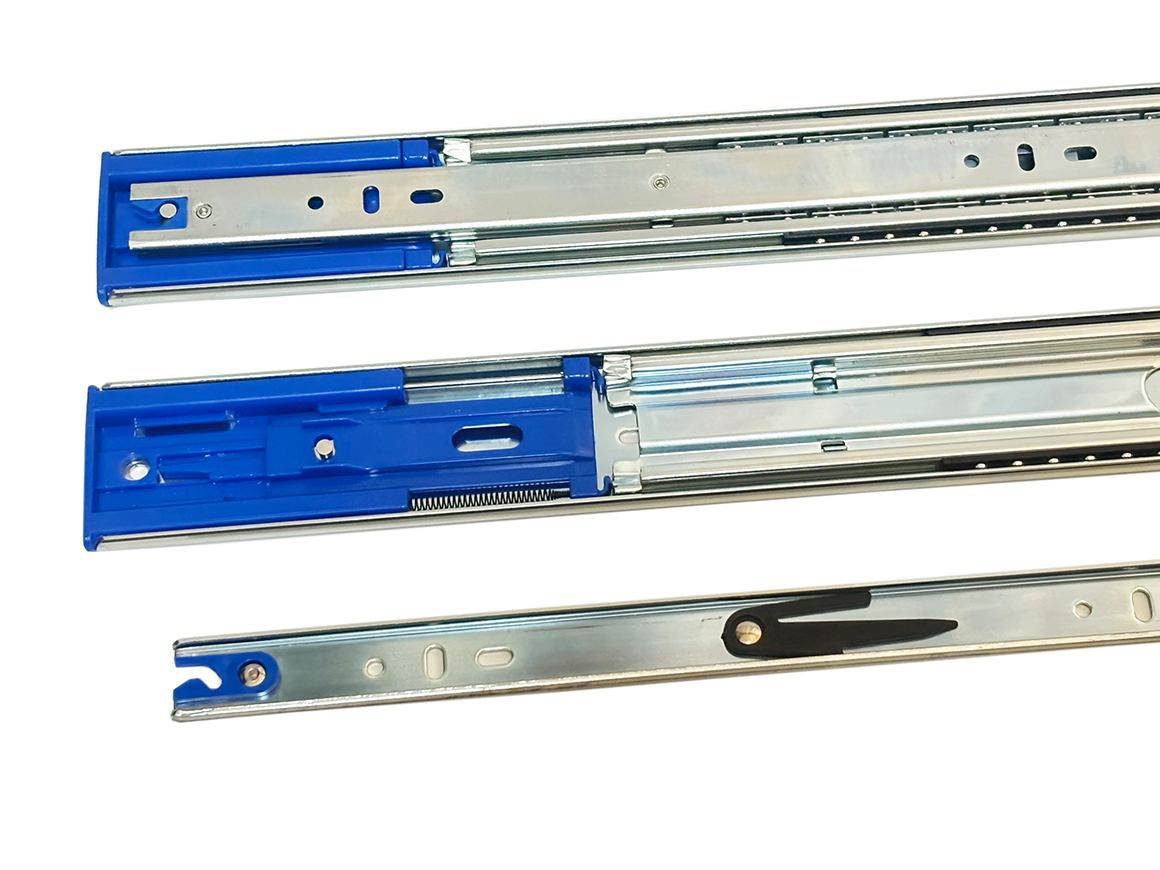

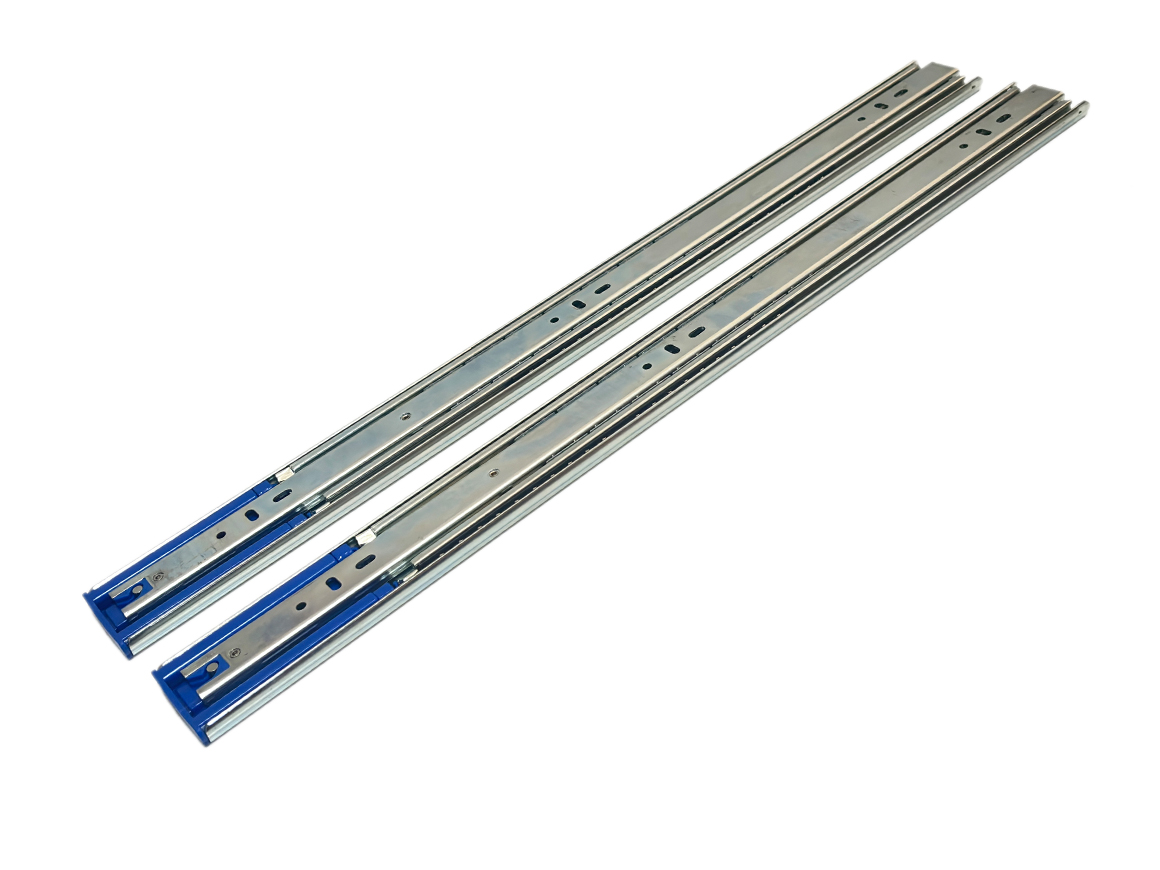

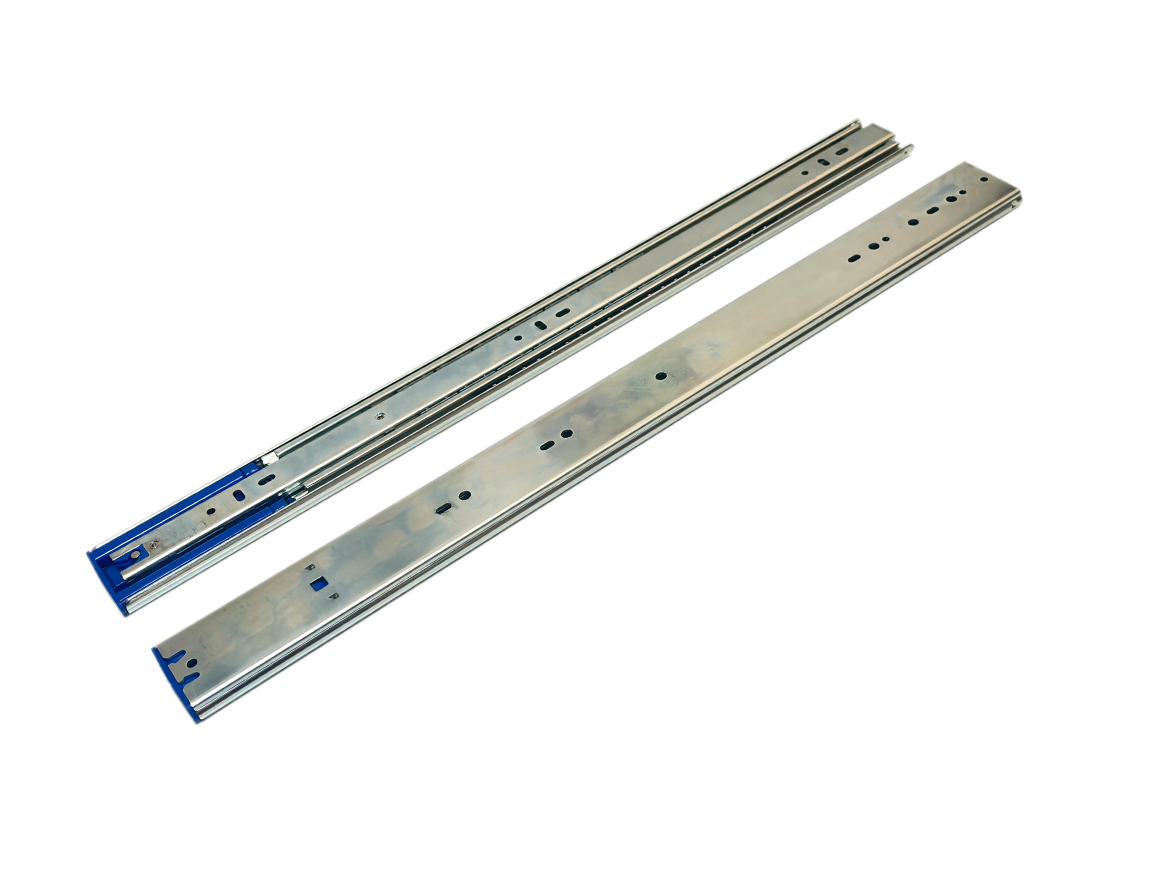

WLT51002 SOFT CLOSE FULL EXTENSION HEAVY-DUTY DRAWER SLIDES

65kgs/145lbs load rating. SOFT-CLOSE, Customized length and mounting holes or Bayonet-mounting

Specifications

FEATURES
– Customized length and mounting holes or Bayonet-mounting – Customized over travel extension
– Soft close full extension

APPLICATIONS
– Wood residential furniture and commercial bank ATM machine, copying machines, printers, tool boxes etc.
– Electronic Industrial Hardware,Medical Healthcare Industry,Com munications Industry Hardware

SPECIFICATIONS

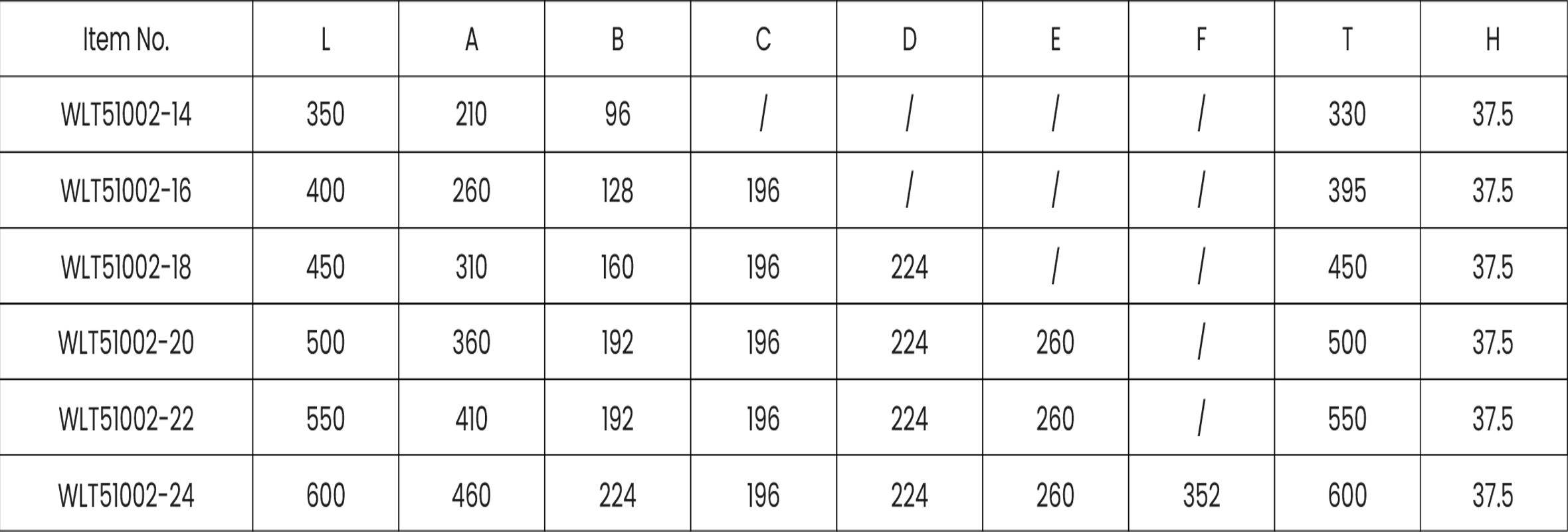

– Length:12”-28”

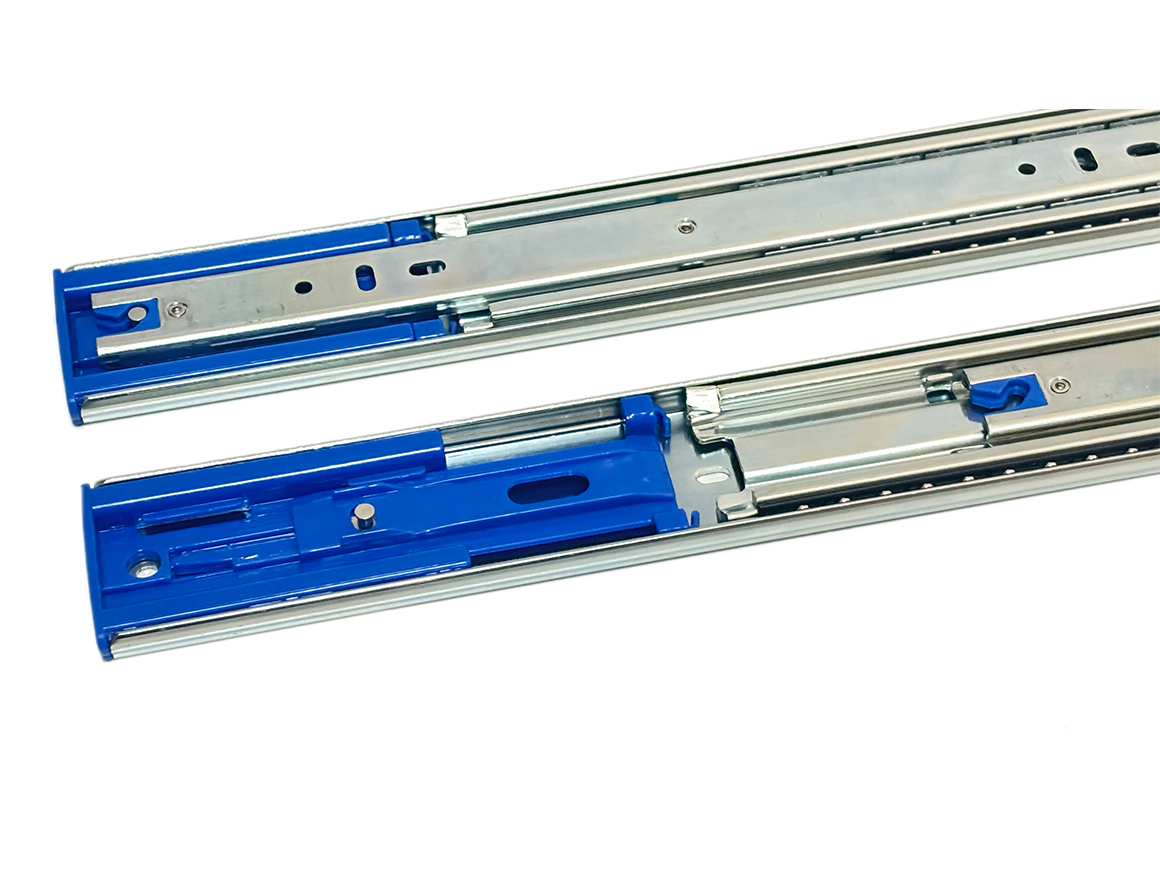

– Module: Soft-Close
– Mounting: Side Mount

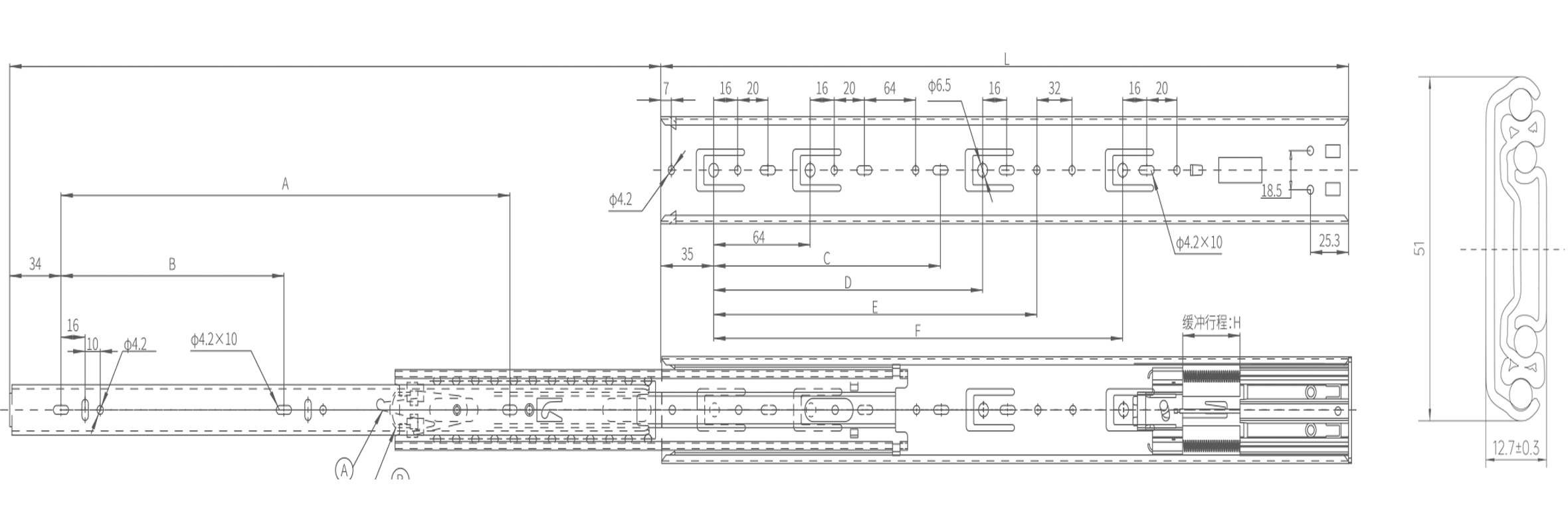

– Mounting Clearance: 12.7mm (+0.5mm -0)
– Travel:Full Extension (3-Fold)

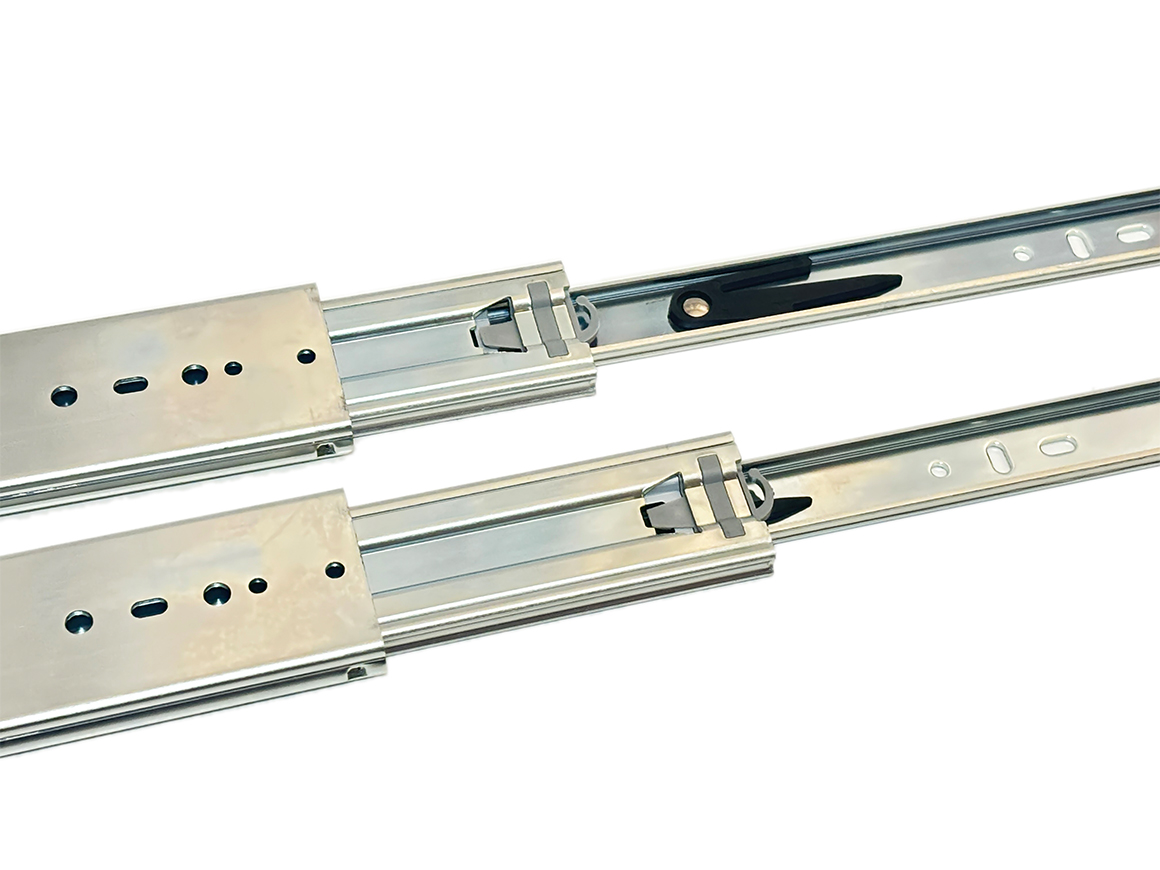

– Disconnect: Lever Disconnect

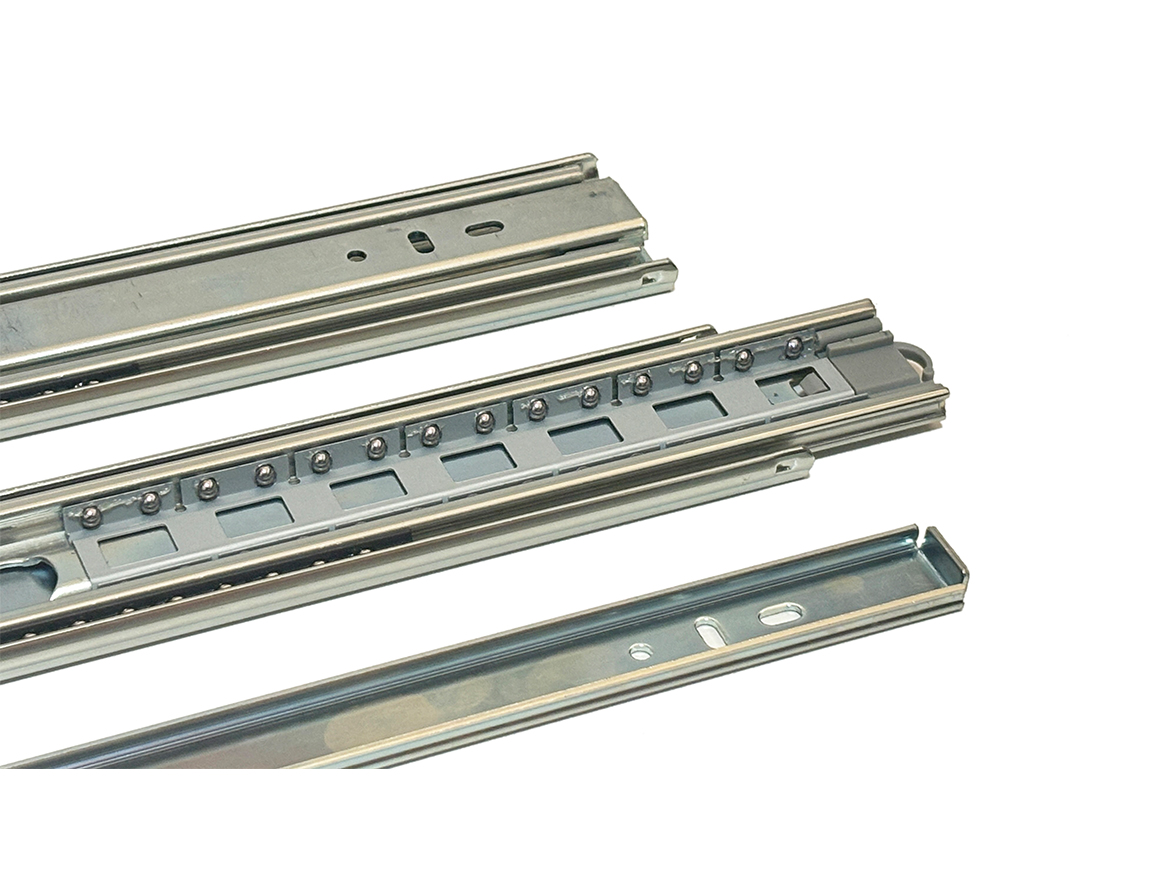

– Type: Steel Ball Bearing
– Finish: Zinc
– Material: Cold-rolled steel (1.6mm/1.5mm/1.8mm)

RATING
– Load: 65kgs/145lbs.
– Compliance ANSI performance standards as established by BIF
MA, BHMA and KCMA
