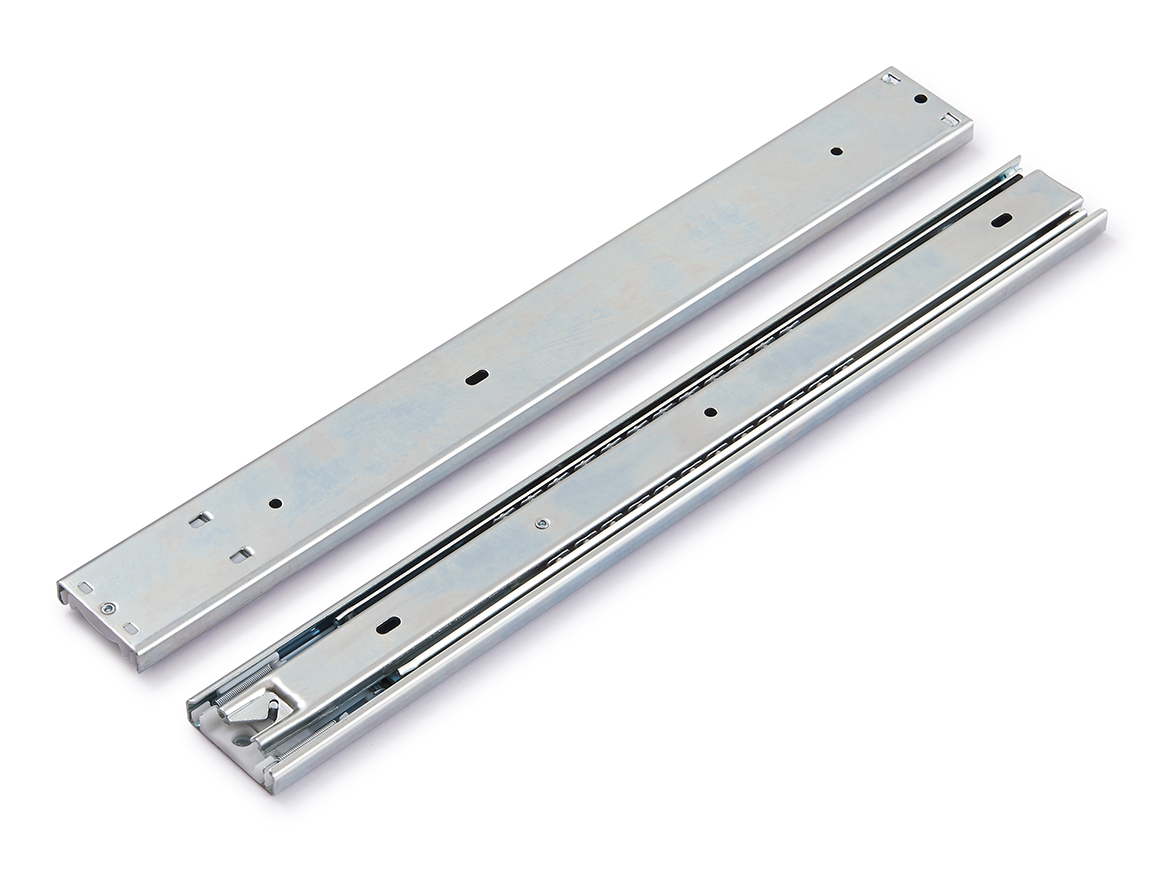

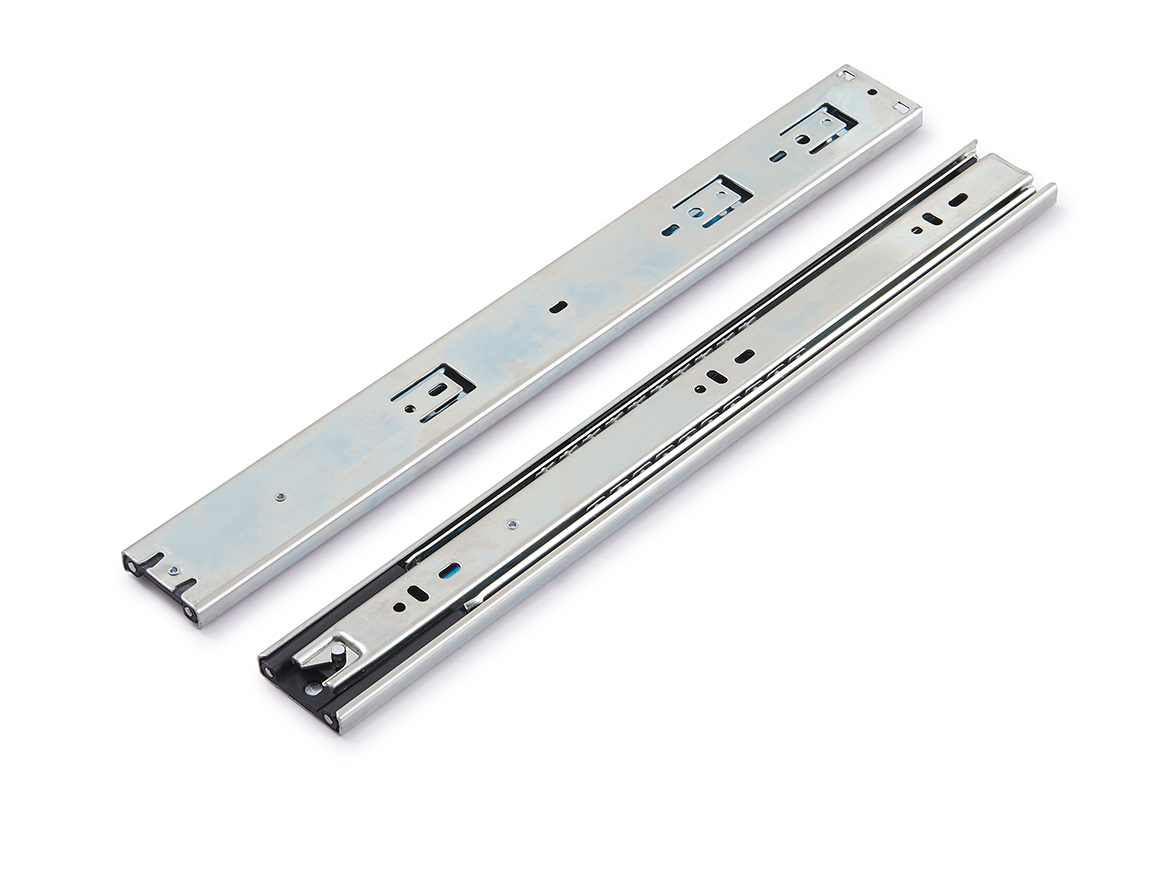

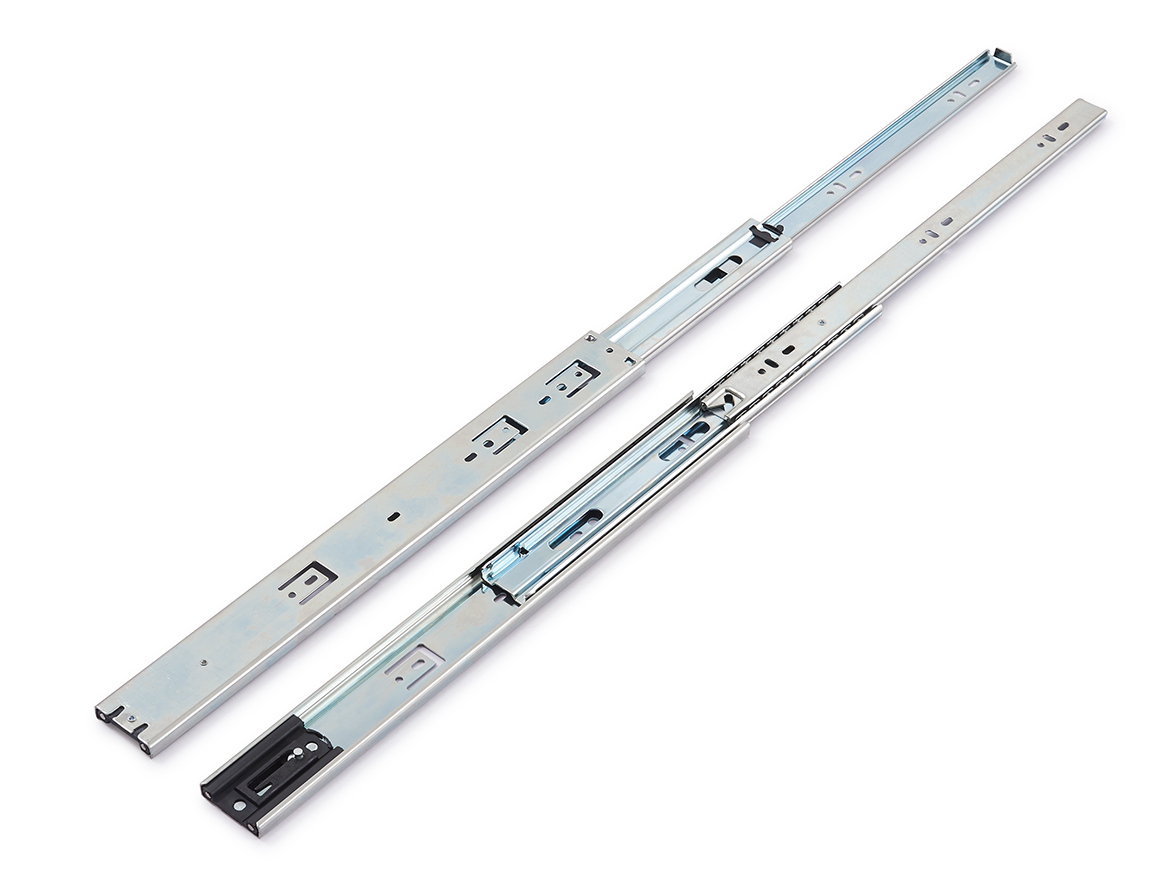

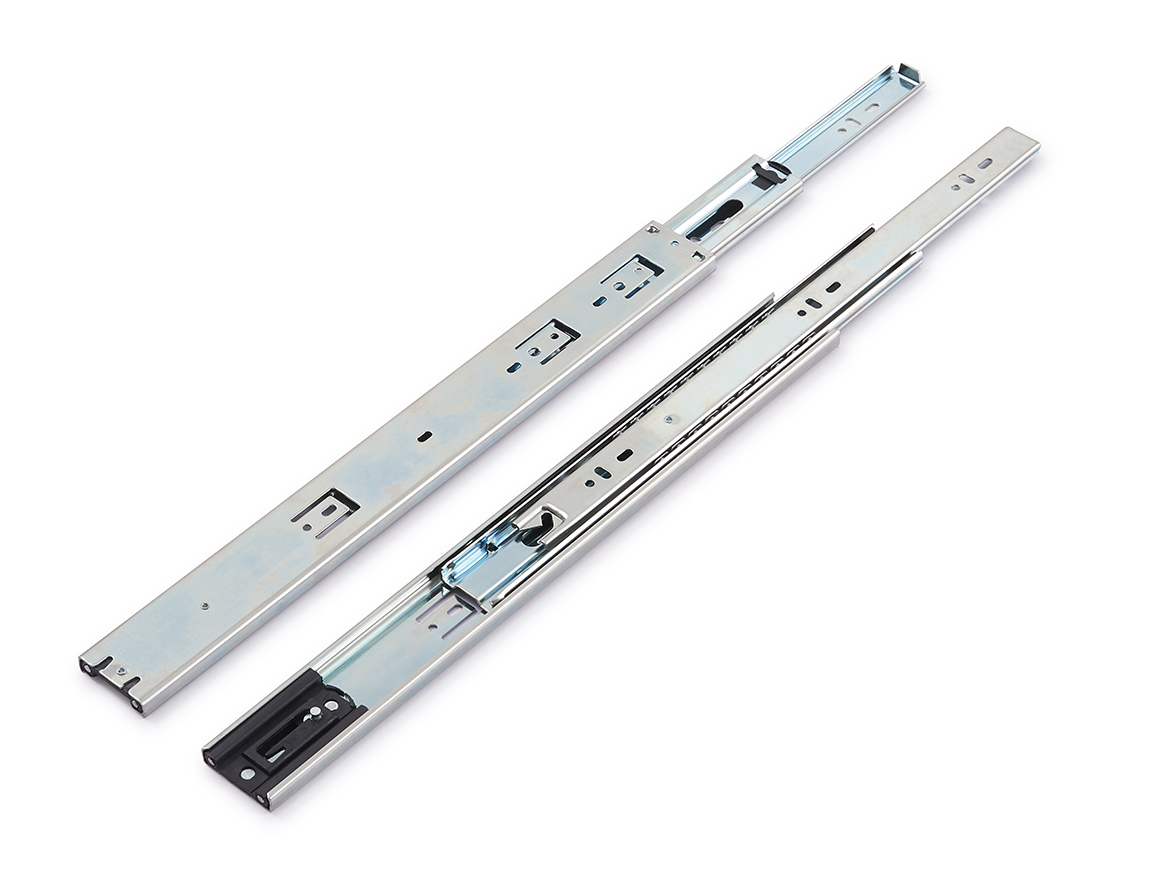

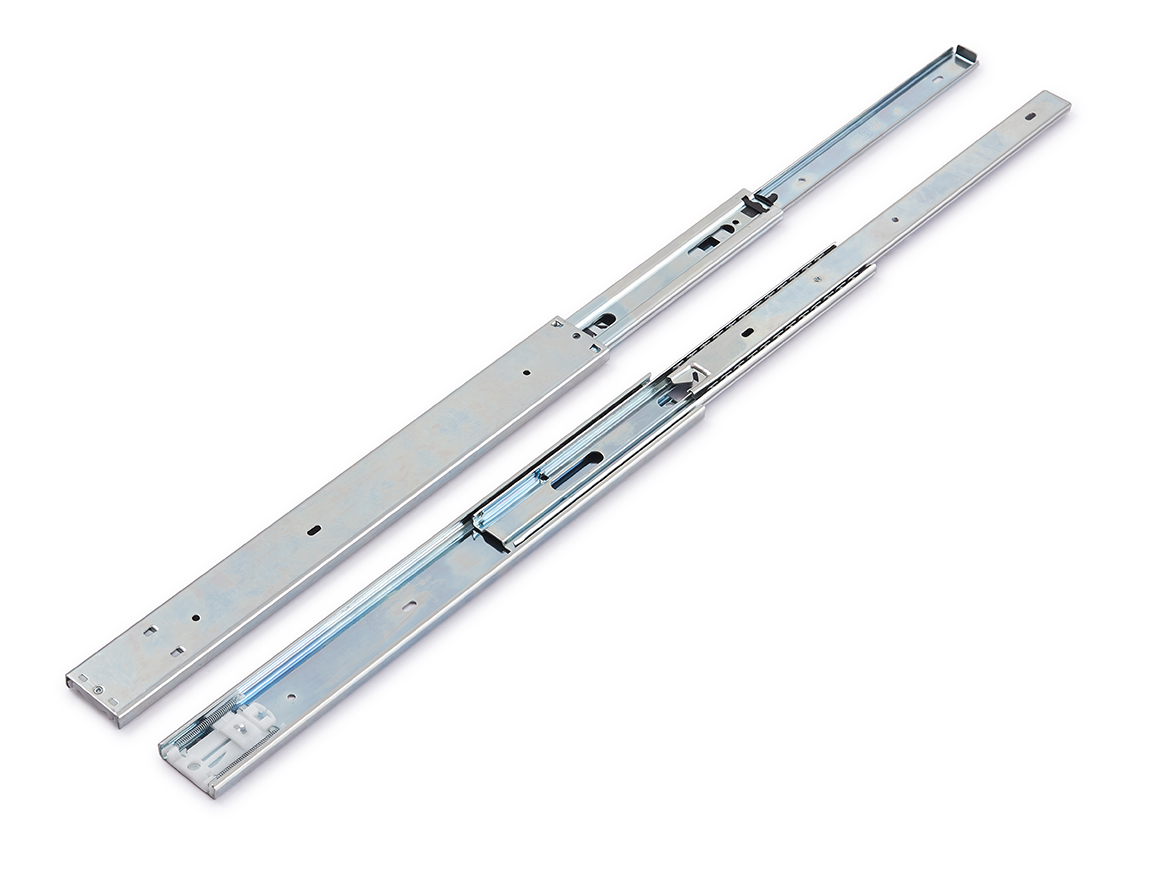

WLT45004N SELF-CLOSE FULL EXTENSION DRAWER SLIDES

Self-close H45 Drawer Slides

Specifications

Specifications
FEATURES

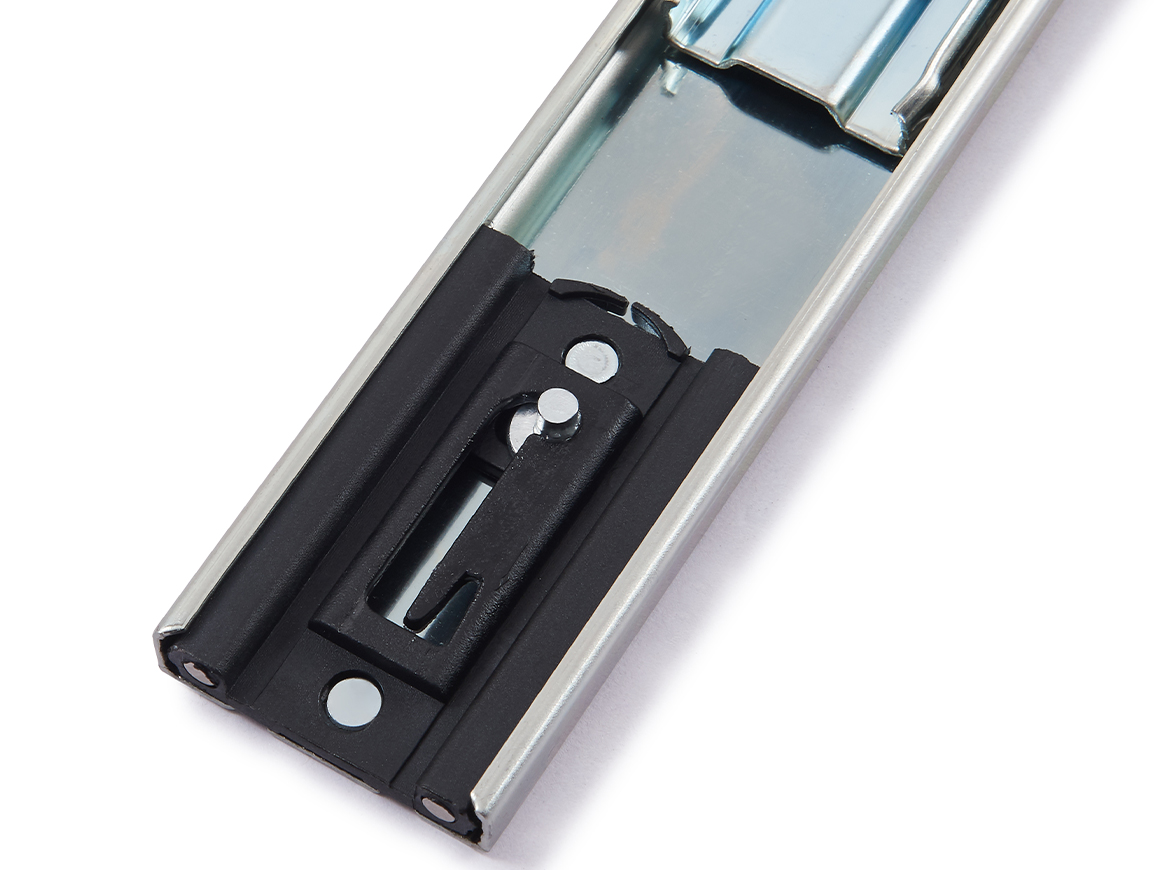

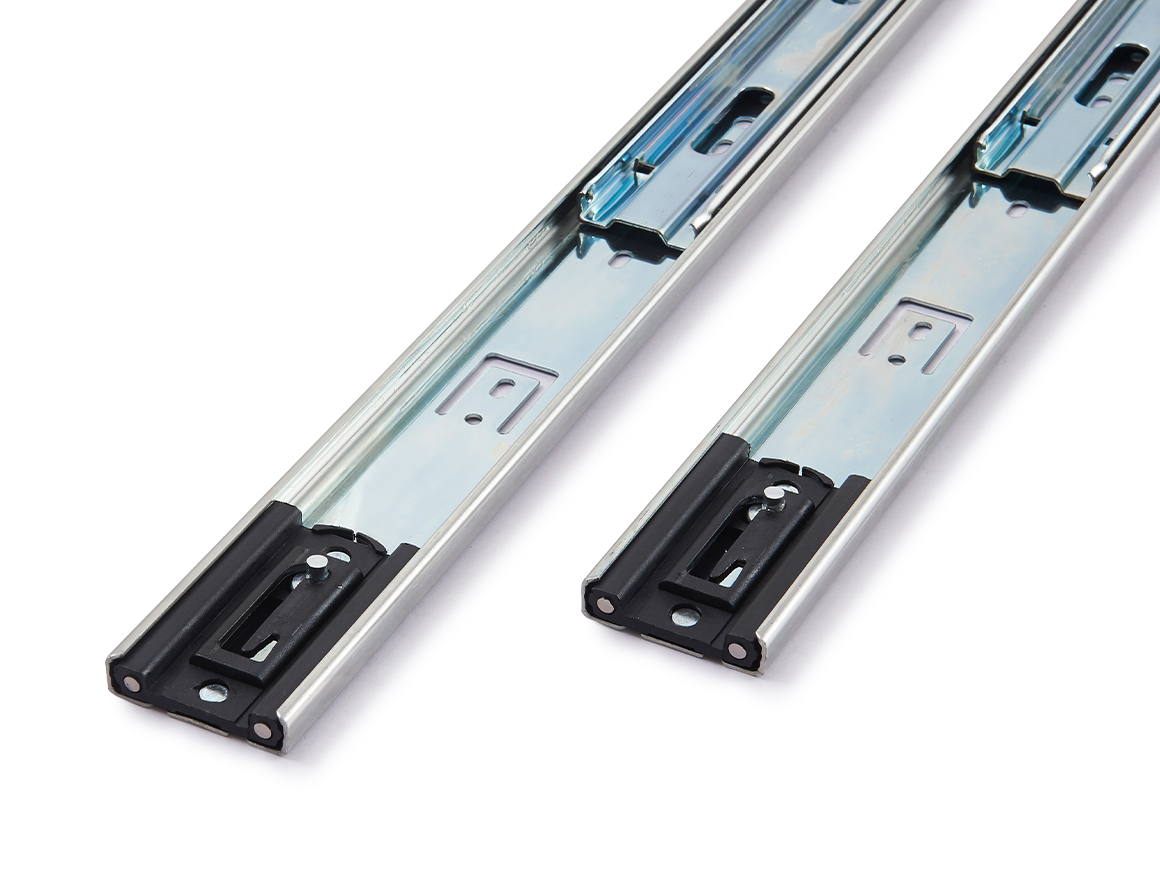

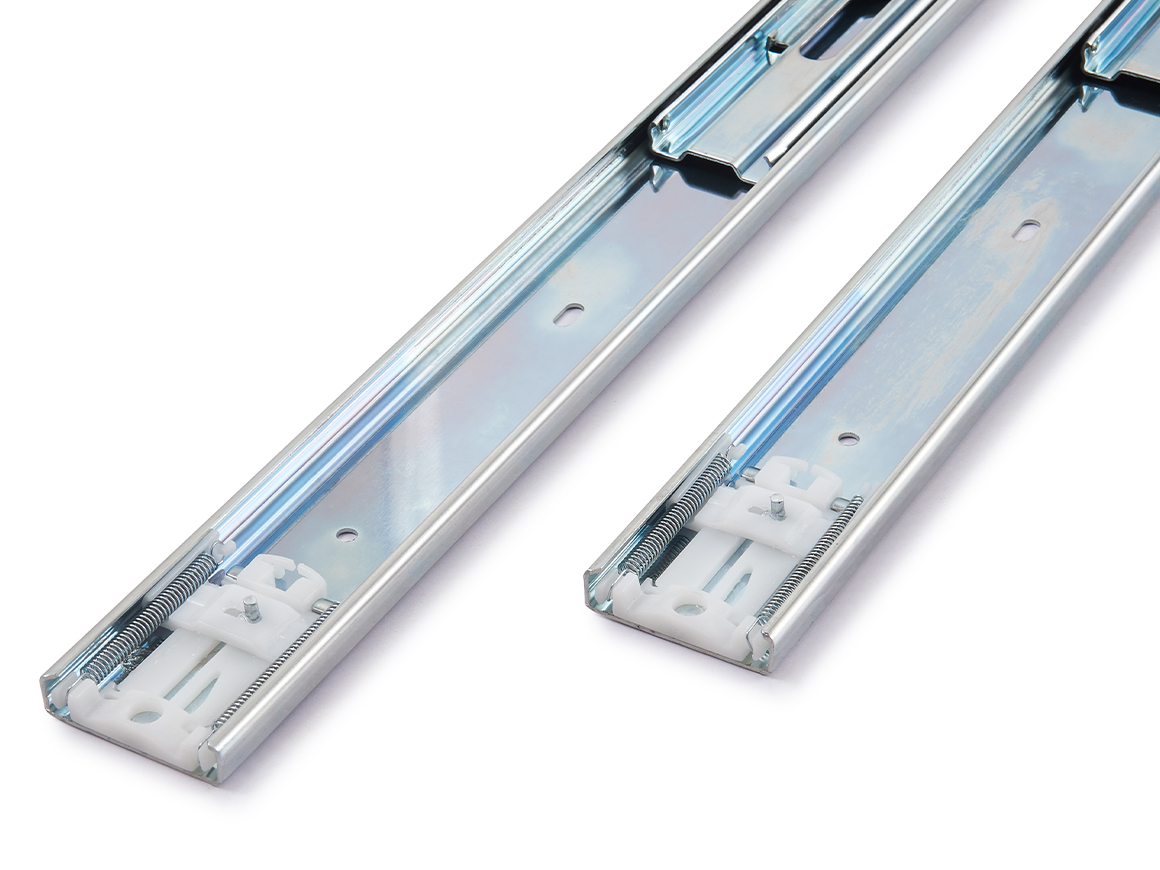

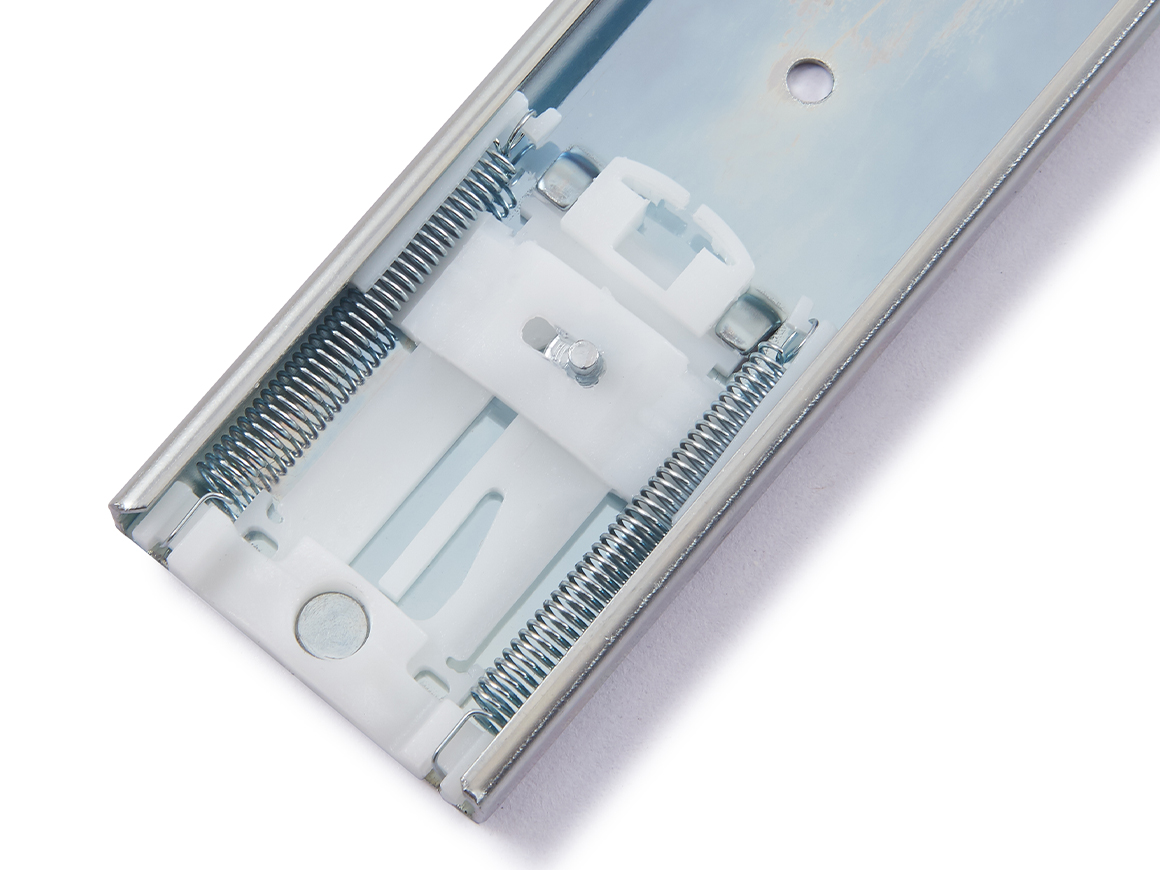

– Self-close
– Detachable for easy to installation
– Customized length, mounting holes and over travel design

APPLICATIONS
– File Cabinets, Kitchen cabinets, Cupboard cabinet, Wardrobe cabinet drawer or Tool boxes
– High-Load Wooden and Steel Drawers, Or Drawers requiring Higher Load Feature

SPECIFICATIONS
– Length:10”-28”
– Module: Soft-Close
– Mounting: Side Mount
– Mounting Clearance: 12.7mm (+0.5mm -0mm)

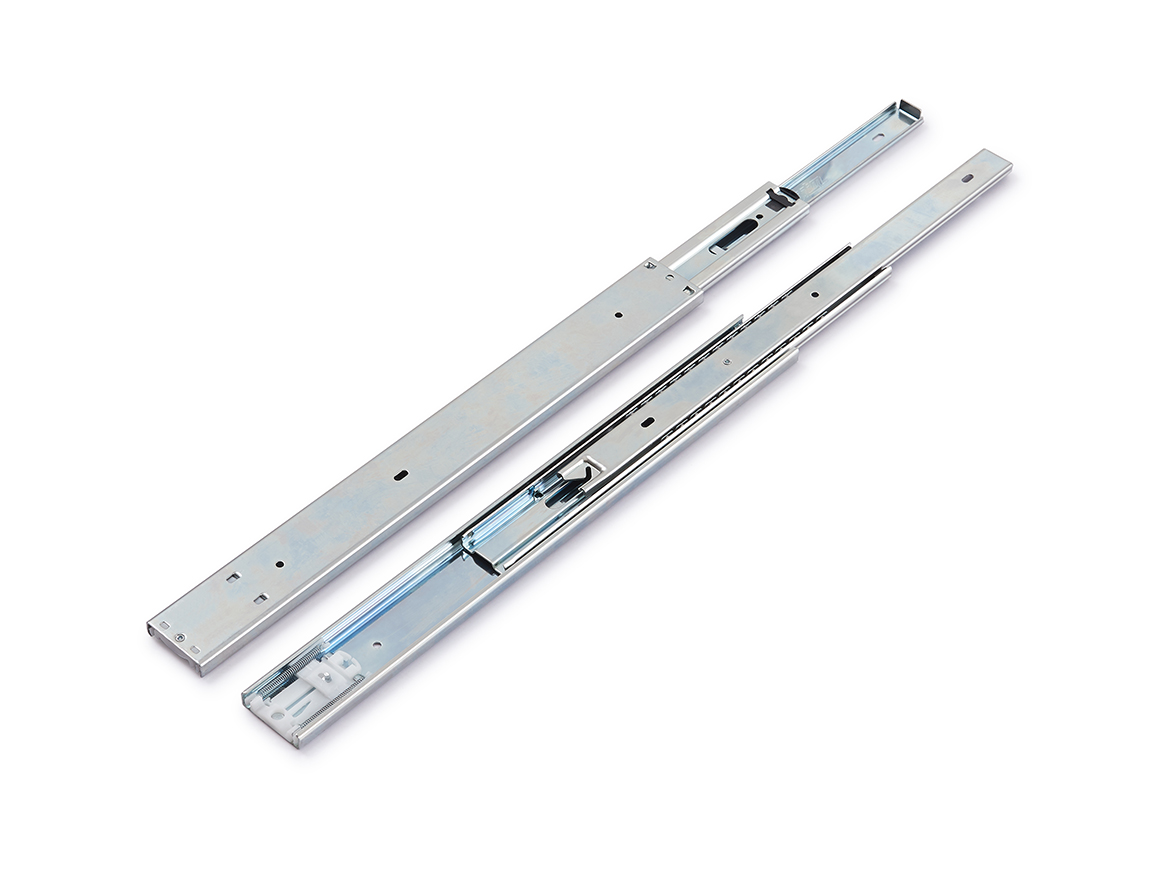

– Travel:Full Extension (3-Fold)

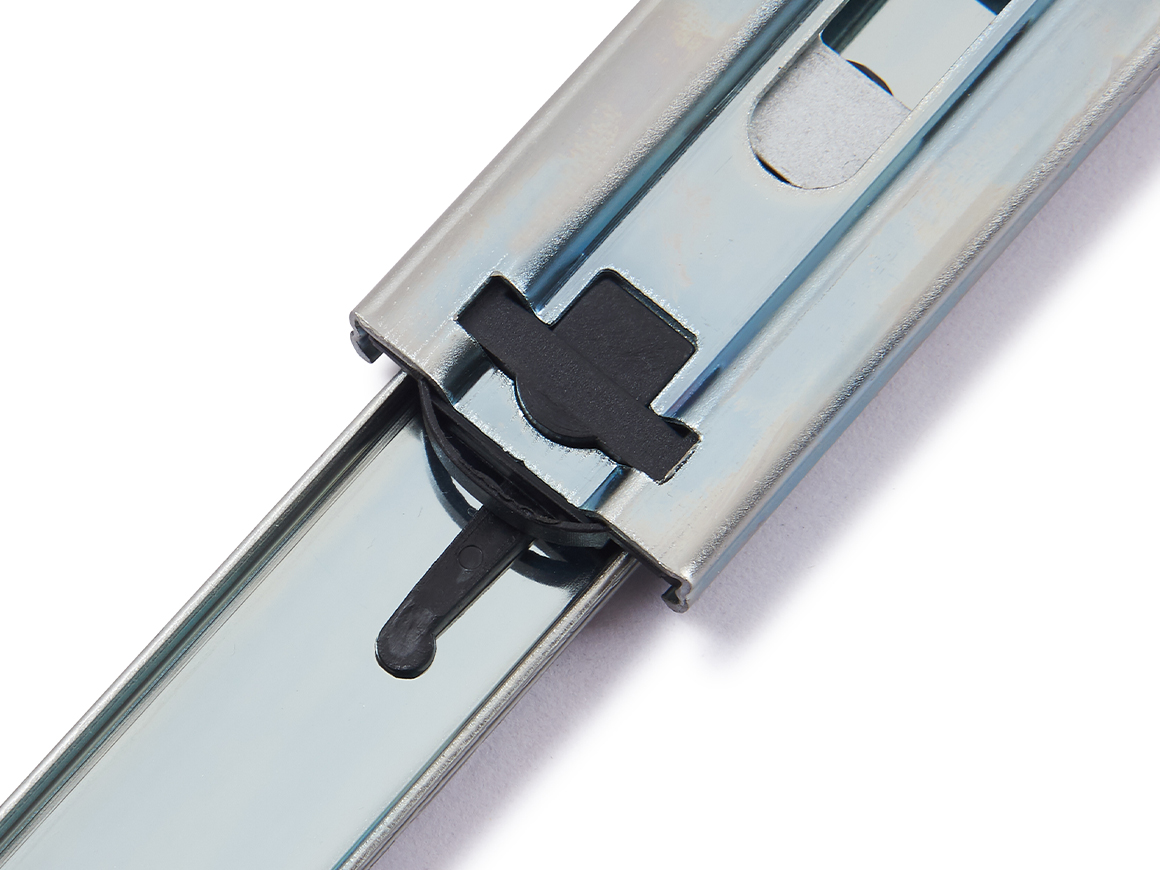

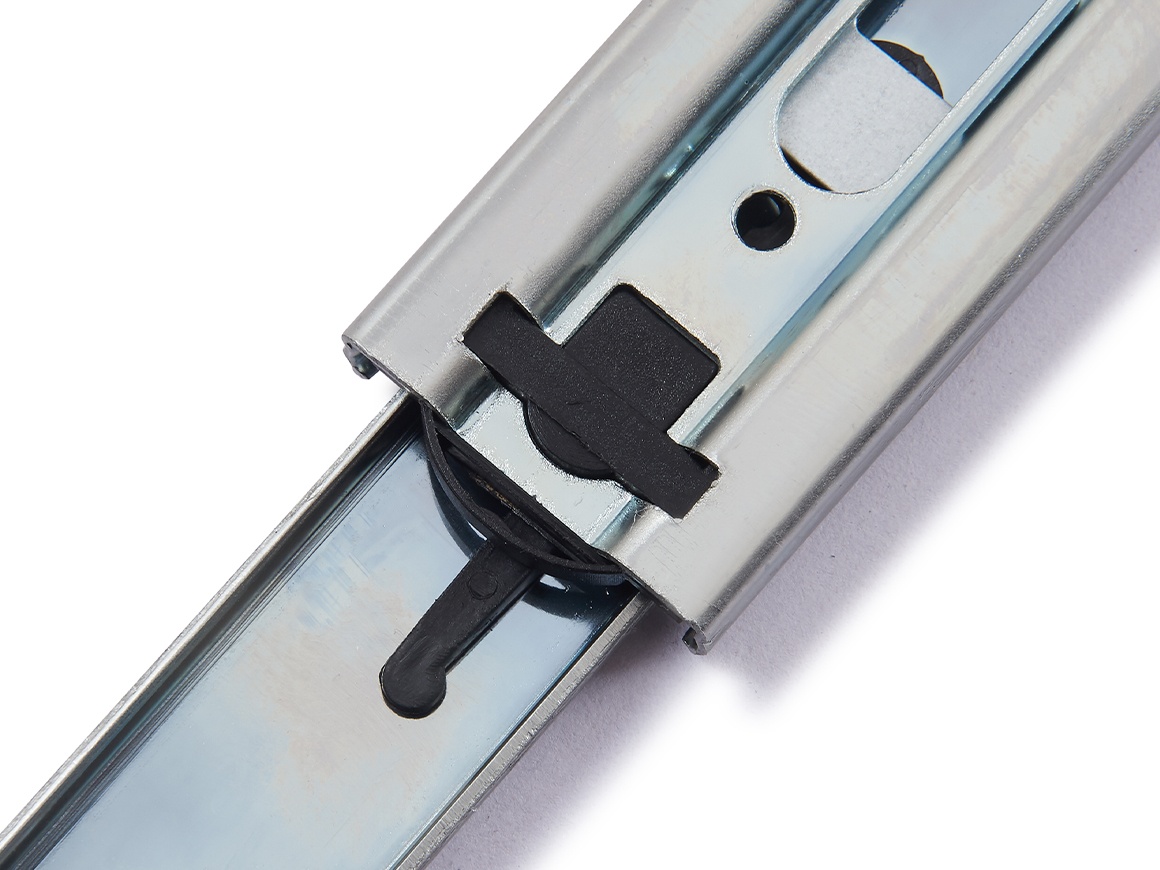

– Disconnect: Lever Disconnect

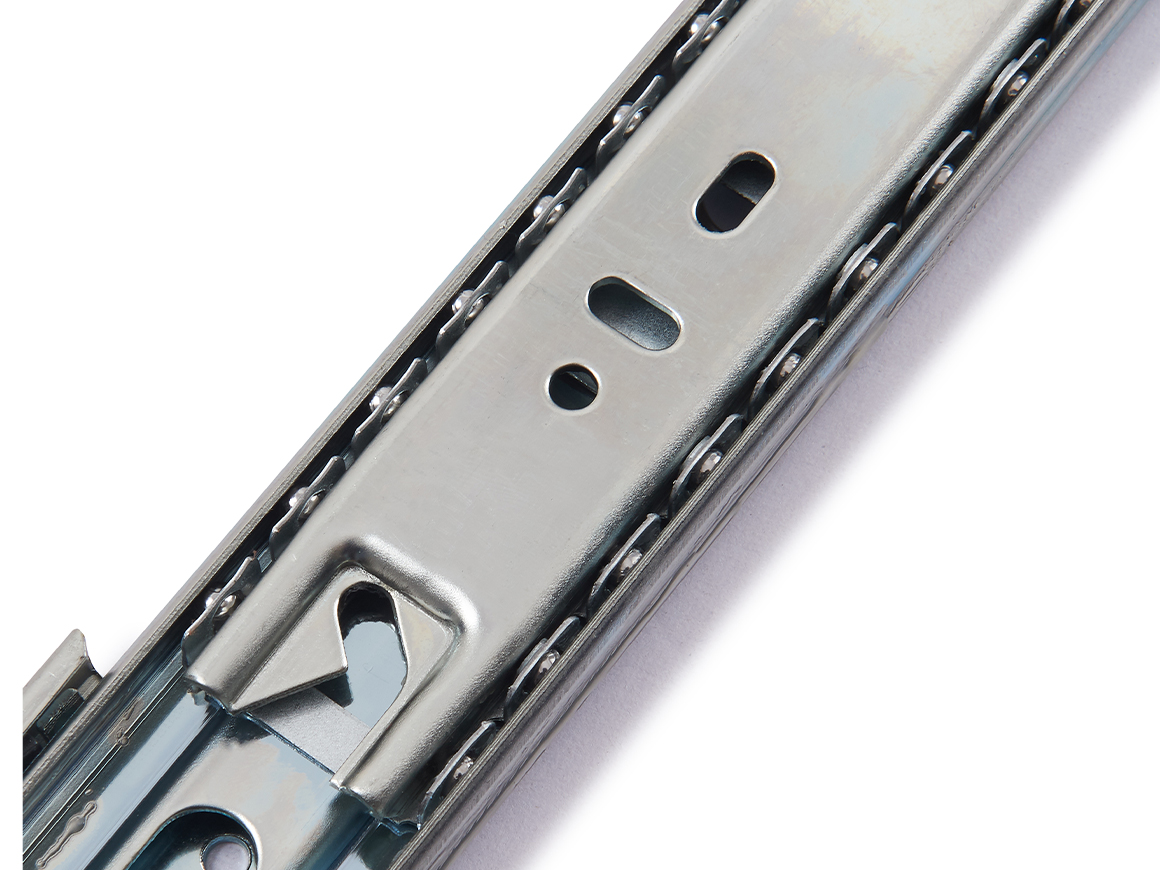

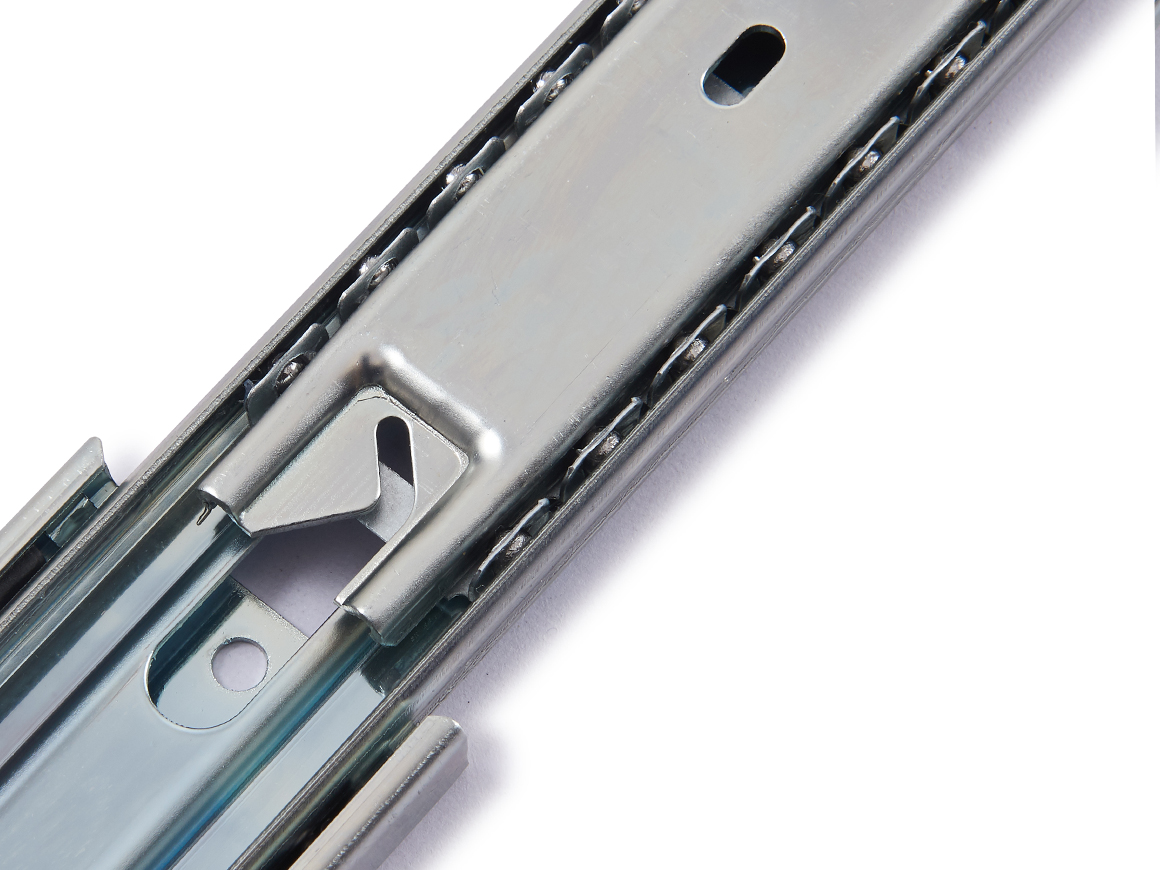

– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (1.2mm/1.2mm/1.4mm)

RATING
– Load: 45kgs/100lbs.
– Compliance ANSI performance standards as established by
BIFMA, BHMA and KCMA

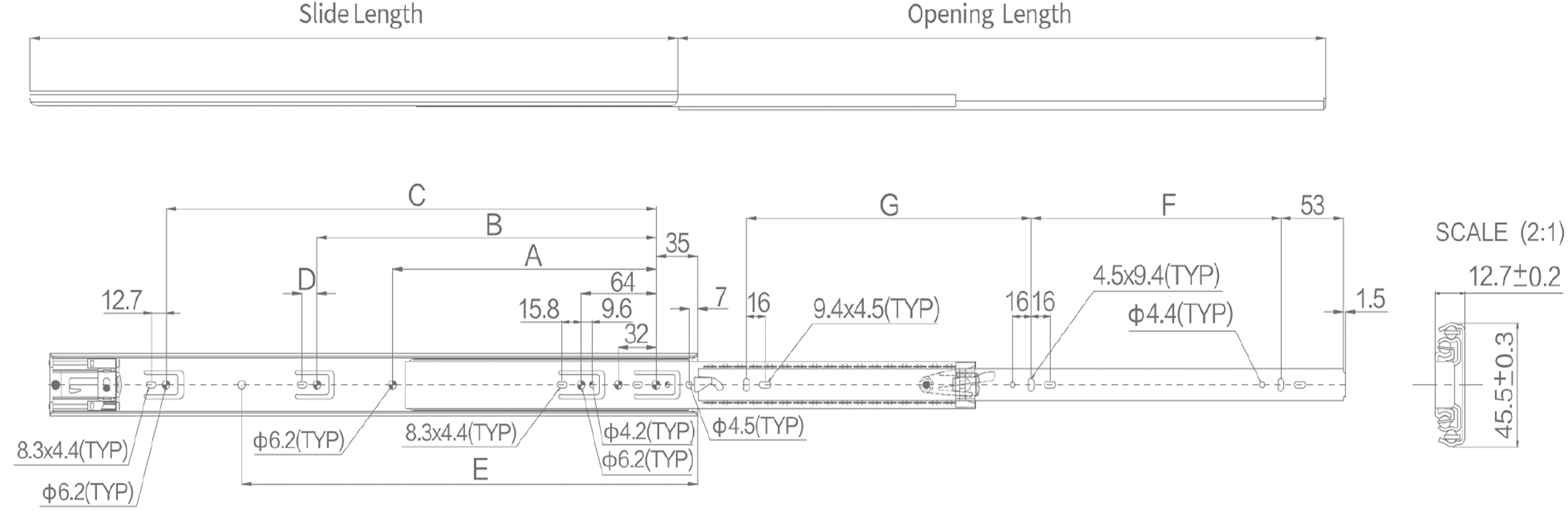

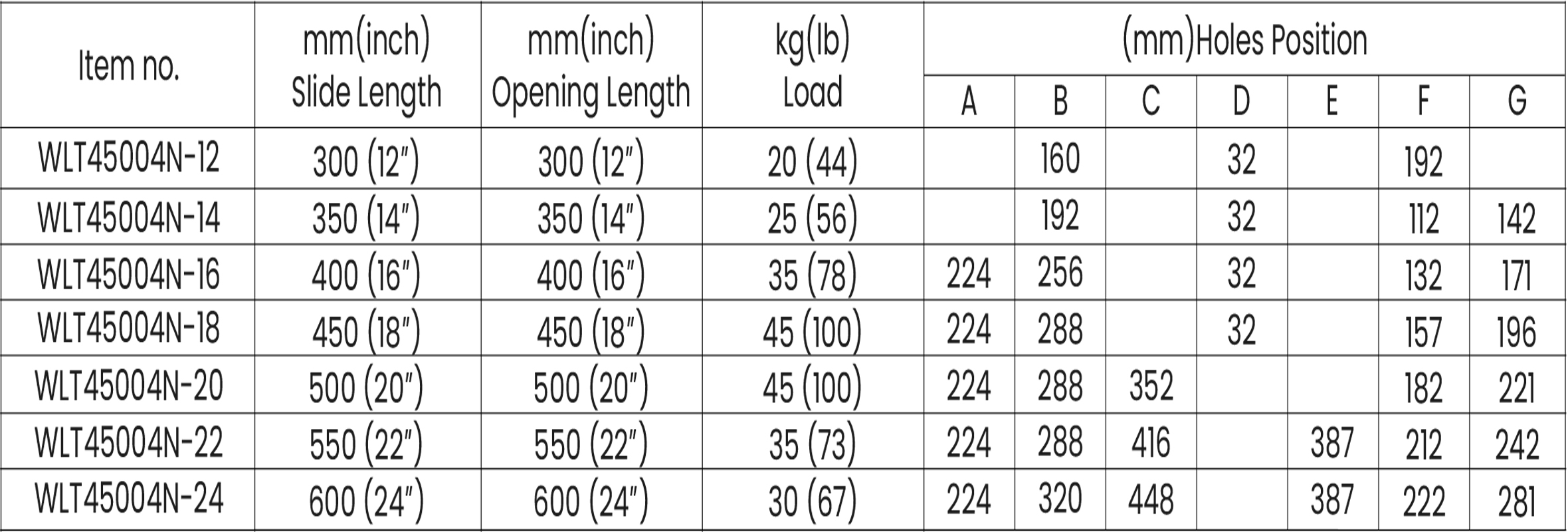

Drawing

WLT 45004N 012360x800 1 WLT 45004N 022360x800 1
