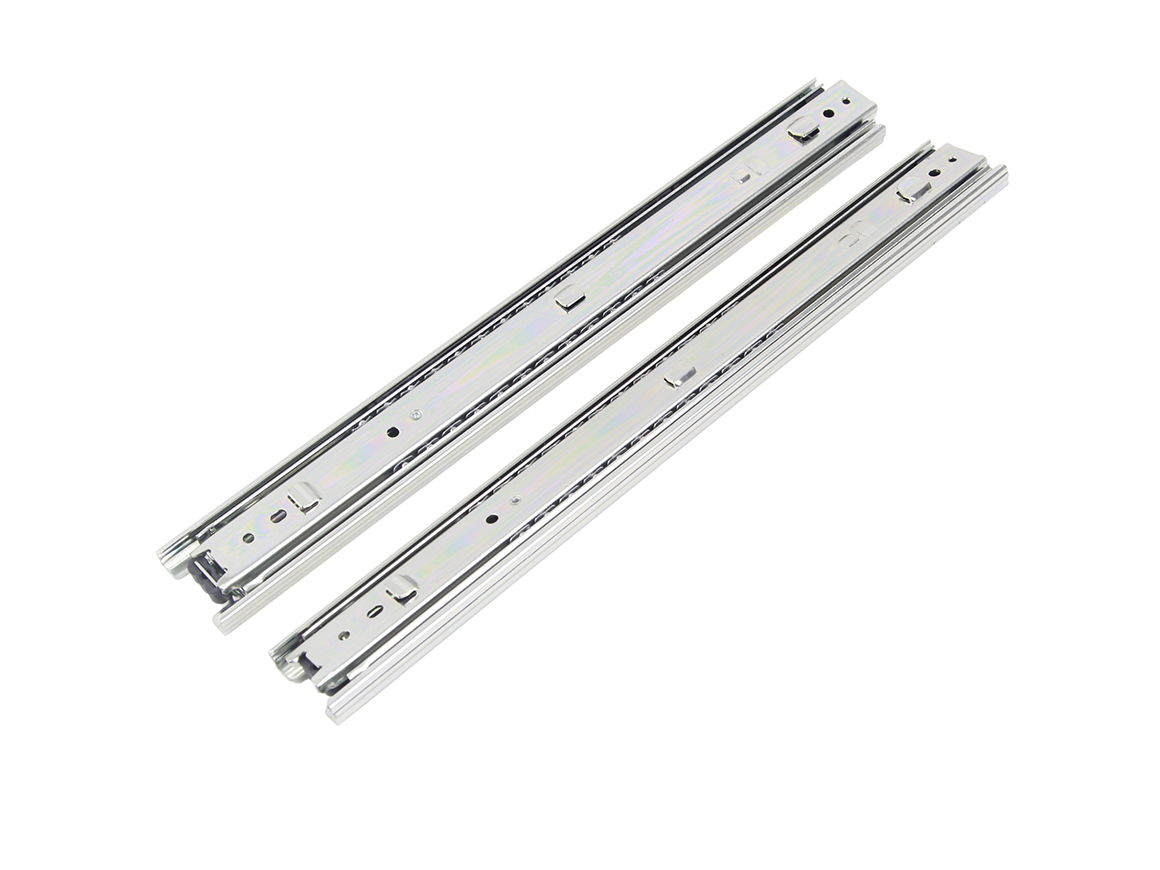

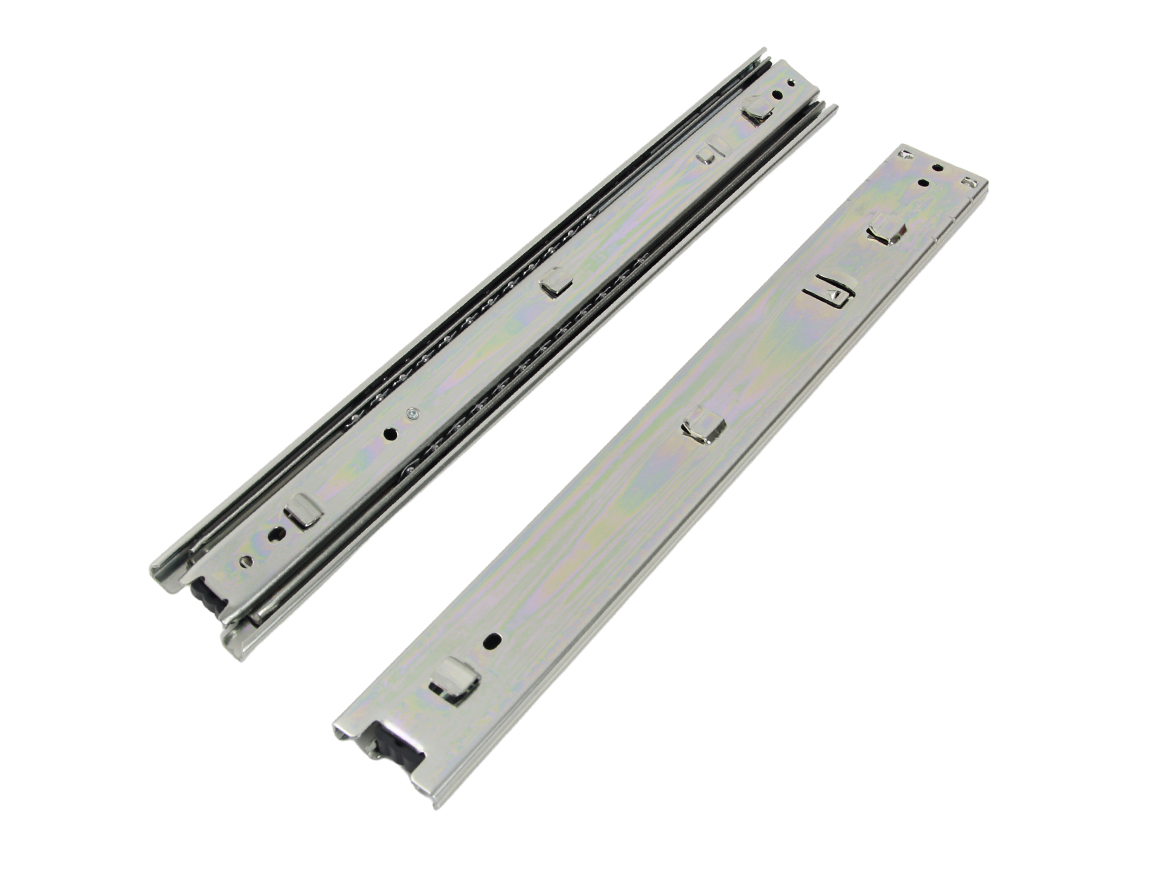

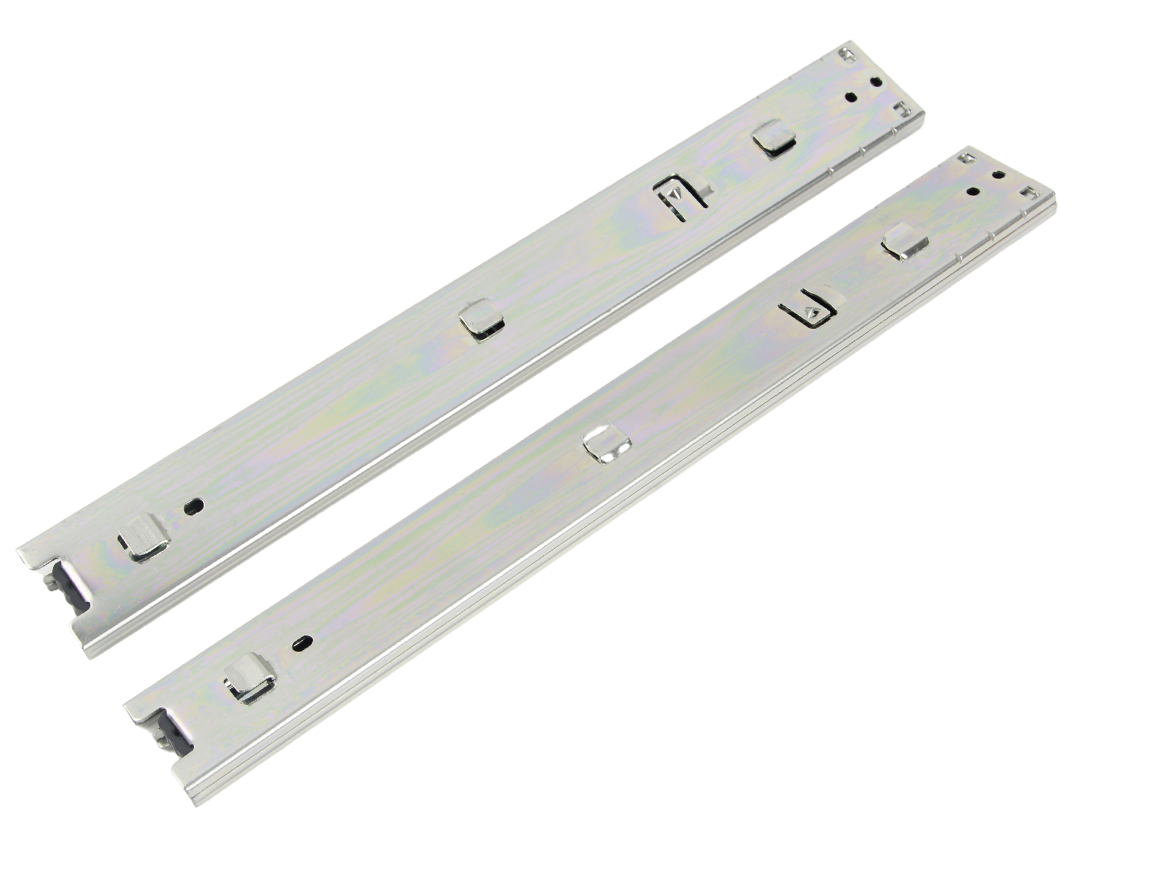

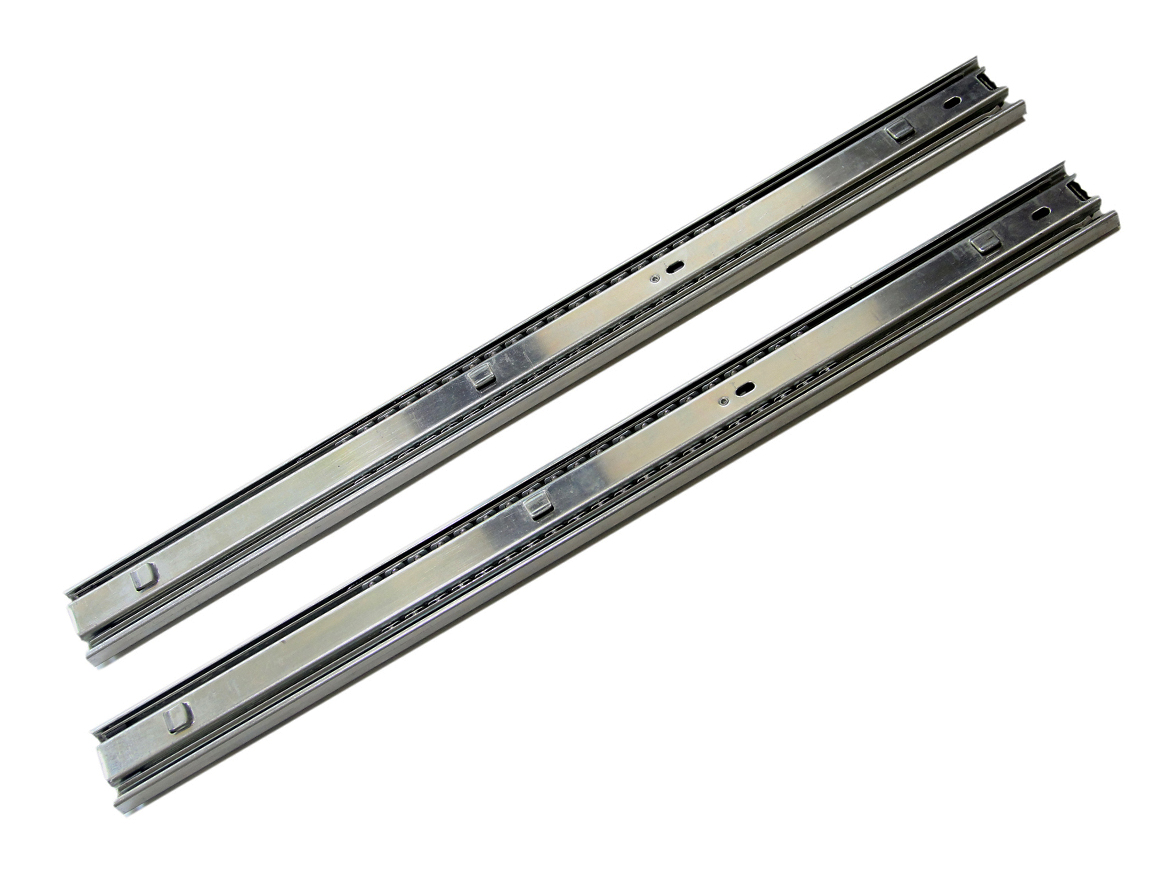

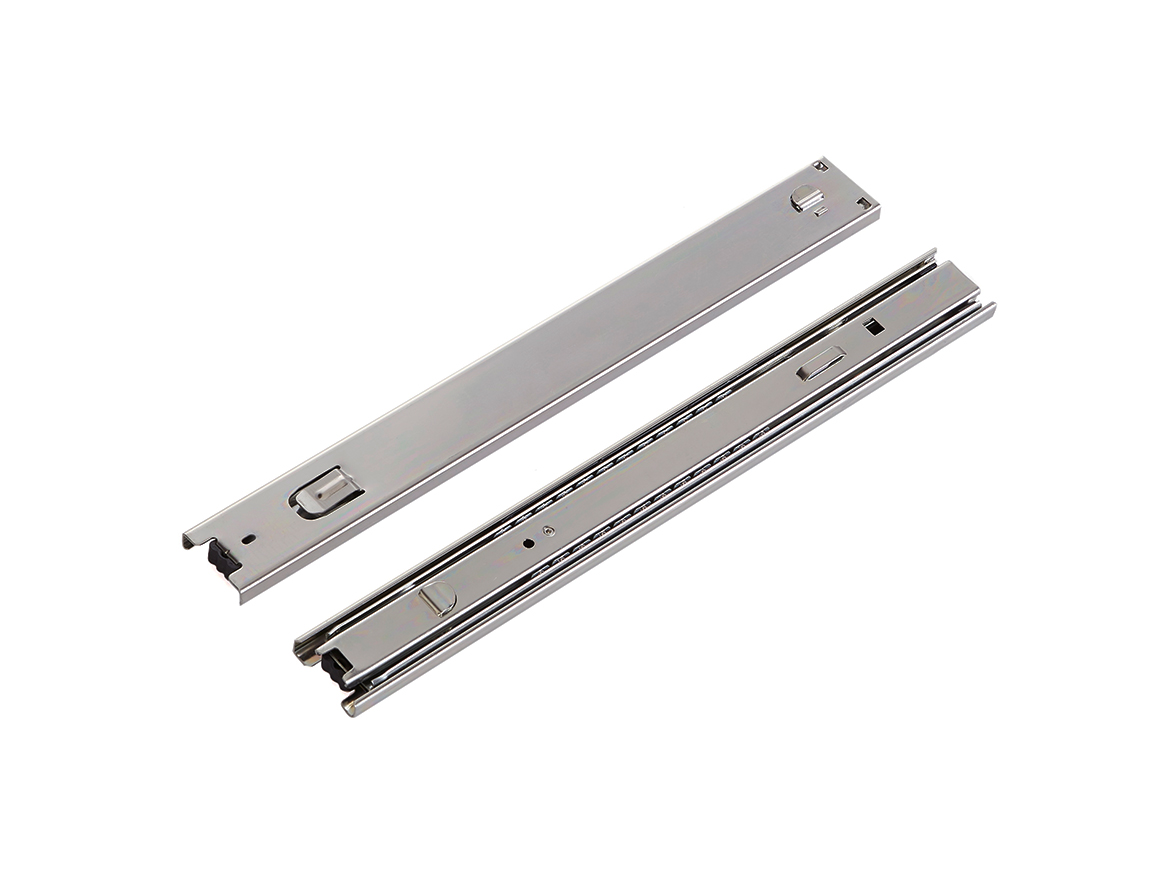

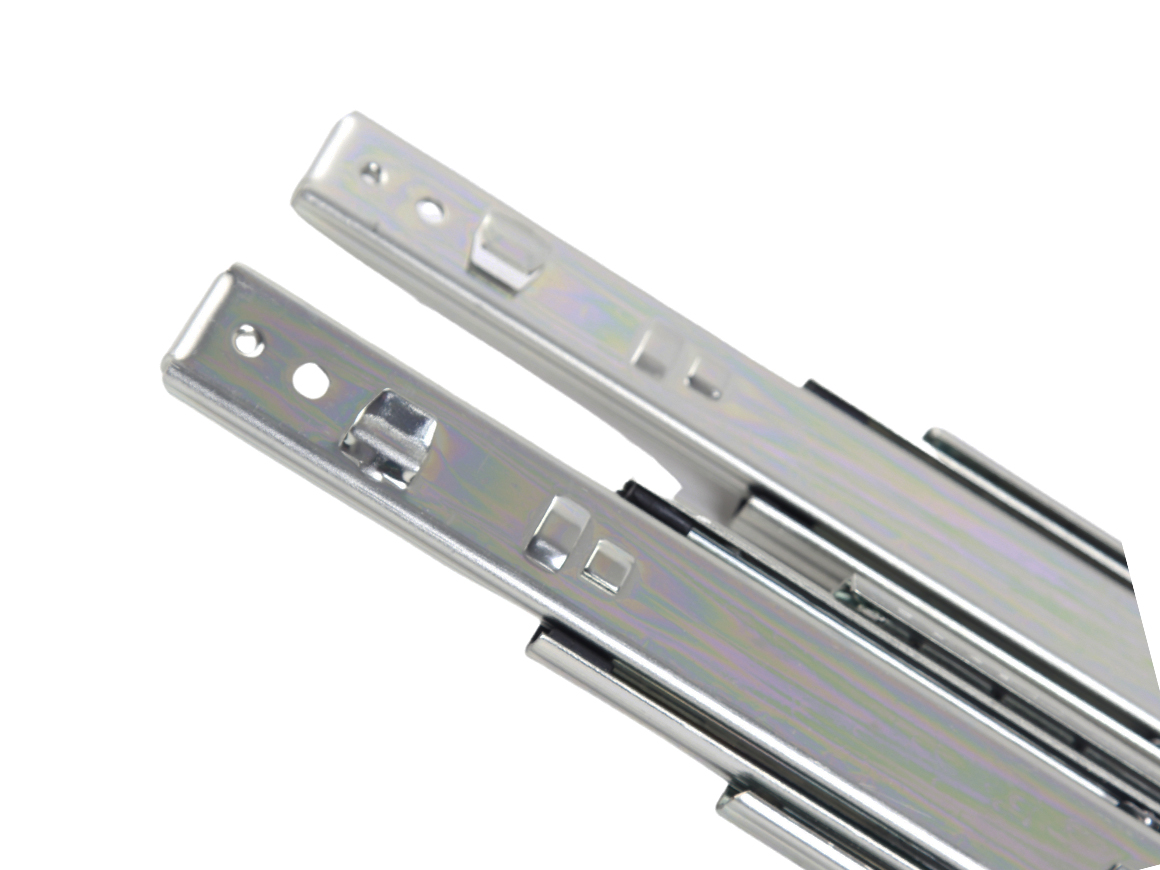

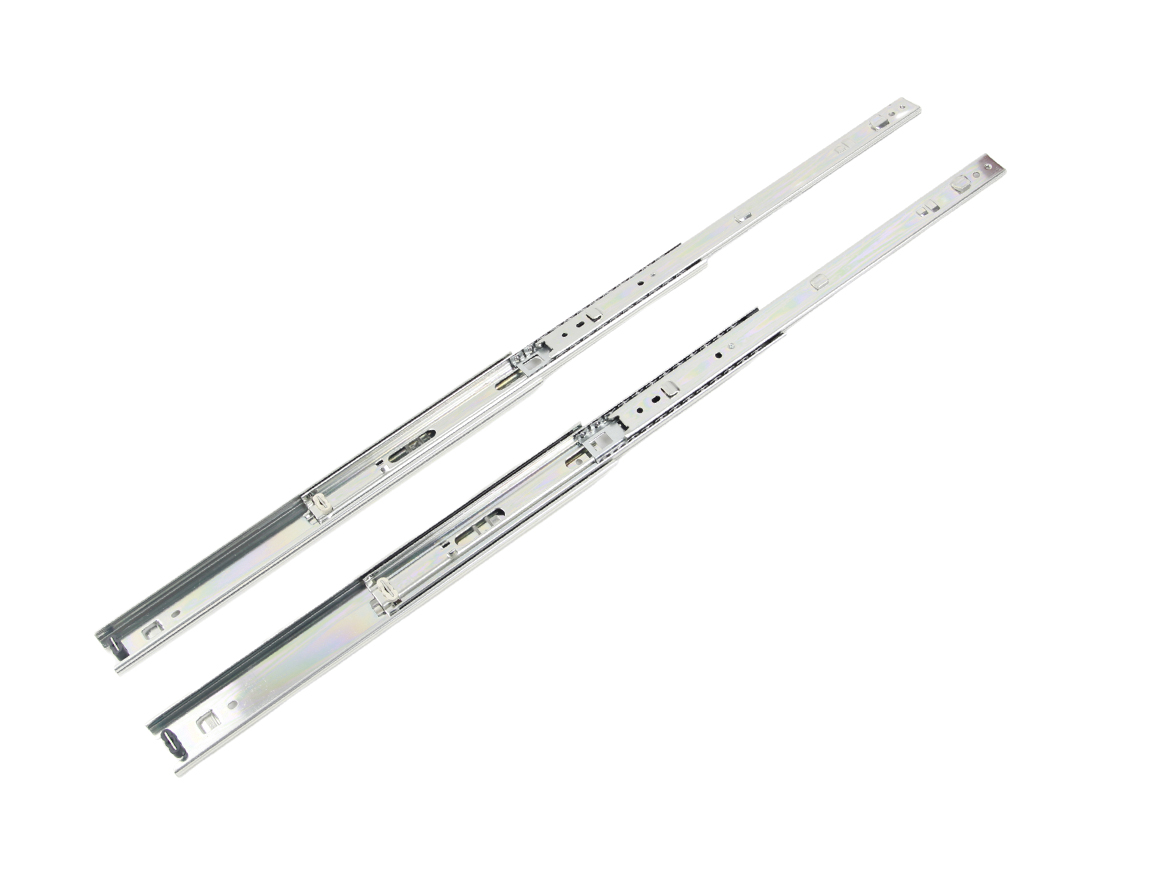

WLT45003N FULL EXTENSION BAYONET MOUNTING DRAWER SLIDES

With no soft-closing function

Specifications

FEATURES
– Customized length, mounting holes and bayonet mounting – Detachable for easy to installation

APPLICATIONS
– File Cabinets, Kitchen cabinets, Cupboard cabinet or Tool boxes, pull-out wire basket cabinet.
– High-Load Wooden and Steel Drawers, Or Drawers requiring Higher Load Feature

SPECIFICATIONS

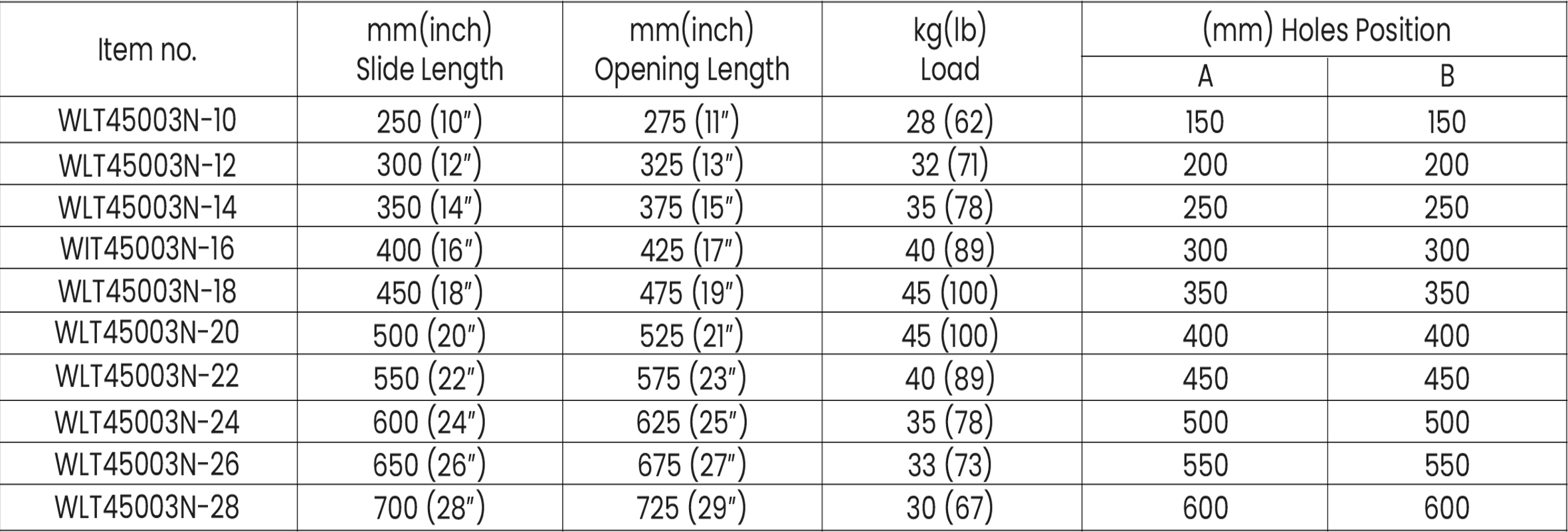

– Length:10”-28”
– Module: NON Soft-Close
– Mounting: Side Mount

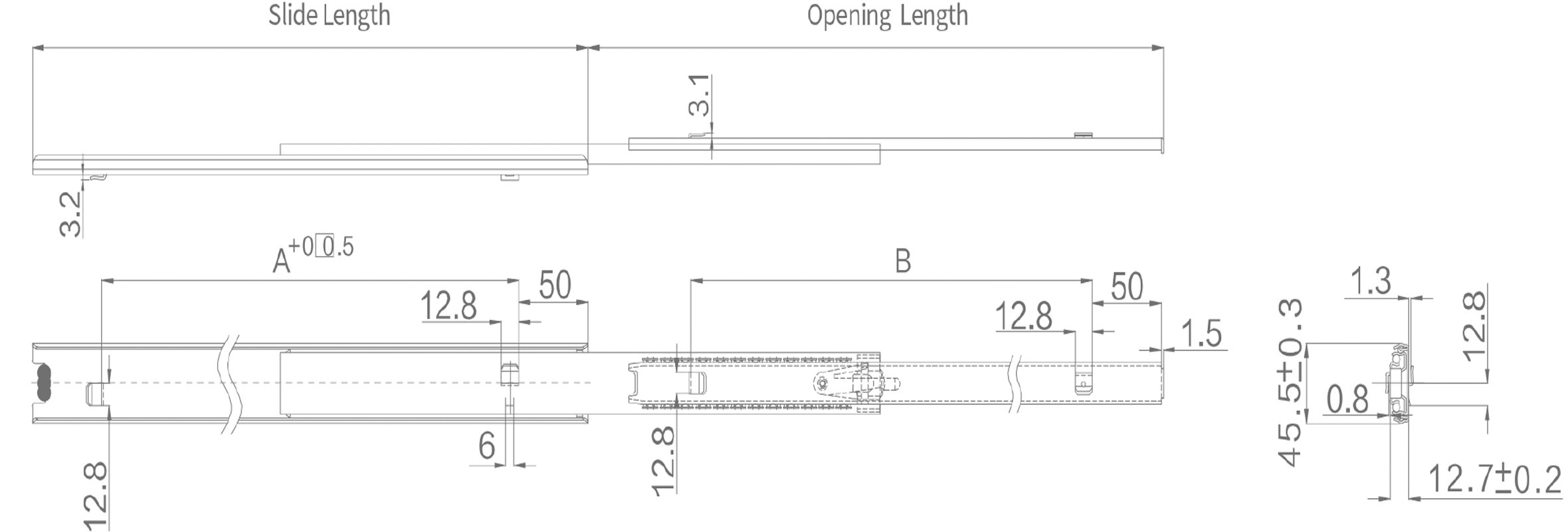

– Mounting Clearance: 12.7mm (+0.3mm -0.3mm) – Travel: Full Extension (3-Fold)

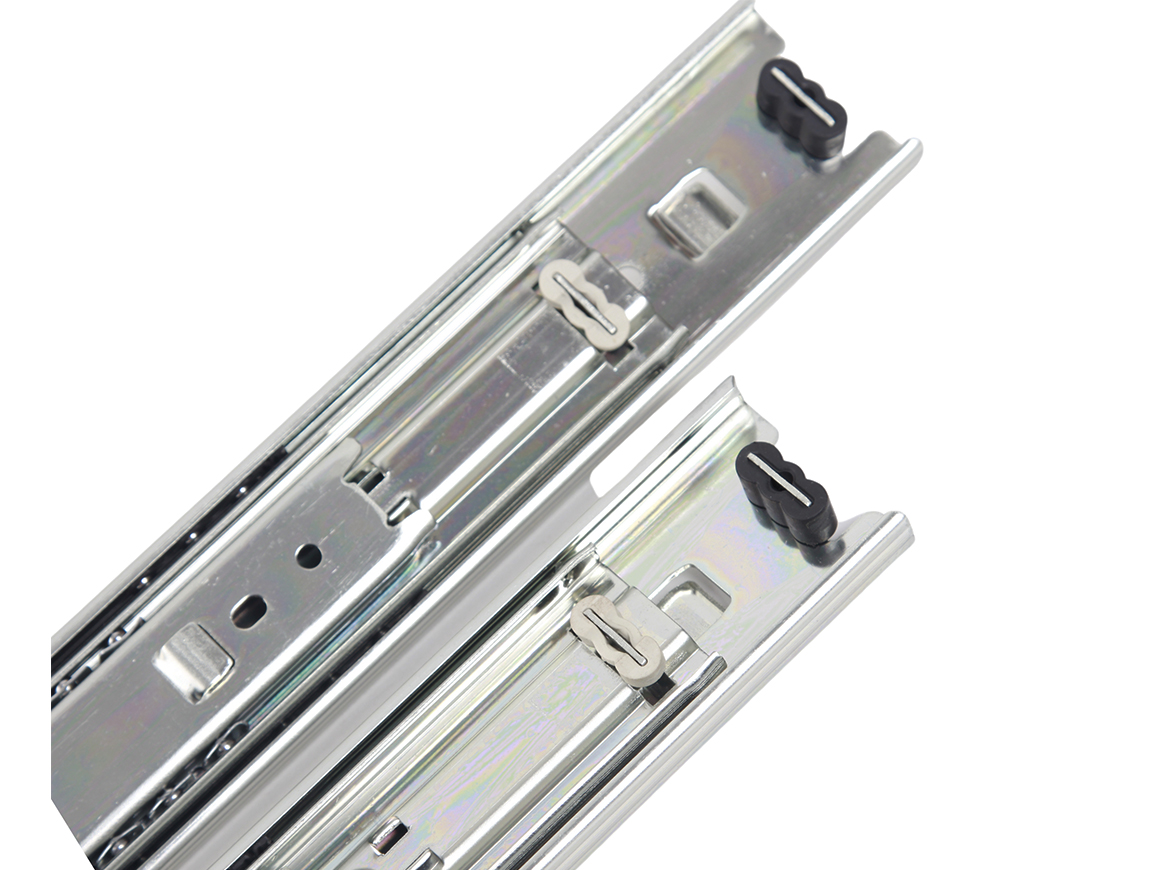

– Disconnect: Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (1.2mm/1.2mm/1.4mm)

RATING
– Load: 45kgs/100lbs.
– Compliance ANSI performance standards as established by
BIFMA, BHMA and KCMA
