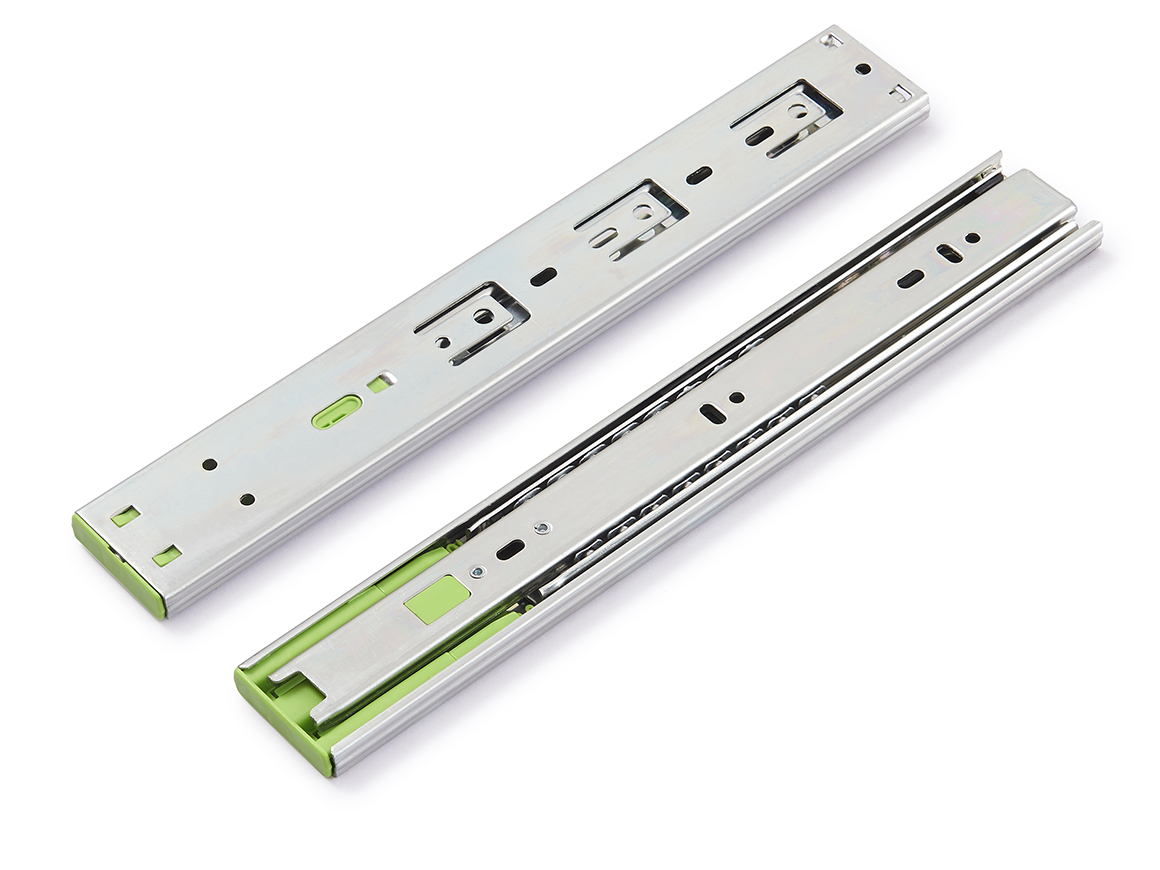

WLT45002K FGV SOFT CLOSE FULL EXTENSION DRAWER SLIDES

FGV Holes Pattern Soft-Close Cold-rolled steel (1.2mm/1.2mm/1.4mm) 45kgs/100lbs load rating

• full extension ball bearing drawer slides 18 inch 100 lb
• full extension drawer slides for kitchen cabinets soft close

Specifications

FEATURES
– Detachable for easy to installation
– Customized length, mounting holes and over travel design

APPLICATIONS
– File Cabinets, Kitchen cabinets, Cupboard cabinet or Tool boxes.
– High-Load Wooden and Steel Drawers, Or Drawers requiring
Higher Load Feature

• Kitchen cabinets and pantry drawers

• Tool chests and workshop storage

• Office filing systems and archive cabinets

SPECIFICATIONS
– Length:10”-28”
– Module: Soft-Close
– Mounting: Side Mount
– Mounting Clearance: 12.7mm (+0.5mm -0mm)
– Travel:Full Extension (3-Fold)

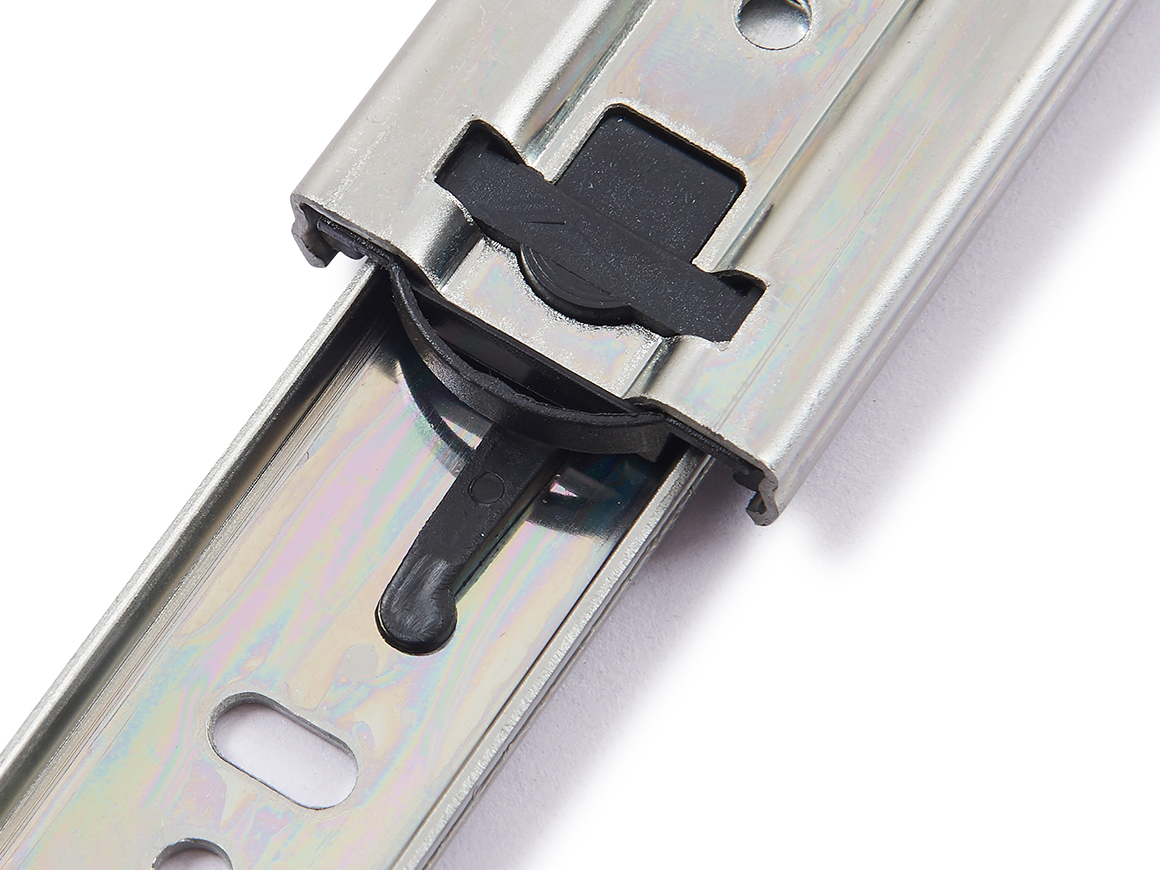

– Disconnect: Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (1.2mm/1.2mm/1.4mm)

RATING
– Load: 45kgs/100lbs.
– Compliance ANSI performance standards as established by
BIFMA, BHMA and KCMA
