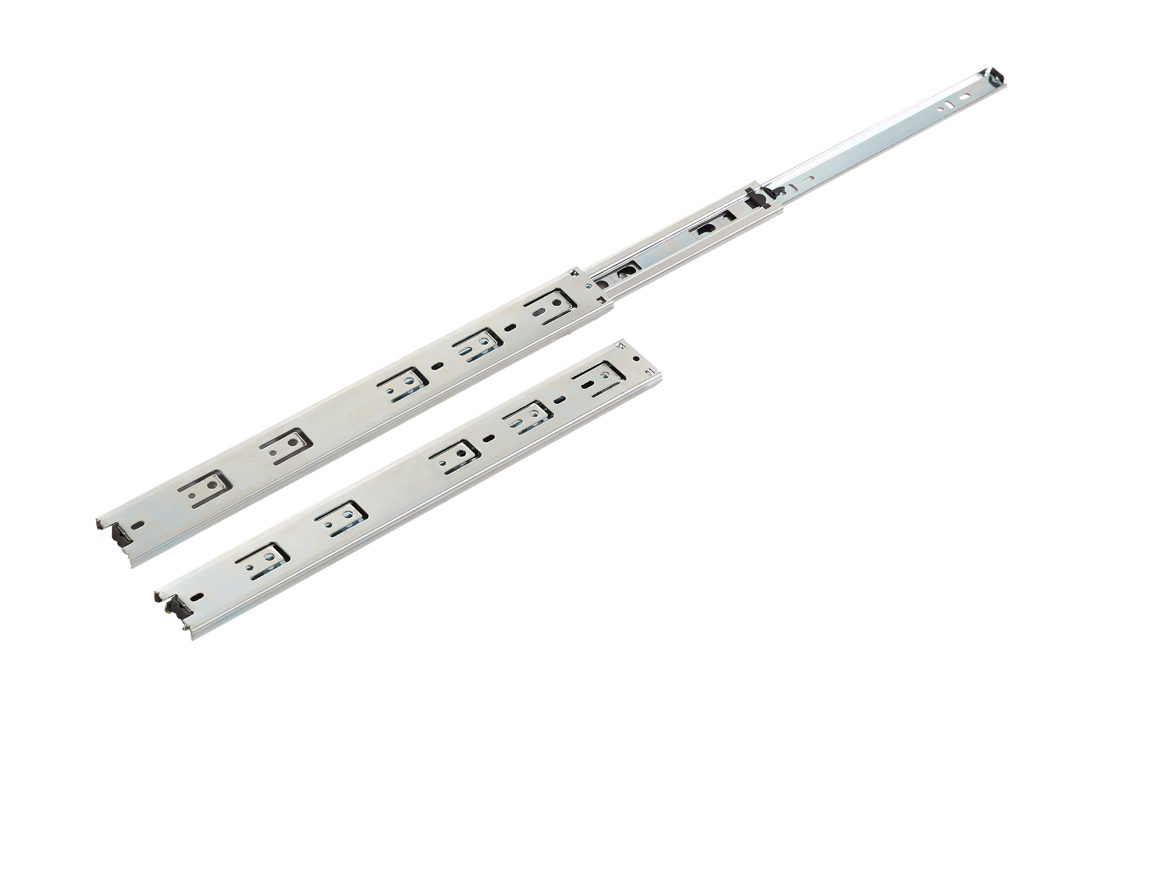

  • WLT 45001K 031160x870 1

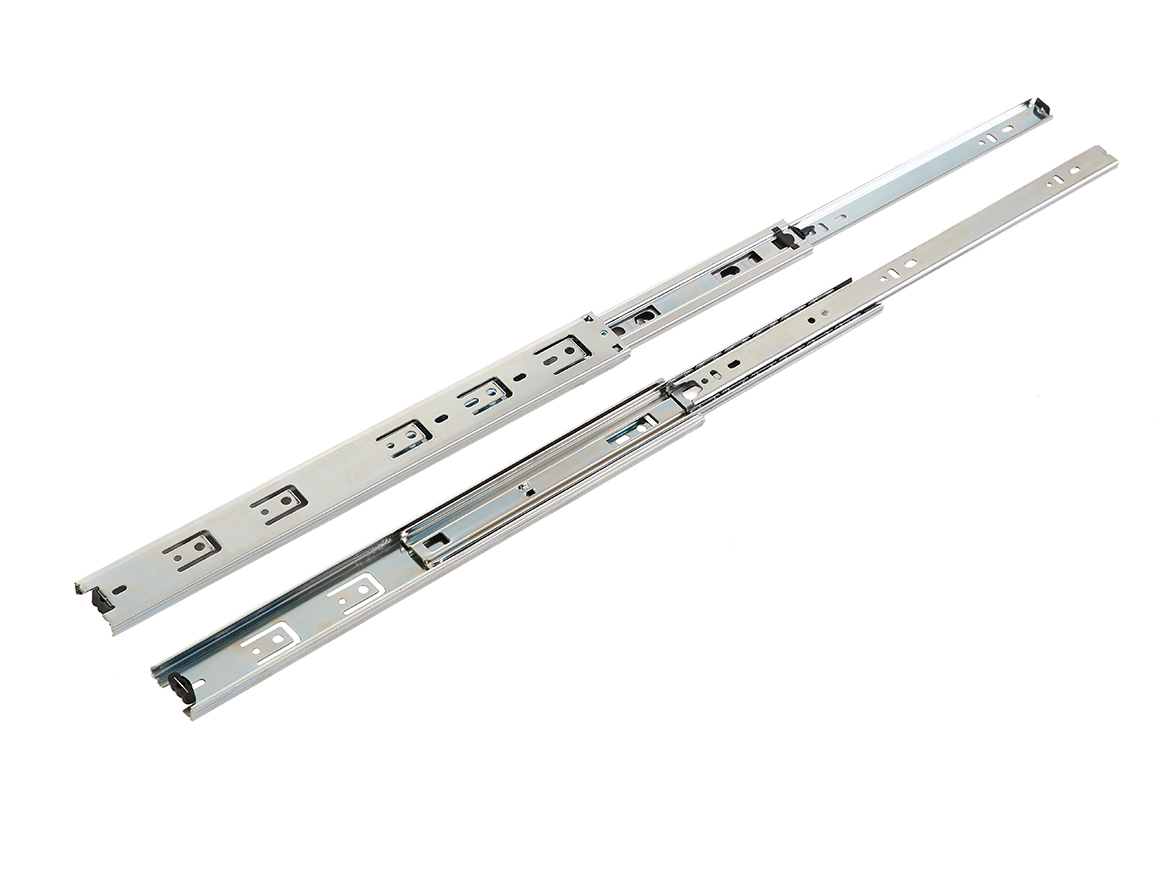

  • WLT 45001K 021160x870 1
  • WLT 45001N 041160x870 1
  • WLT 45001N 031160x870 1

WLT45001K FGV FULL EXTENSION DRAWER SLIDES

FGV Holes Pattern Slide rail. Cold-rolled steel (1.2mm/1.2mm/1.4mm) 45kgs/100lbs load rating

Specifications

FEATURES
– Customized length and mounting holes – Detachable for easy to installation

APPLICATIONS
– File Cabinets, Kitchen cabinets, Cupboard cabinet or Tool boxes.
– High-Load Wooden and Steel Drawers, Or Drawers requiring
Higher Load Feature

SPECIFICATIONS
– Length:10”-28”
– Module: NON Soft-Close
– Mounting: Side Mount
– Mounting Clearance: 12.7mm (+0.3mm -0.3mm) – Travel: Full Extension (3-Fold)
– Disconnect: Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (1.2mm/1.2mm/1.4mm)

RATING
– Load: 45kgs/100lbs.
– Compliance ANSI performance standards as established by
BIFMA, BHMA and KCMA

Drawing

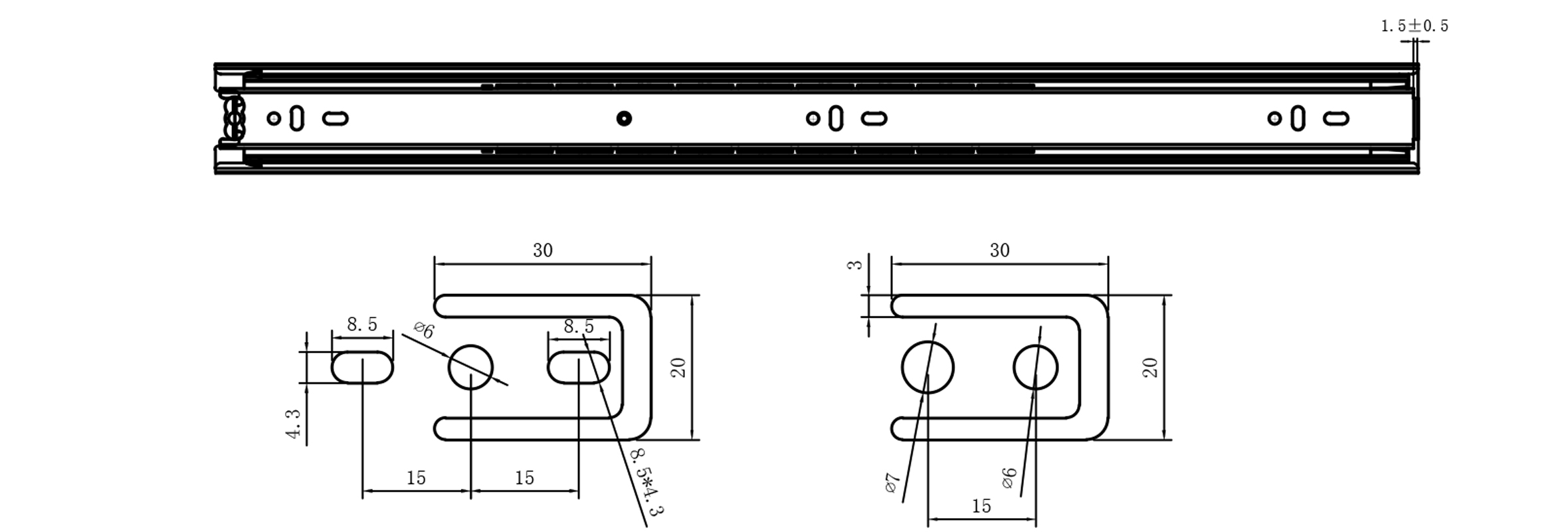

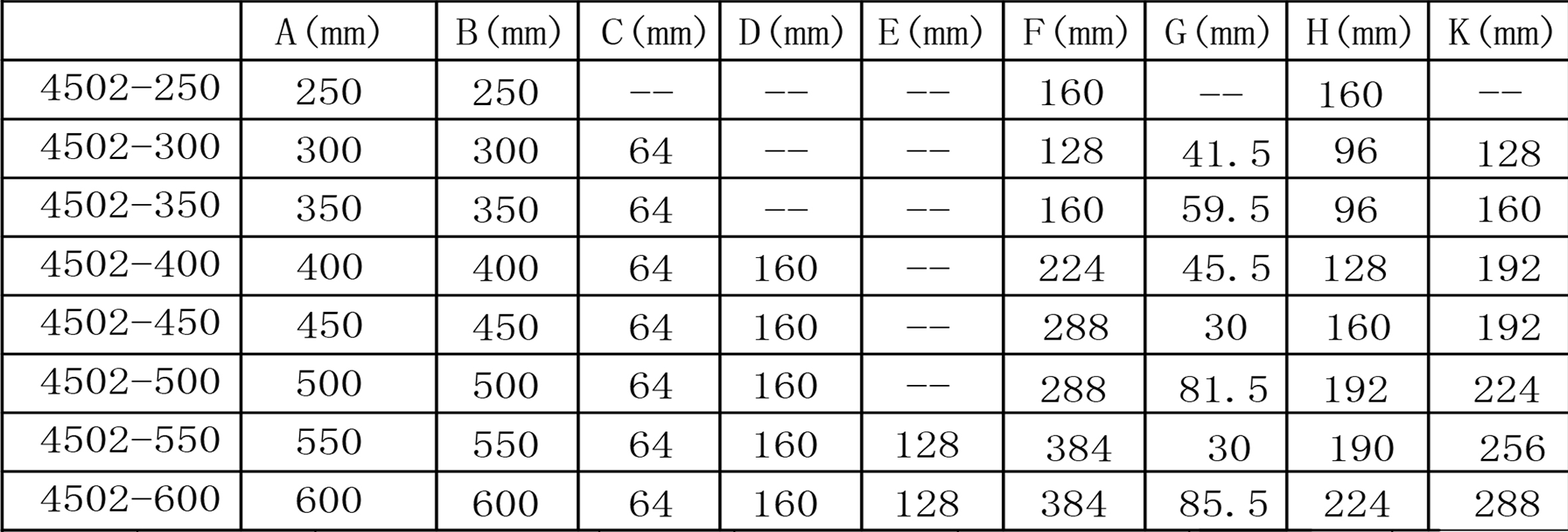

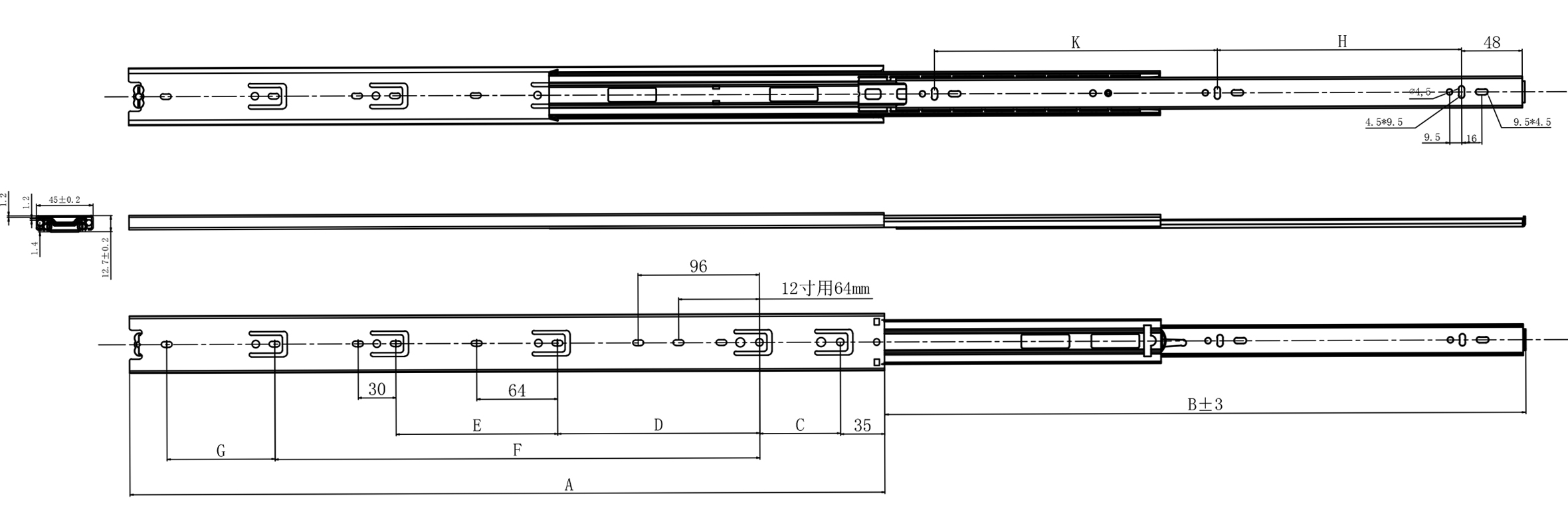

WLT 45001K 022360x800 1 WLT 45001K 012360x800 1 WLT 45001K 032360x800 1
