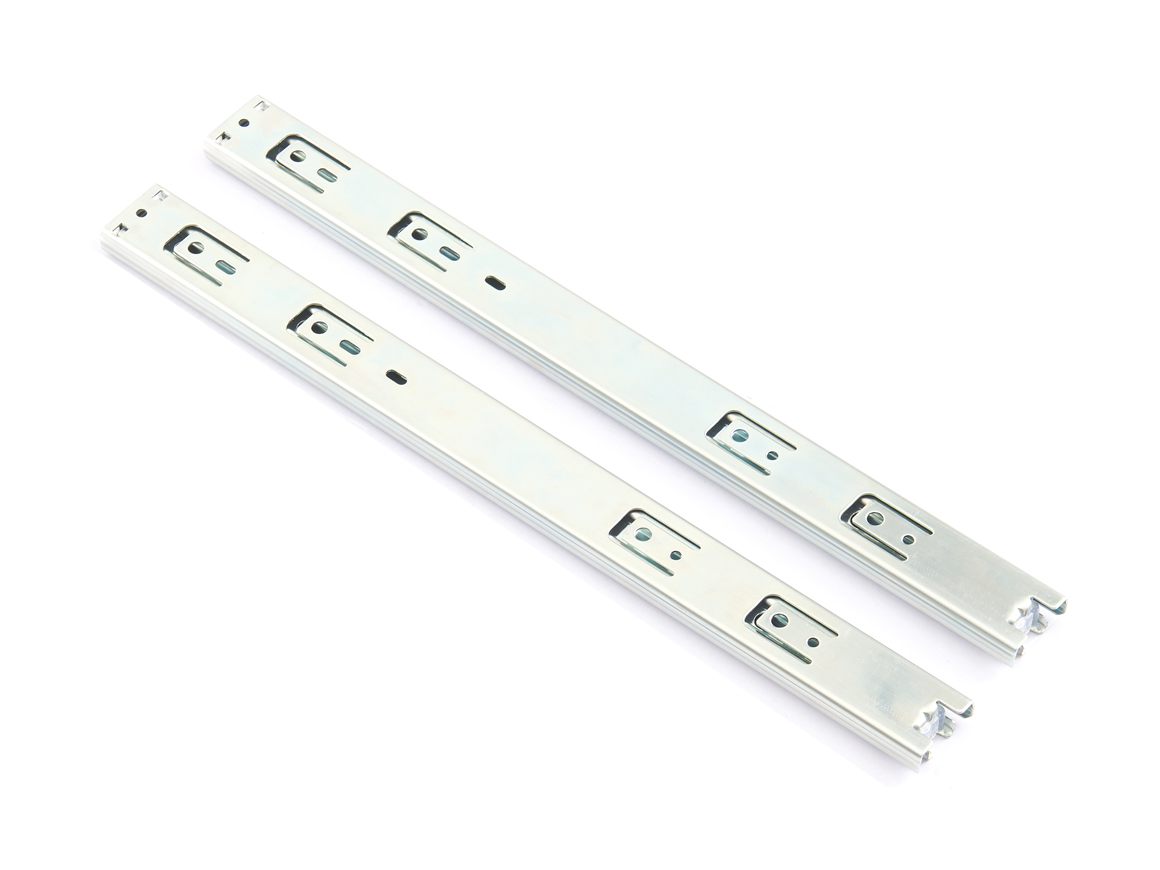

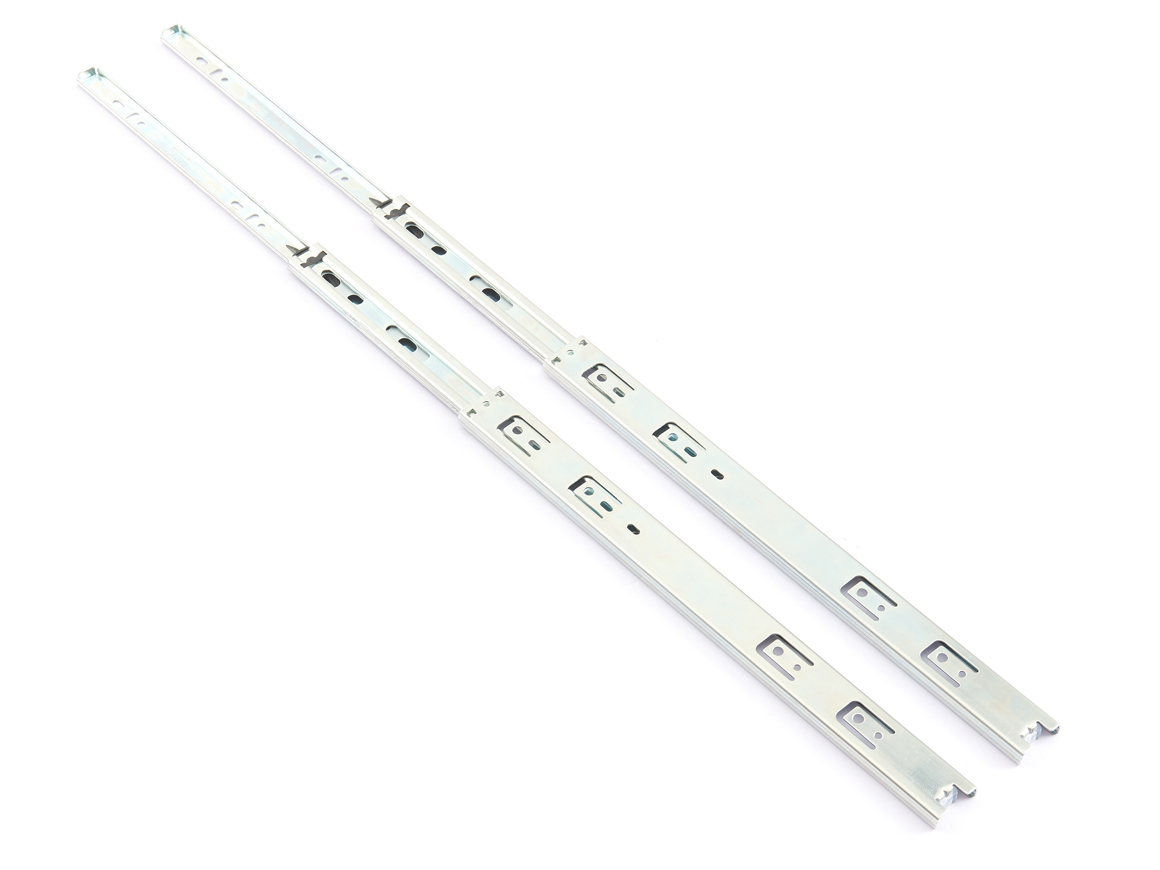

WLT35002 FULL EXTENSION DRAWER SLIDES

35mm 1.2×1.2×1.2 Q235 cold rolled steel for load rate up to 35kgs

Specifications

FEATURES
– Detachable for easy to installation
– Customized length,mounting holes and over travel design

APPLICATIONS
– File Cabinets, Kitchen cabinets, Cupboard cabinet, Wardrobe cabinet drawer or Tool boxes

SPECIFICATIONS
– Length:10”-28”
– Module: Non Soft-Close
– Mounting: Side Mount
– Mounting Clearance: 12.7mm (+0.5mm -0mm)
– Travel:Full Extension (3-Fold)
– Disconnect: Lever Disconnect
– Type: Steel Ball Bearing
– Finish: Zinc / Black
– Material: Cold-rolled steel (1.2mm/1.2mm/1.2mm)

RATING
– Load: 35kgs/80lbs.
– Compliance ANSI performance standards as established by
BIFMA, BHMA and KCMA
