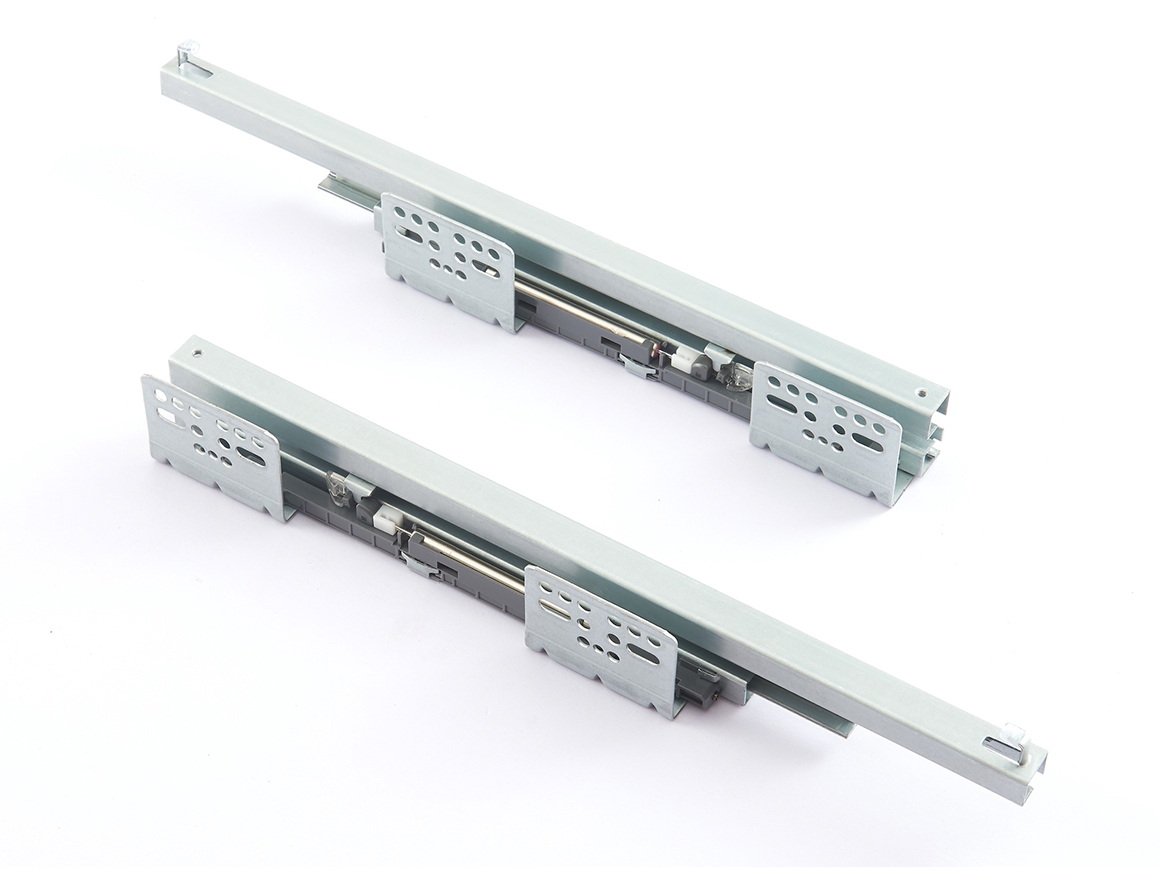

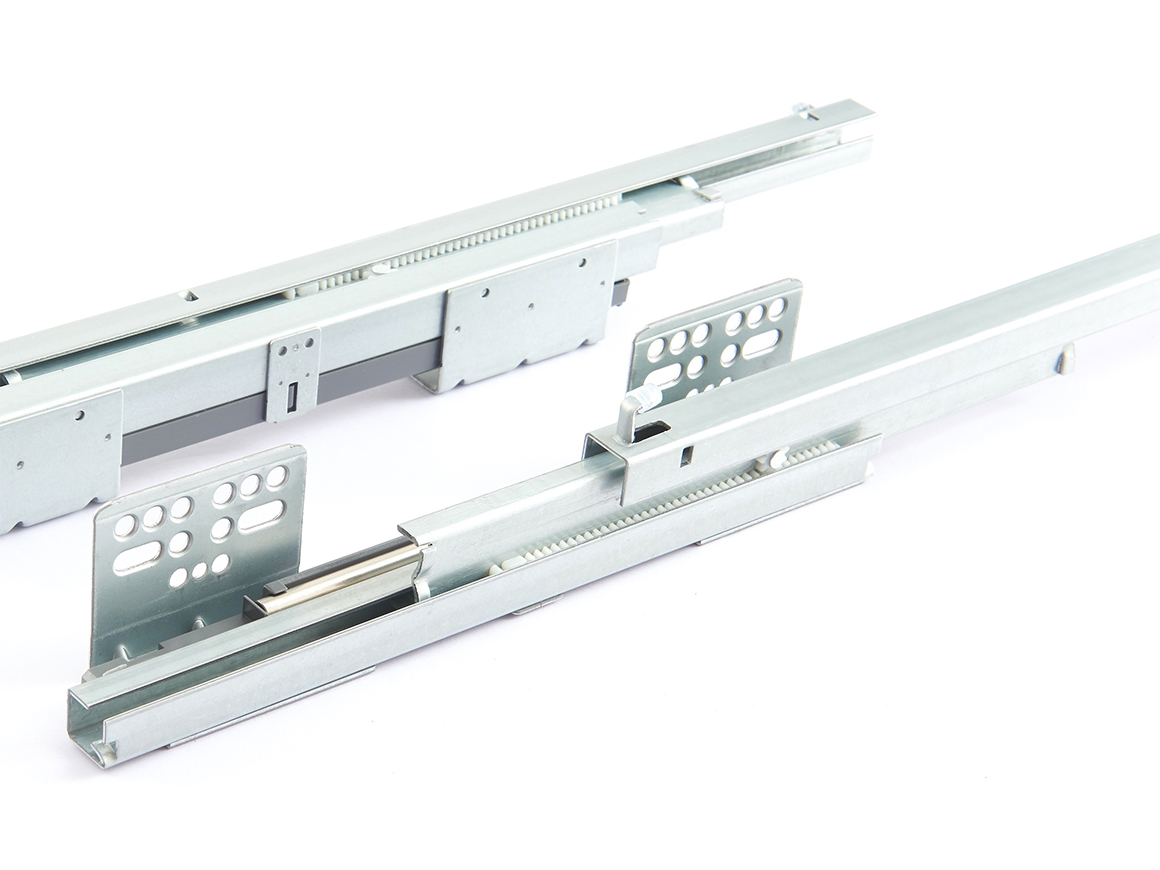

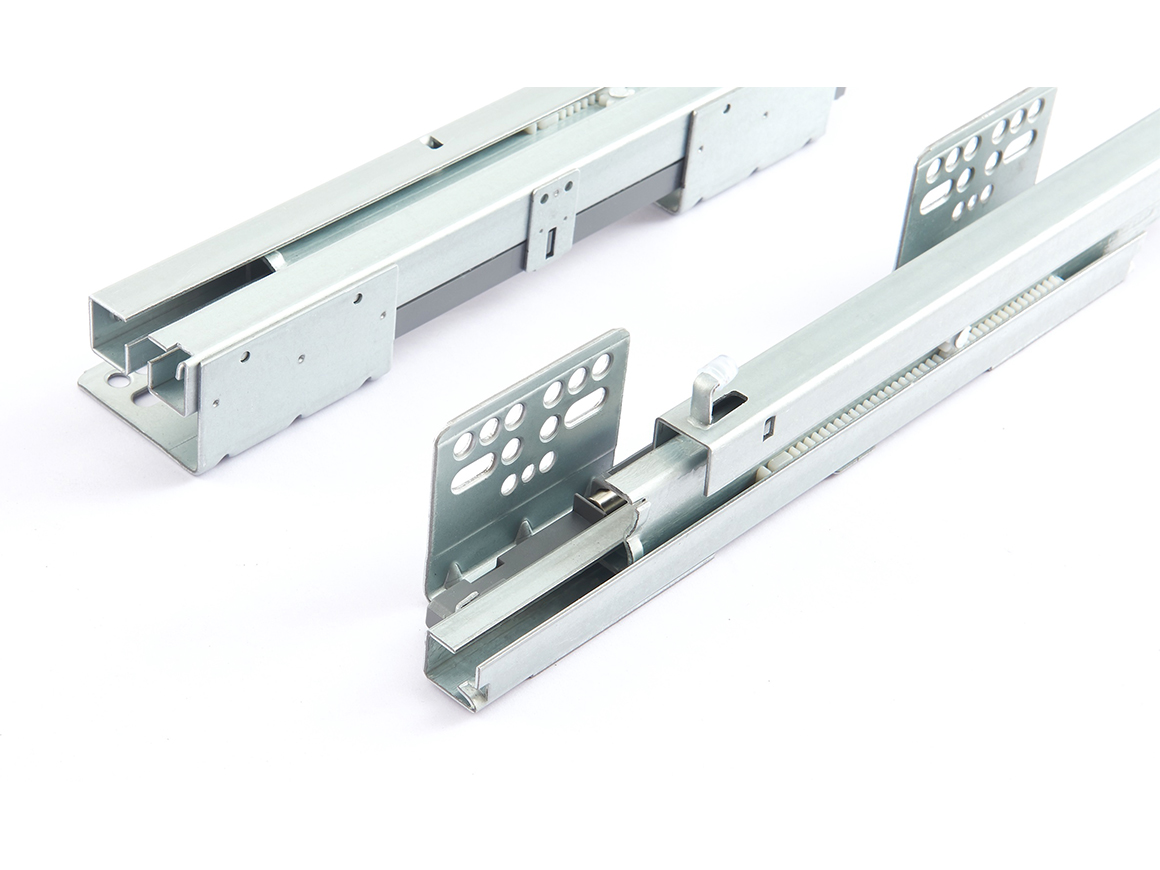

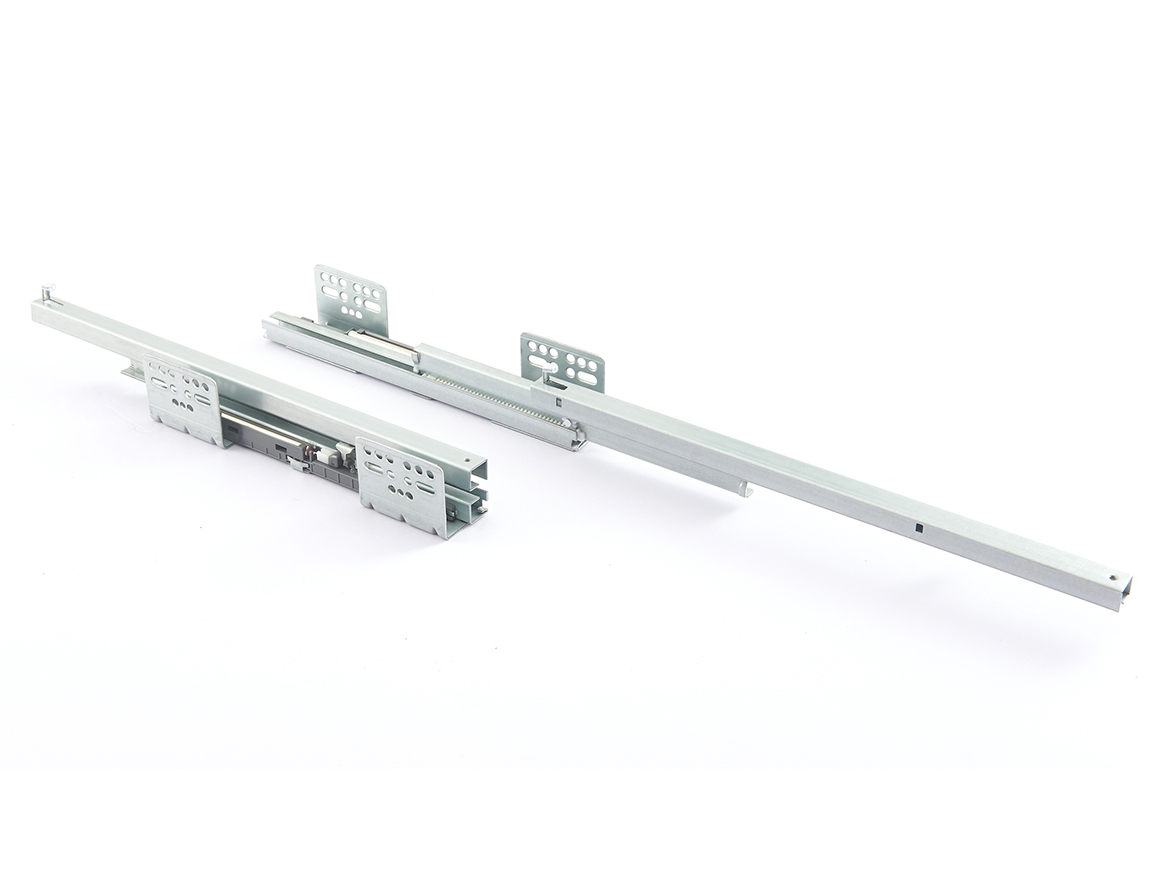

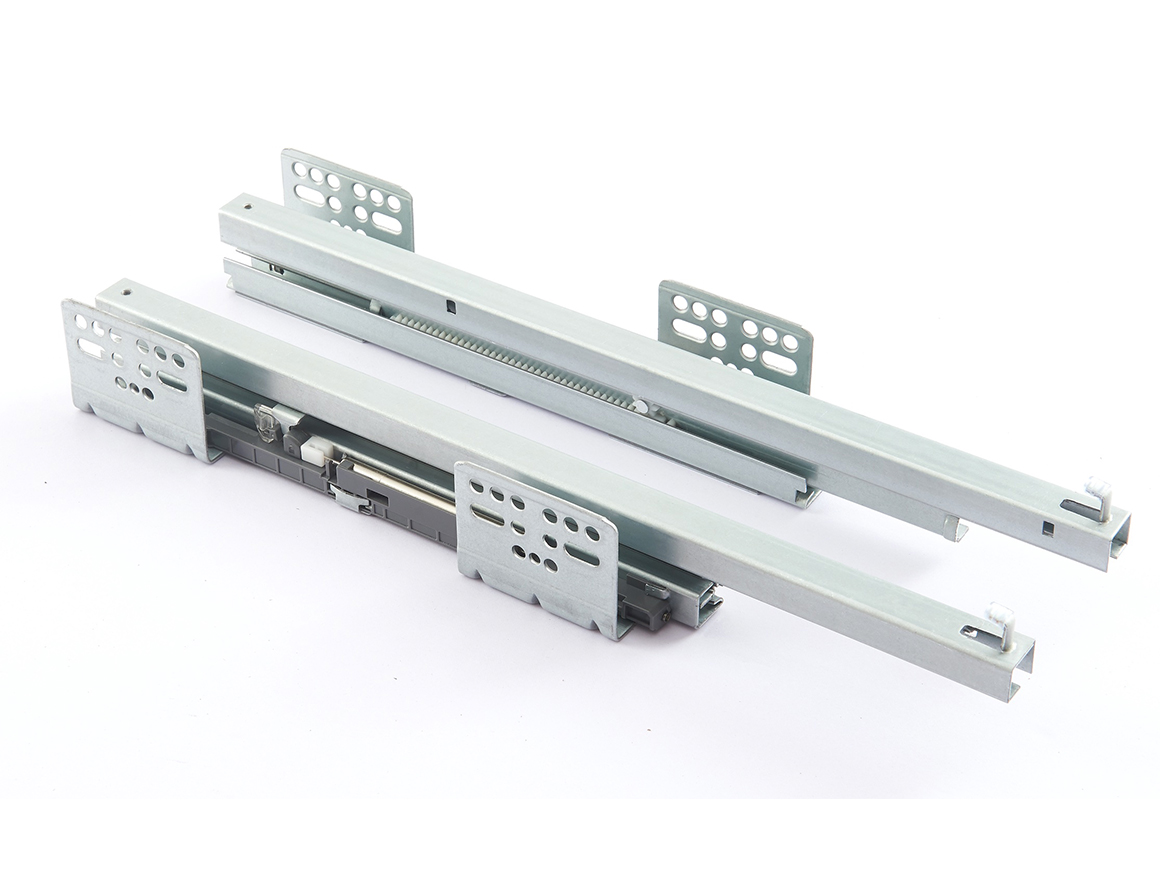

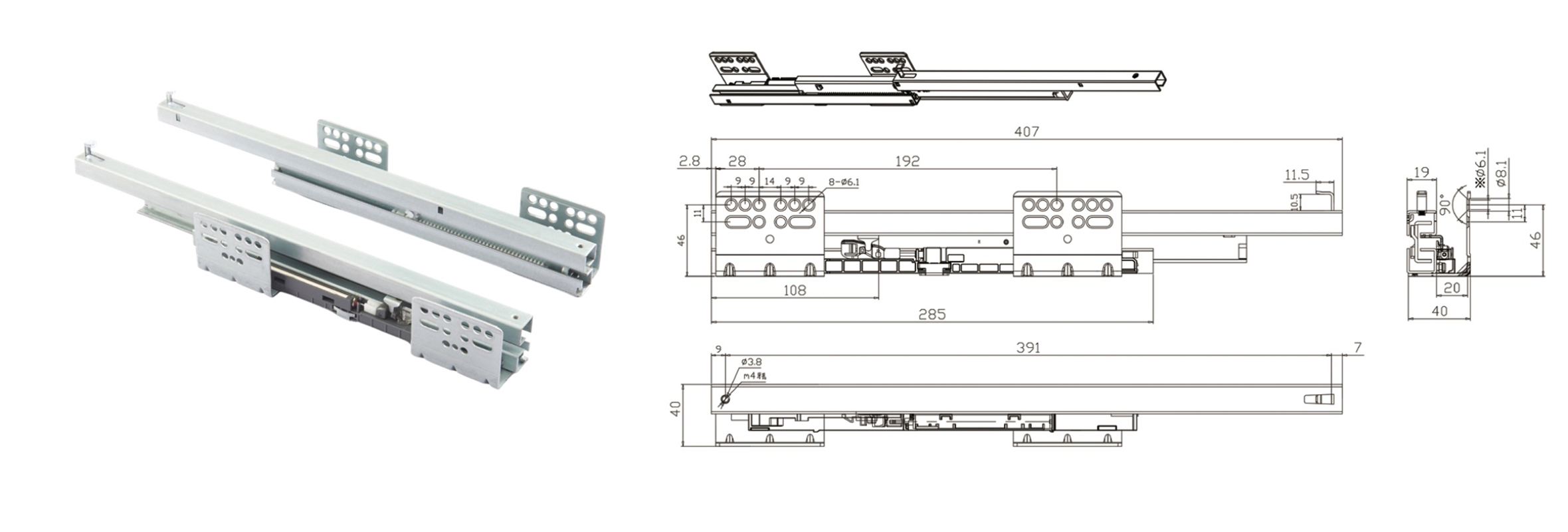

WLT-Y40 Full Extension Soft Close Under-mount Drawer Slide

Pull Out Wire Basket Under-Mount Drawer Slides

Specifications

FEATURES
– Soft Close Single Extension Under-Mount For Pull Out Wire Basket
– 40mm Width Drawer Slide Rail

APPLICATIONS
– Wood residential and commercial furniture with wirebasket needed.
– Drawers requiring concealed slides or soft-close
feature
SPECIFICATIONS
– Load Capacity: 35kgs
– Module: Soft-Close
– Mounting: Undermount
– Travel:Full Extension
– Type: Roller Bearing
– Finish: Galvanized Steel

RATING
– Load: 35kgs/75lbs.
– Compliance ANSI performance standards as
established by BIFMA, BHMA and KCMA
