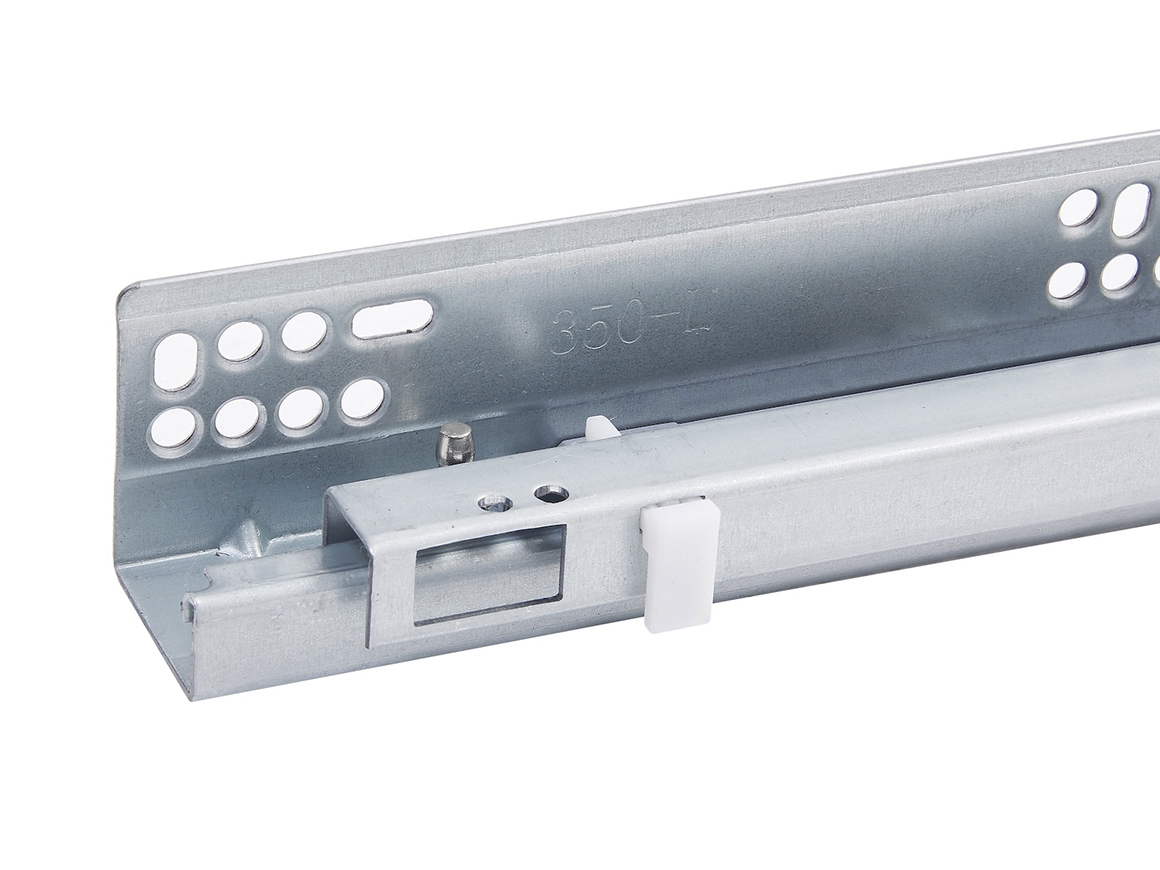

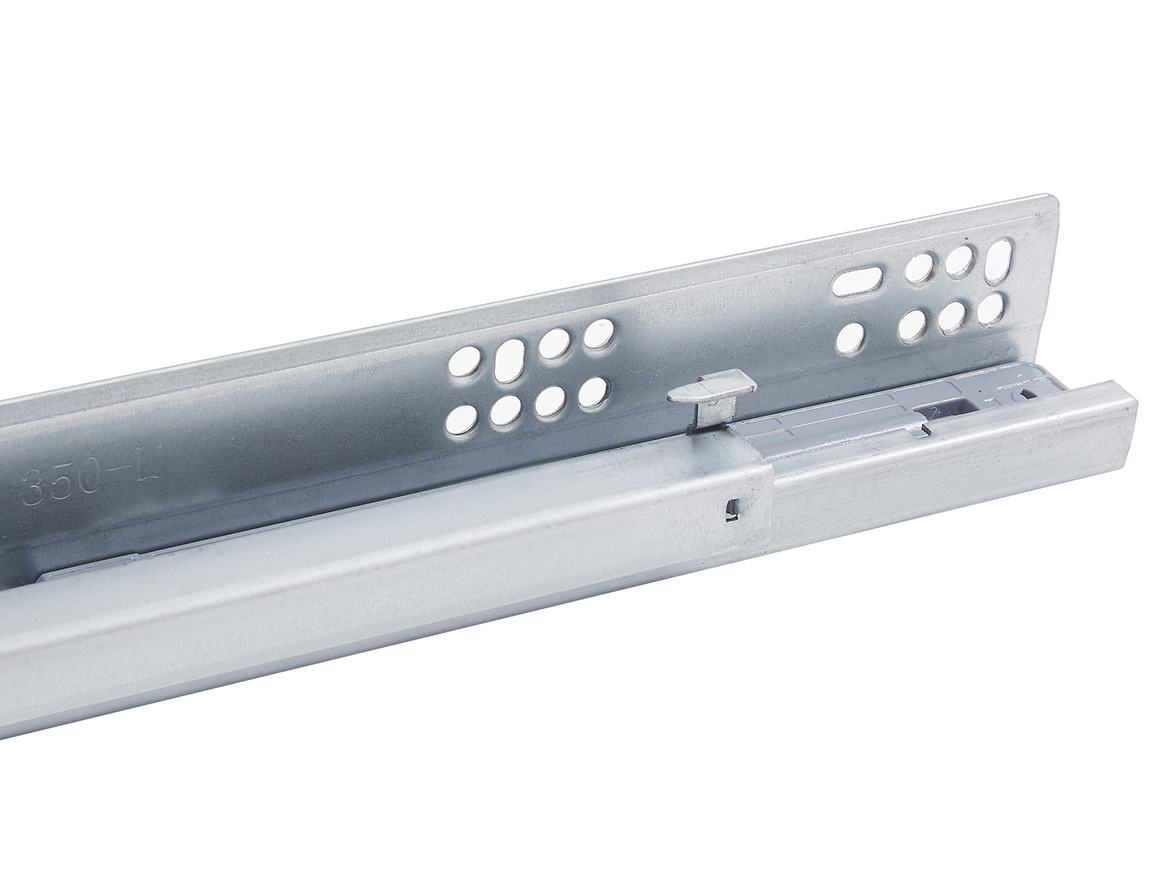

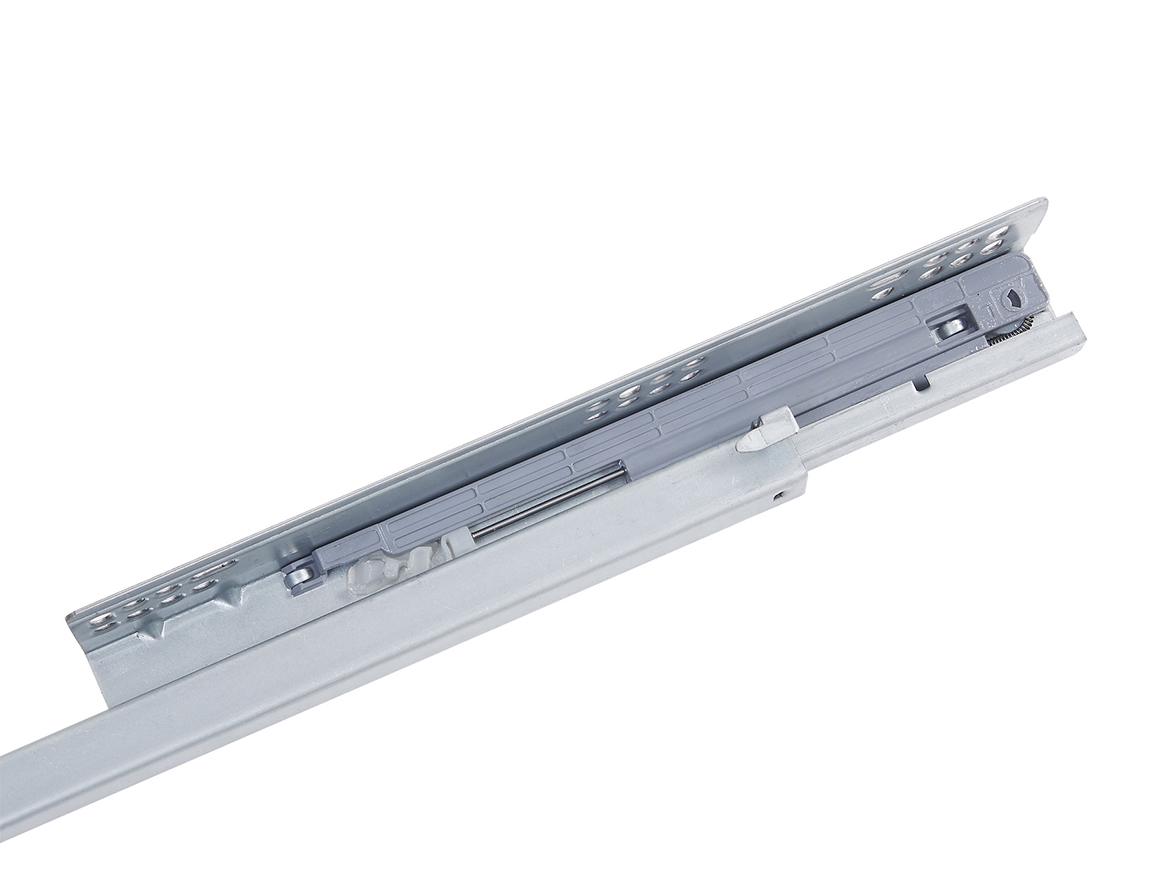

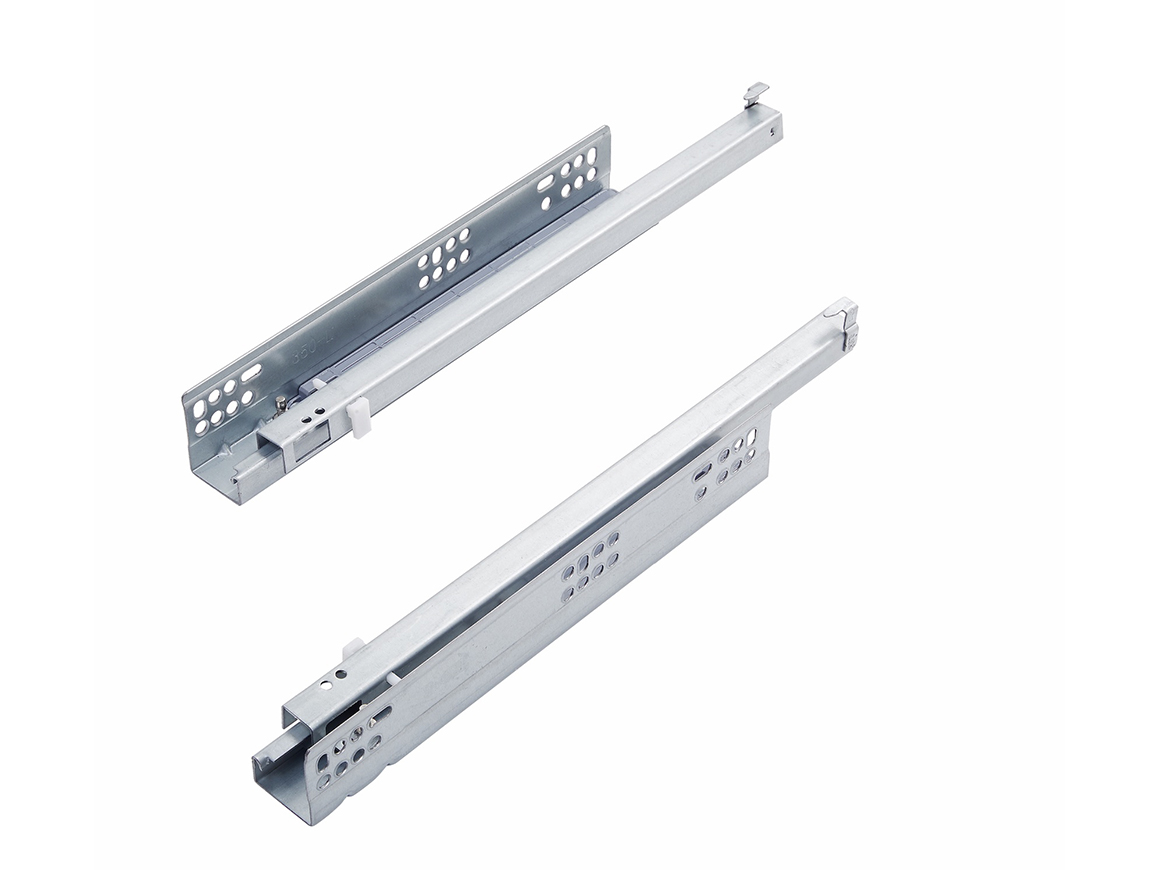

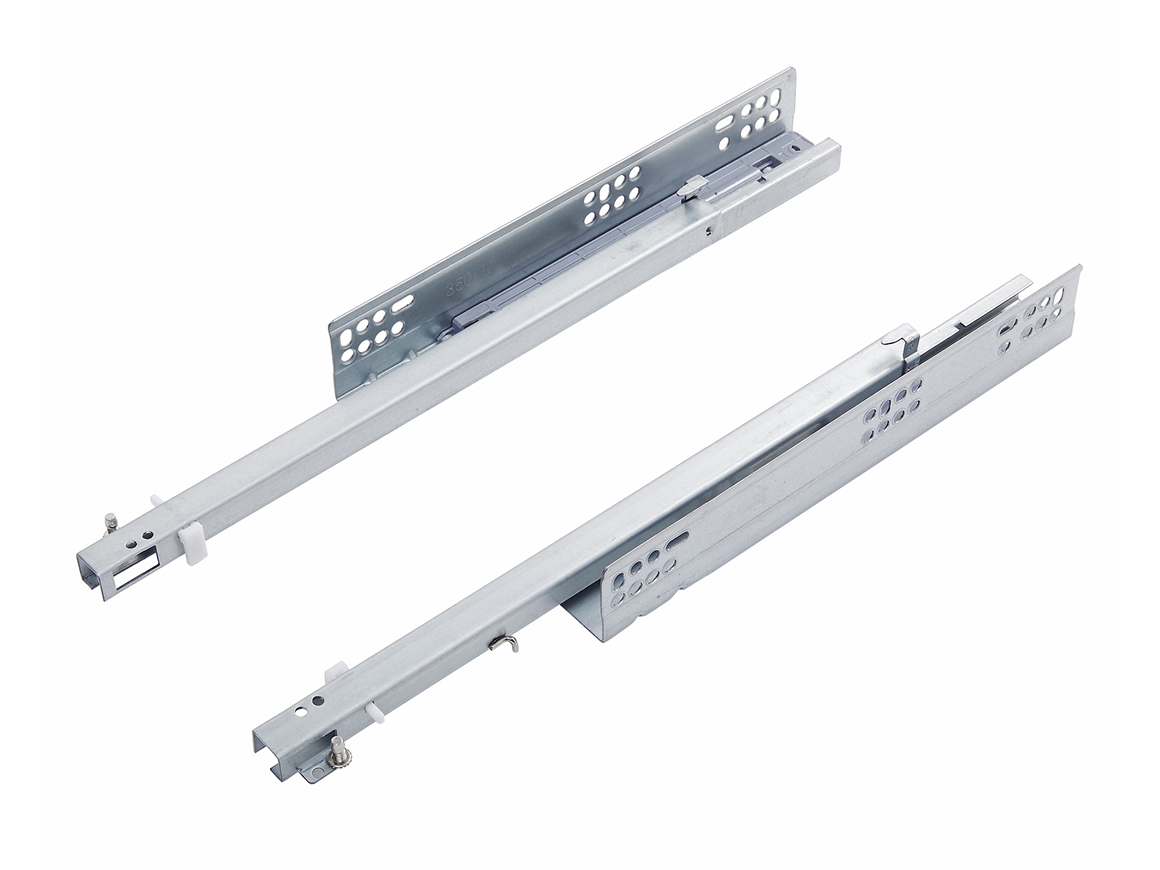

WLT-Y03 2-Fold Single Extension Push-to-Open Under-mount Drawer Slide

– For Frameless Cabinet

Specifications

FEATURES
– Push Open Single Extension Under-Mount For Frameless Cabinet
– Compatible with 1/2” to 5/8” drawer box material thickness

APPLICATIONS
– Wood residential and commercial furniture
– Drawers requiring concealed slides or soft-close
feature
SPECIFICATIONS
– Load Capacity: 35kgs

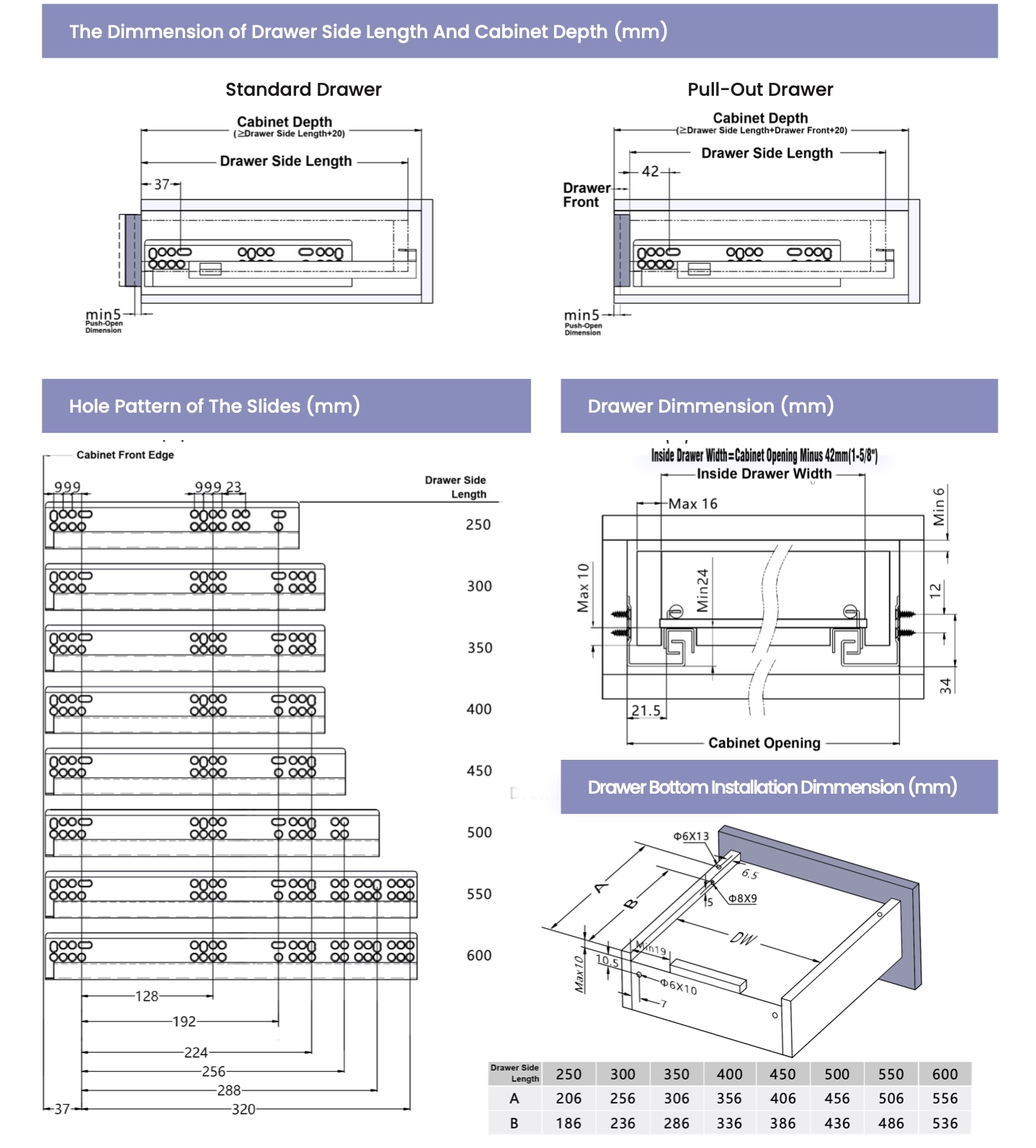

– Drawer Material Thickness: 1/2” to 5/8” – Length:300mm(12”)-600mm(24”)
– Module: Push-to-Open
– Mounting: Undermount
– Travel:Single Extension (2-Fold)
– Disconnect: Plug-in Pin
– Face-Frame Mounting: No
– Type: Roller Bearing
– Finish: Galvanized Steel

RATING
– Load: 35kgs/75lbs.
– Compliance ANSI performance standards as
established by BIFMA, BHMA and KCMA
