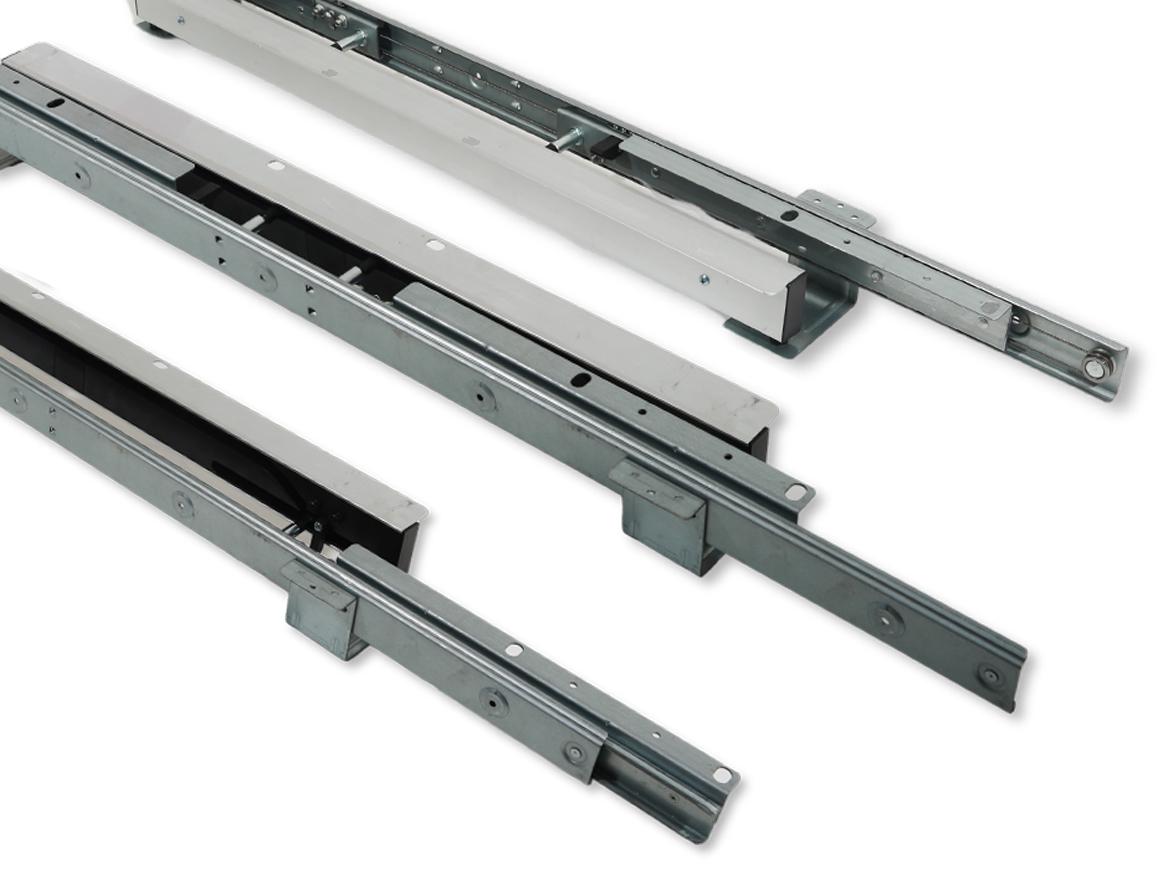

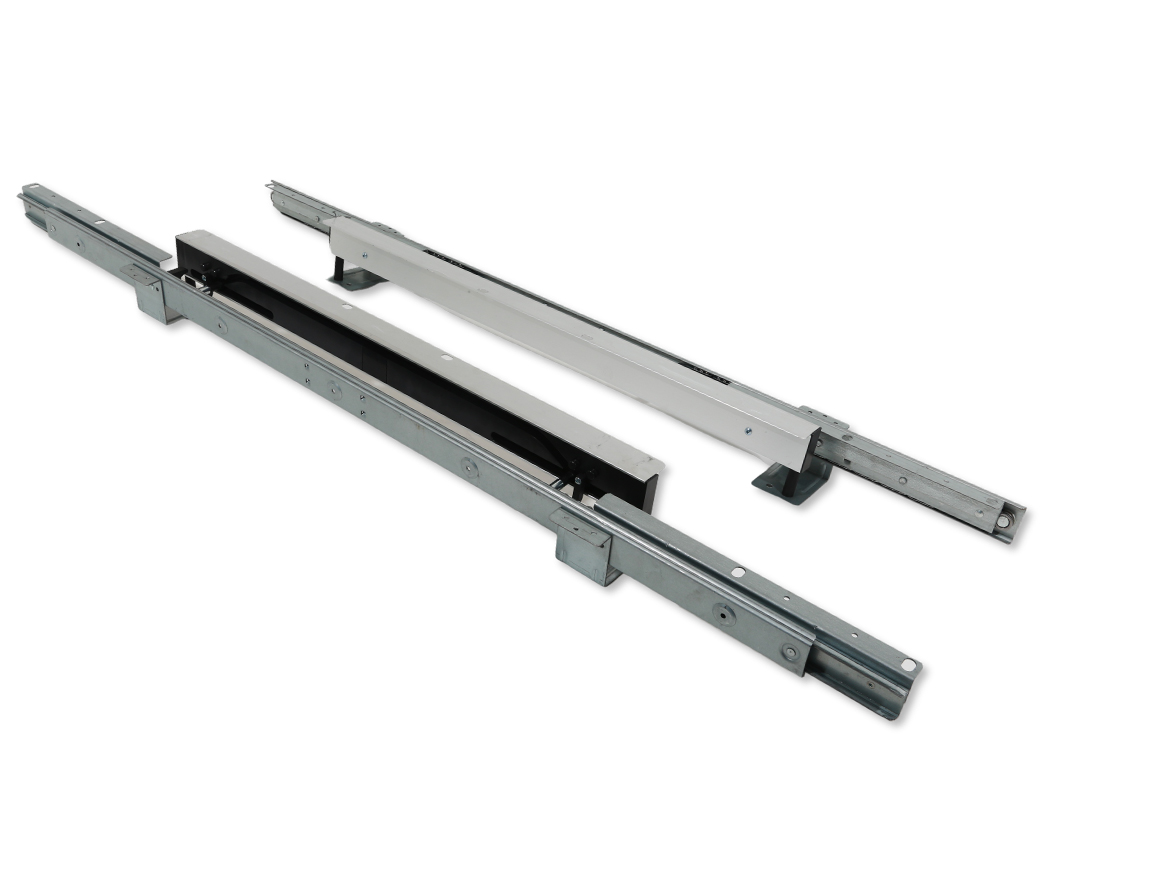

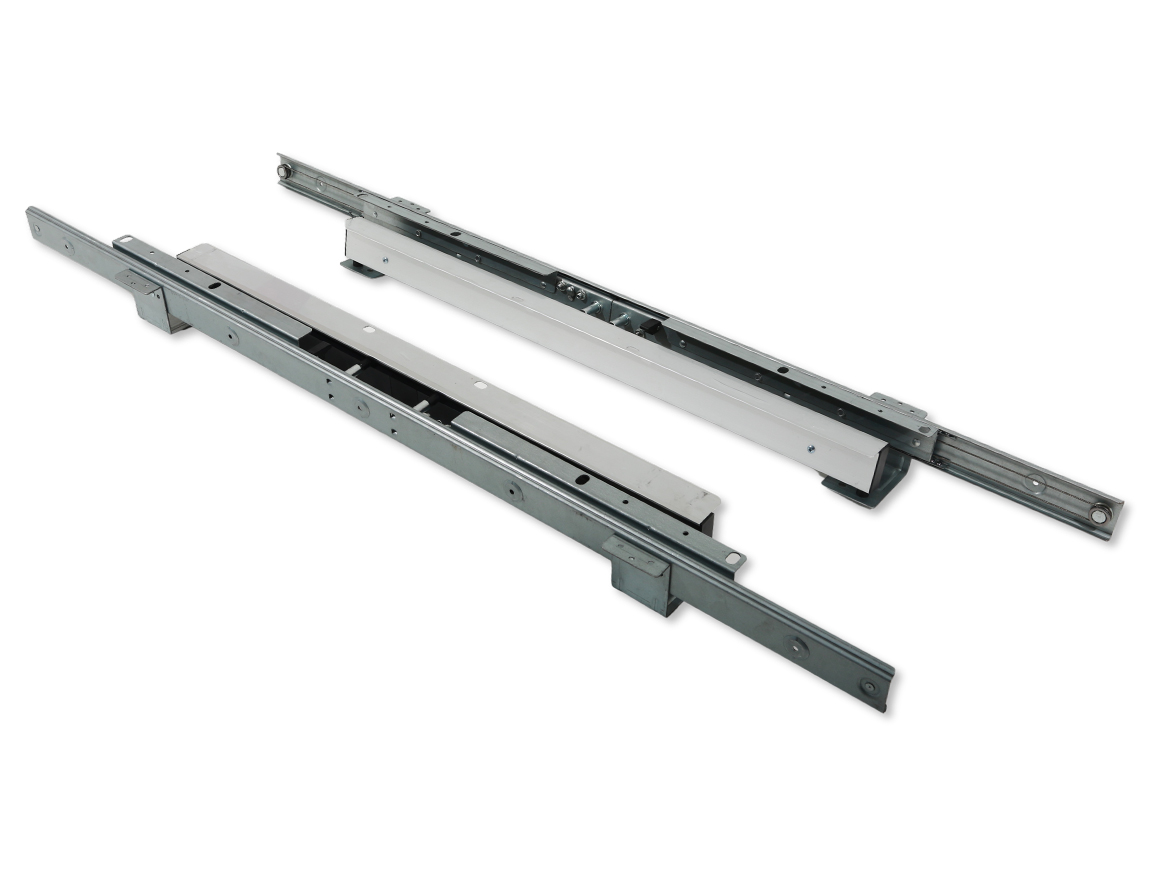

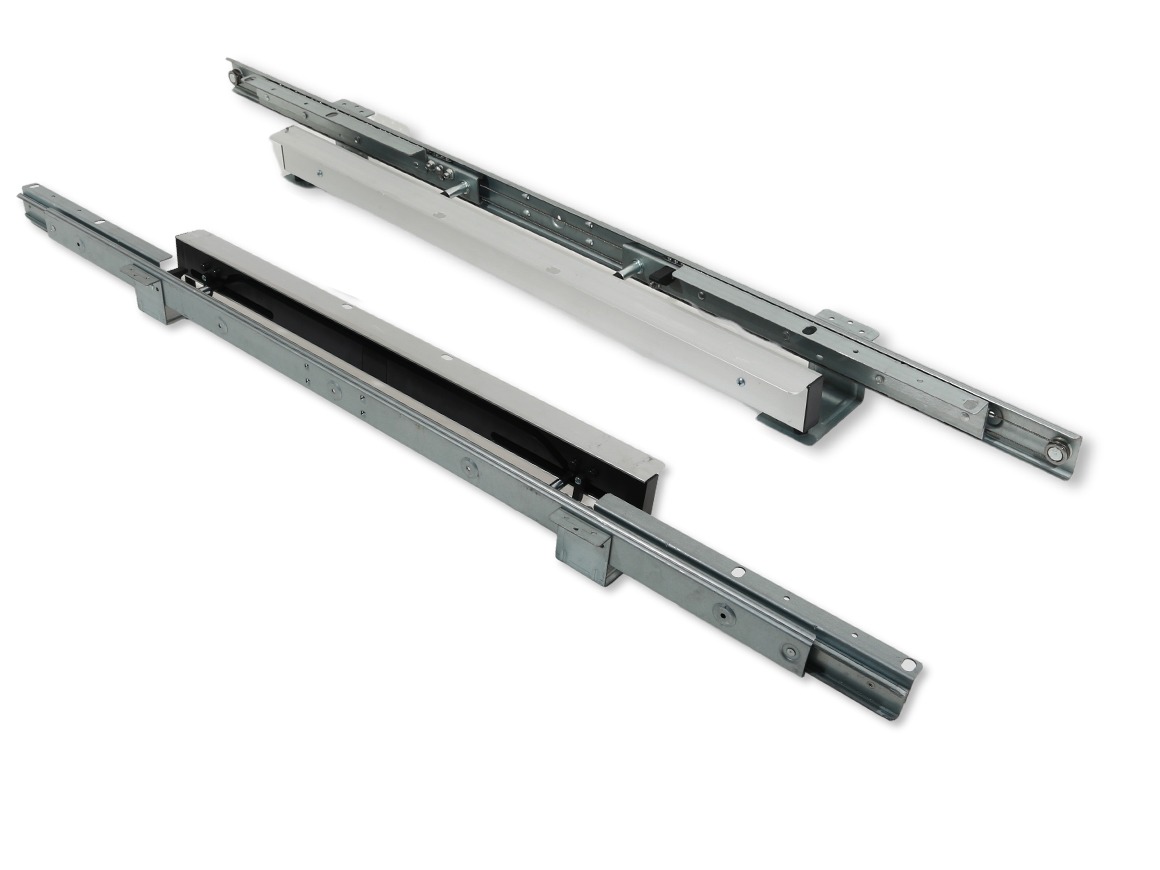

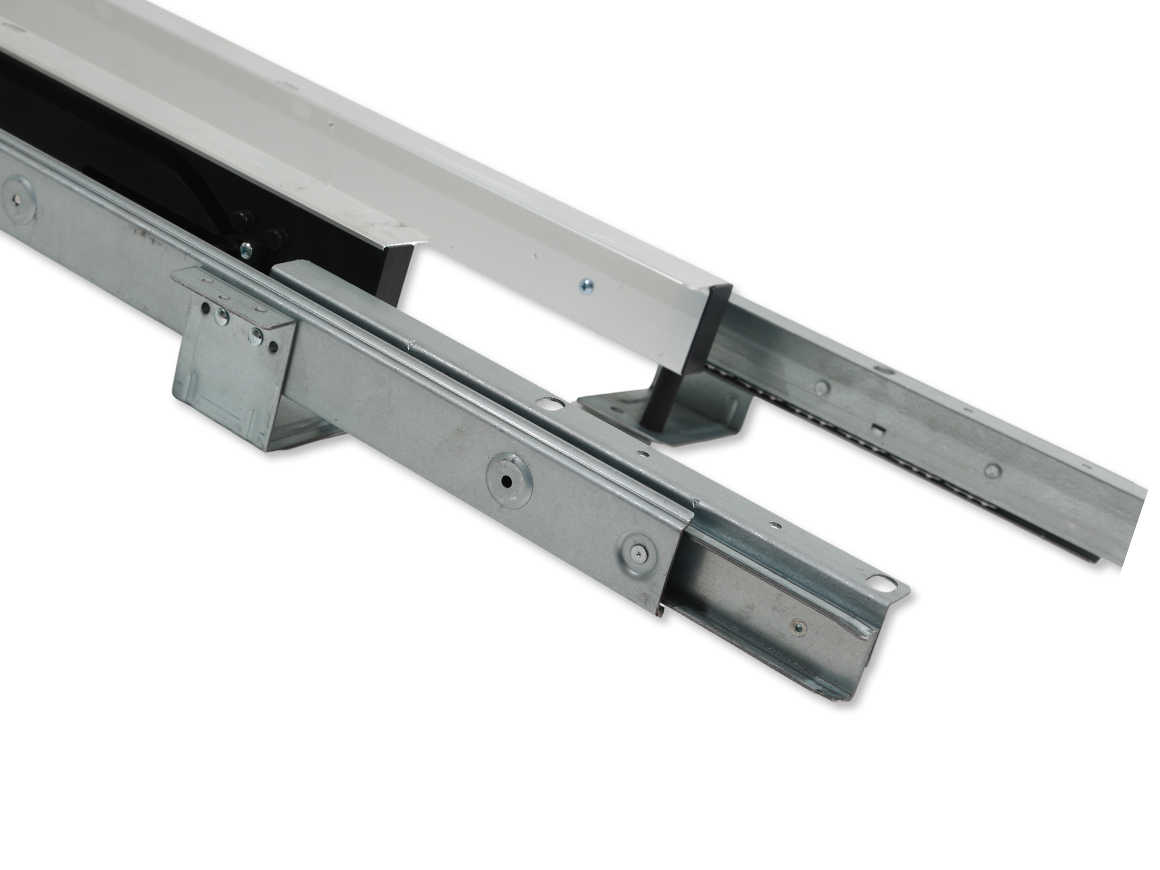

WLT-T47TT-1350 Automatic Table Insert Lifting Telescopic Slide

90kgs Load Rate Table Transformation Mechanism

Specifications

Table transformation mechanism for auto-lift table insert
This table slide is designed for 1600 – 1800mm dining tables, capable of extending to 2200 – 2400mm.
Type of mechanism: Automatic lift
Max insert thickness: 25mm
Synchronicity: Synchronous with stopper
Profile height: 47 mm
Maximum load: 90kgs
Length of folded mechanism:1350mm
Maximum insert size:750mm
Length of the extended mechanism:1424mm
Mounting platform size: 800×20

Package info:

– 2 pairs /carton box
– Carton box size: 1175*216*146mm
-Net weight: 14.9kgs/carton
-Gross weight: 15.2kgs/carton
