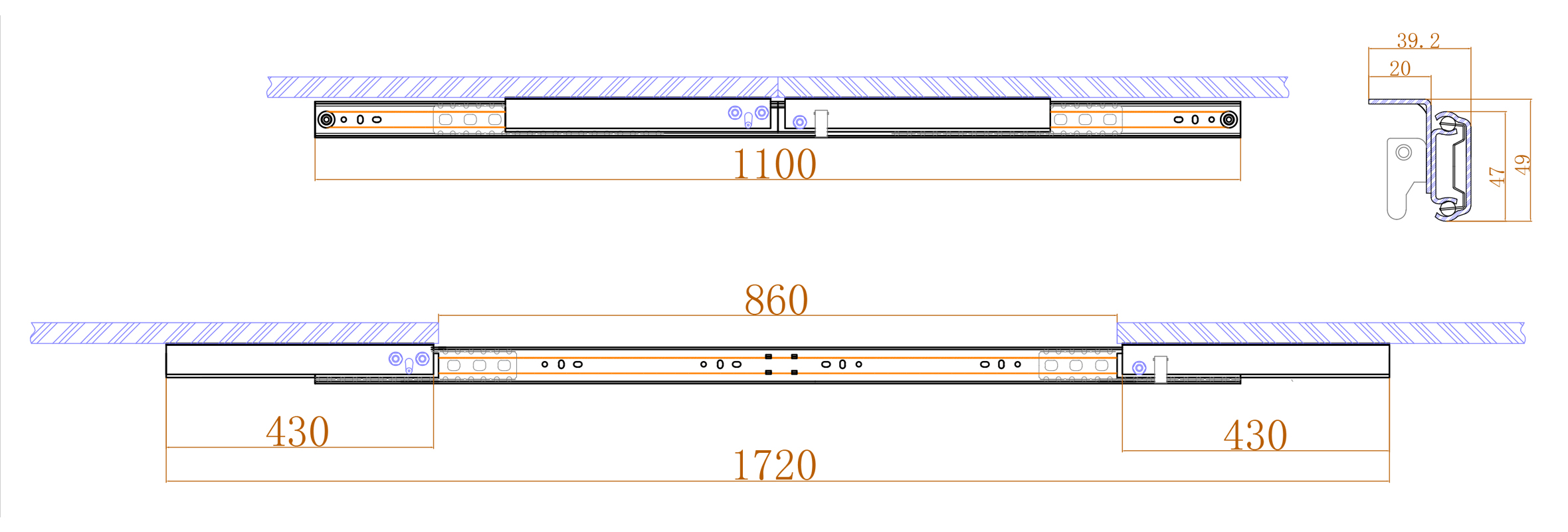

WLT-T47-1100-430ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
1.1Meters open to 1.7Meters long Synchronous extension with stopper slide rails for table
Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 47MM
LENGTH OF FOLDED MECHANISM:1100MM
LENGTH OF EXTENDED MECHANISM: 1720MM
SIZE OF MOUNTING PLATE: 430x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 860MM
INSERT SIZE (RECOMMENDED) 2x400MM
LOAD RATE: 90KGS
