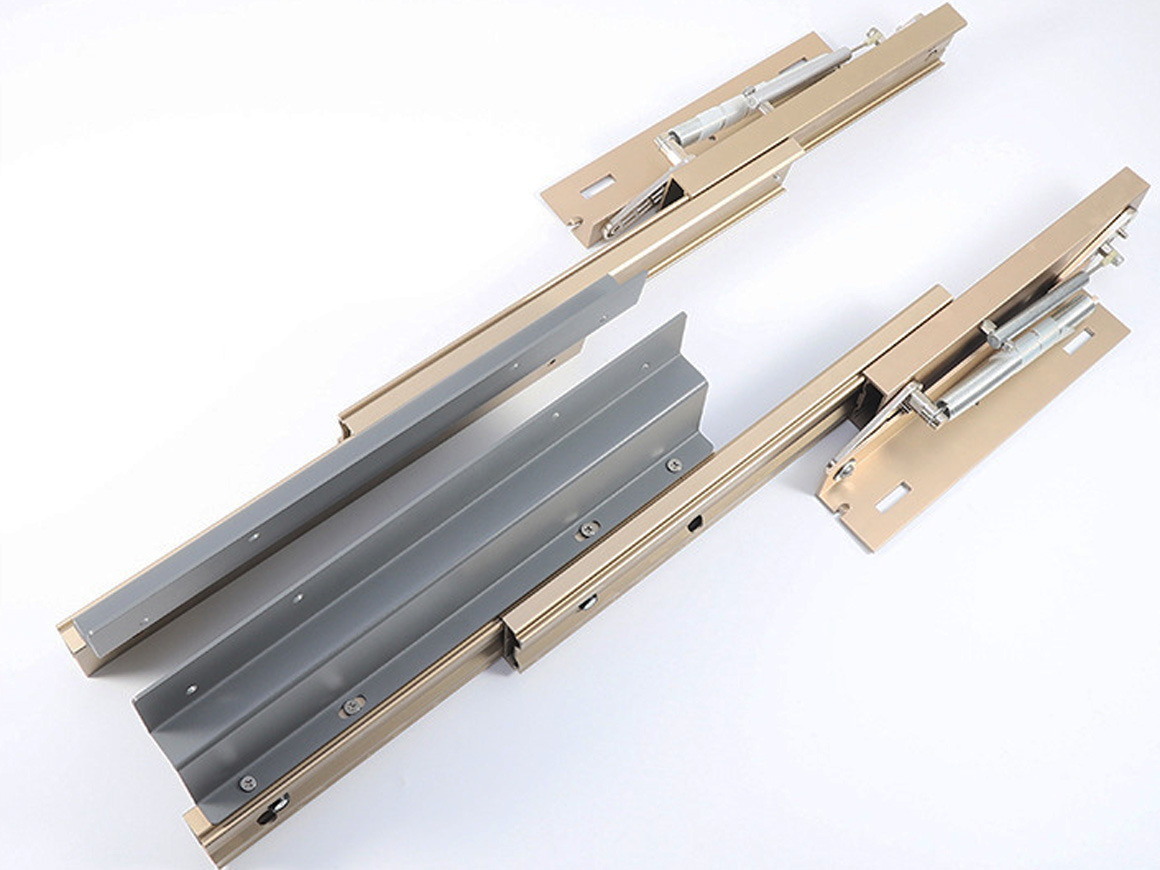

WLT-T35-700-260ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
700mm open to 1020mm long Synchronous Extension with stopper slide rails for tables

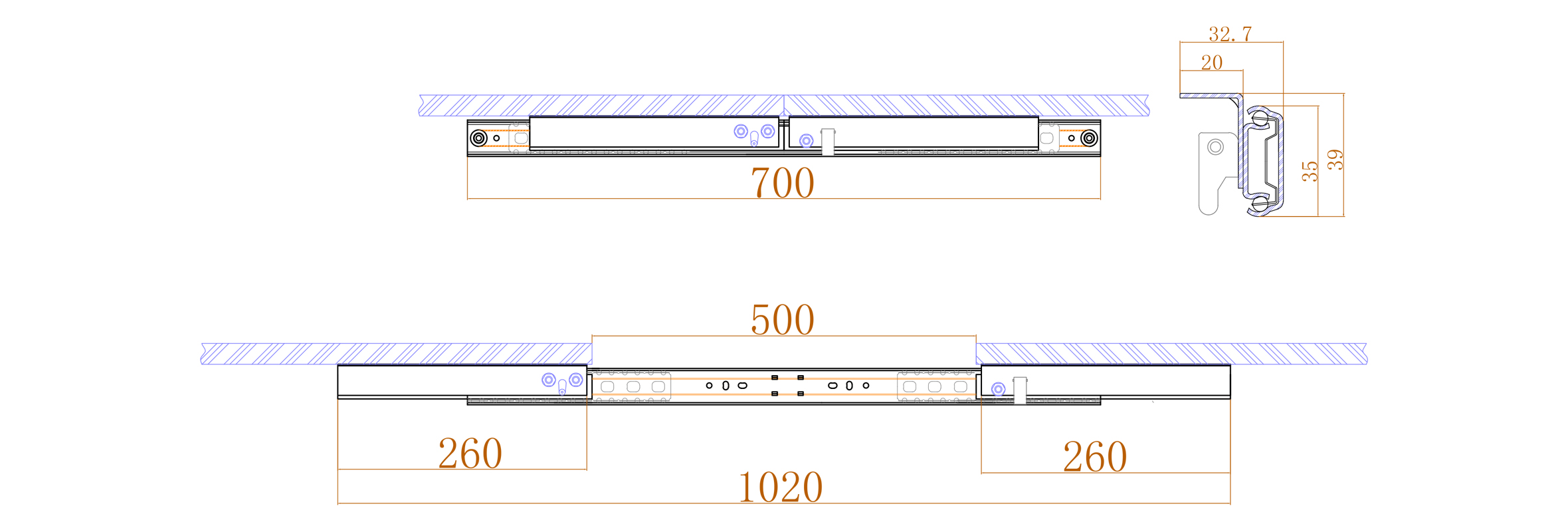

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:700MM
LENGTH OF EXTENDED MECHANISM: 1020MM
SIZE OF MOUNTING PLATE: 260x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 500MM
INSERT SIZE (RECOMMENDED) 470MM
LOAD RATE: 60KGS
