WLT-T35-610-240ST EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
610mm open to 890mm long Synchronous Extension with stopper slide rails for tables

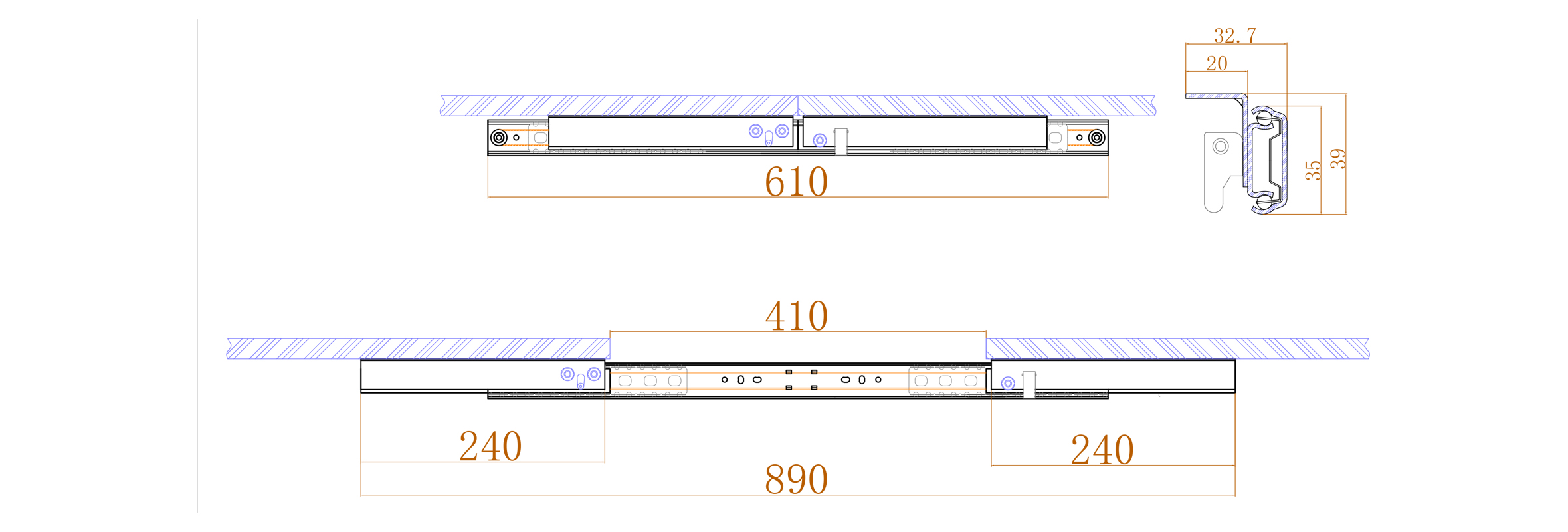

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:610MM
LENGTH OF EXTENDED MECHANISM: 890MM
SIZE OF MOUNTING PLATE: 240x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 410MM
INSERT SIZE (RECOMMENDED) 380MM
LOAD RATE: 60KGS
