WLT-T35-600-250 EXTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
600mm open to 900mm long Synchronous Extension with stopper slide rails for tables

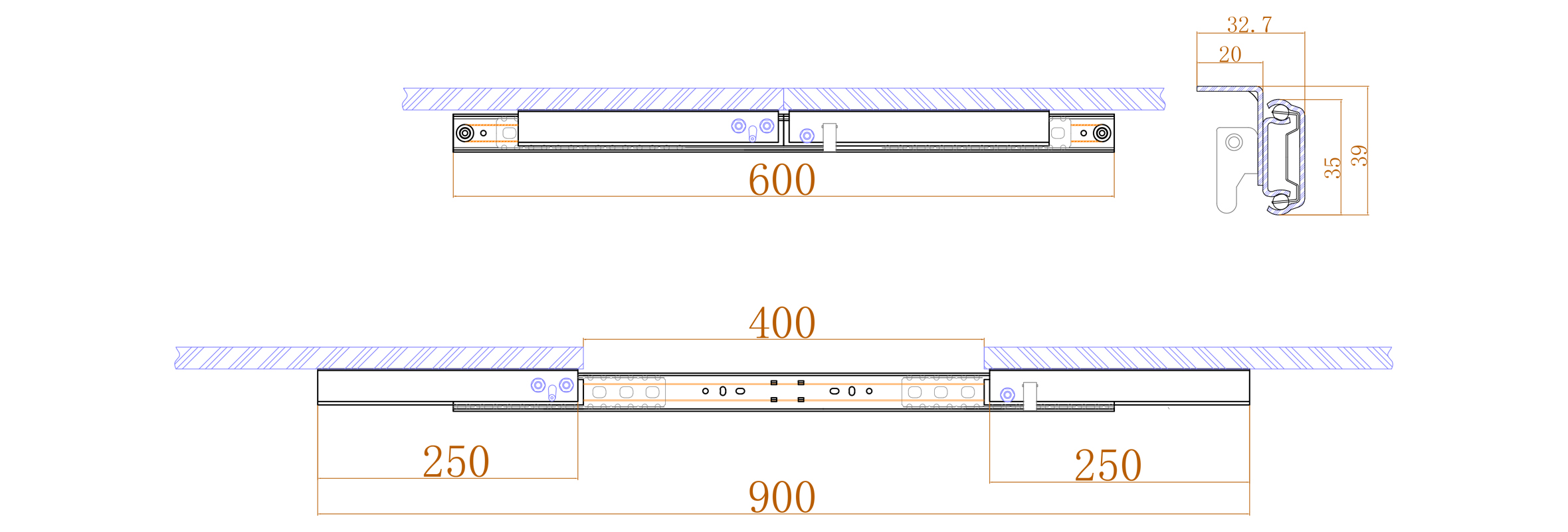

Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM
LENGTH OF FOLDED MECHANISM:600MM
LENGTH OF EXTENDED MECHANISM: 900MM
SIZE OF MOUNTING PLATE: 250x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 400MM
INSERT SIZE (RECOMMENDED) 370MM
LOAD RATE: 60KGS
