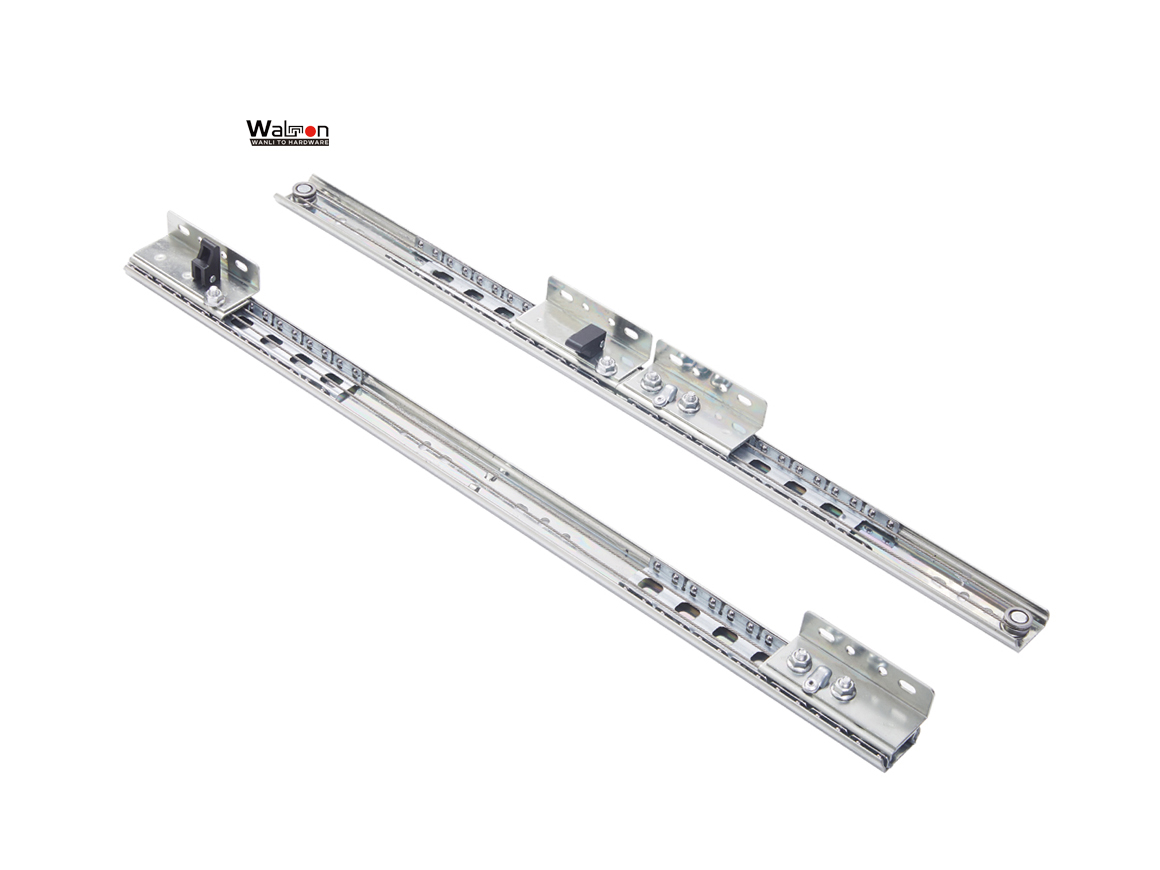

WLT-T35-560-80 INTERNAL MOUNTING SYNCHRONOUS EXTENSION TABLE SLIDES
Synchronous extension with stopper slide rails for table
Specifications
SYNCHRONISM: Synchronous
PROFILE HEIGHT: 35MM

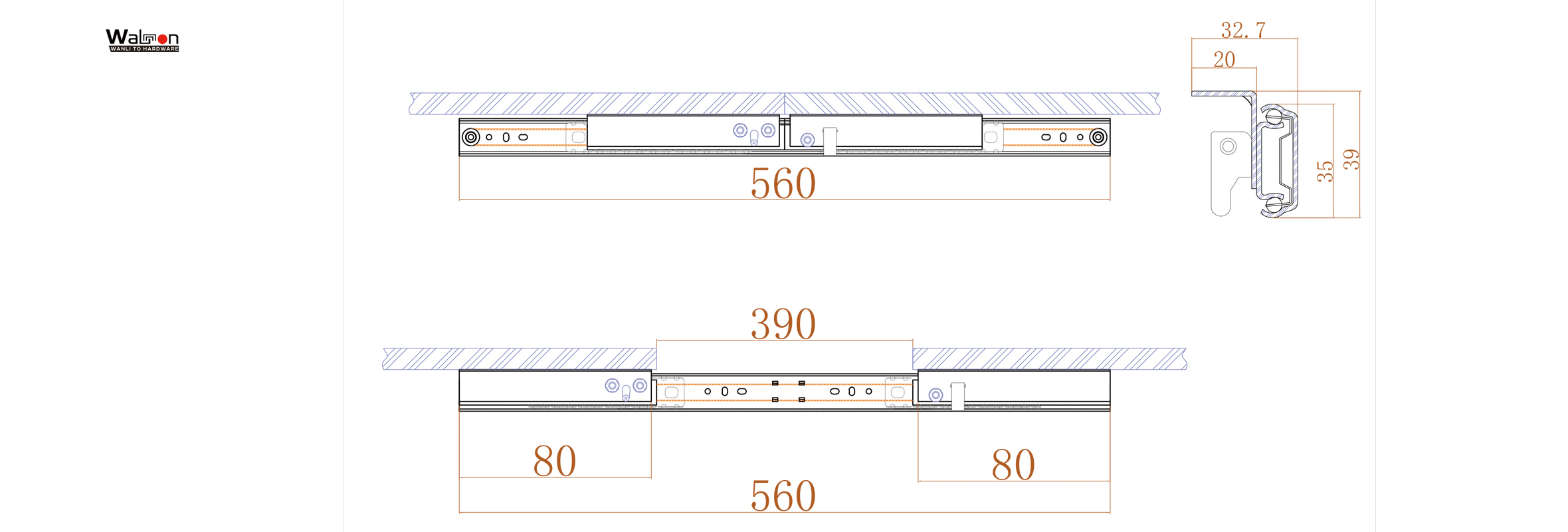

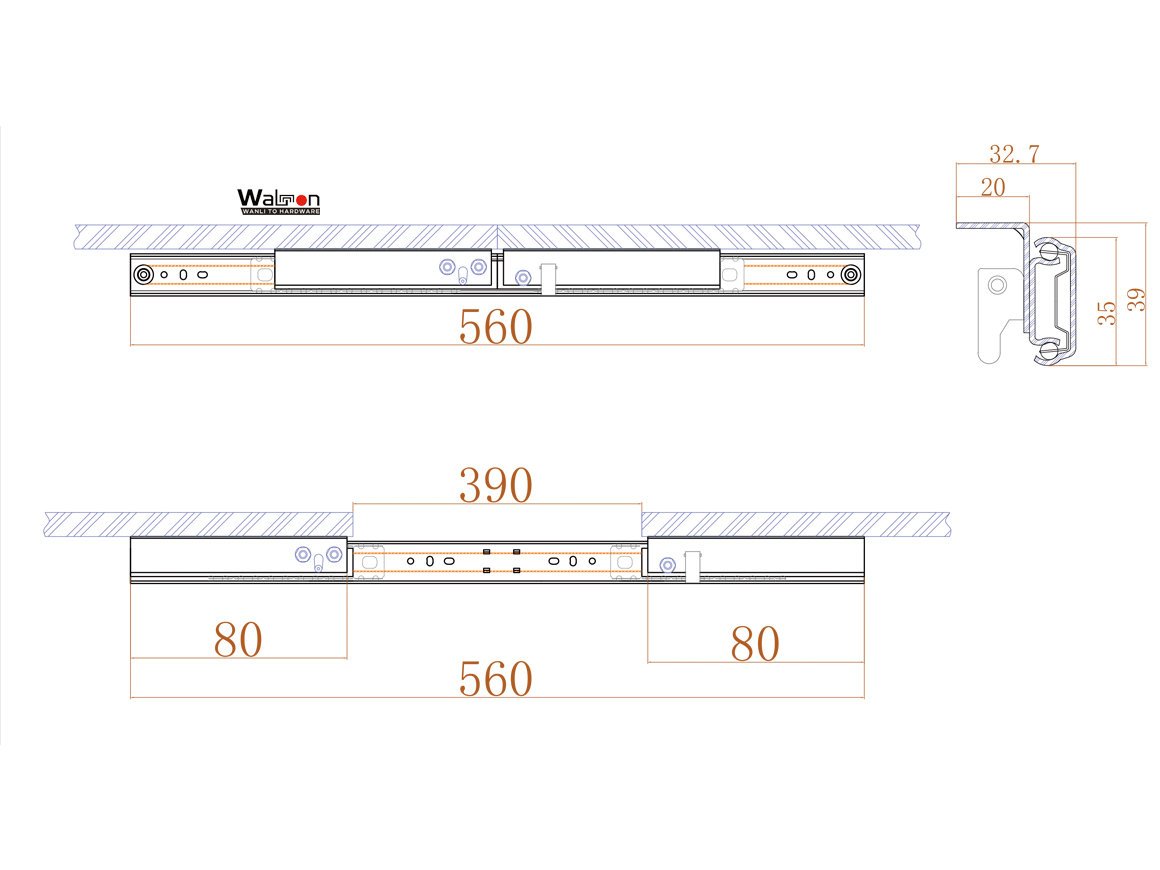

LENGTH OF FOLDED MECHANISM: 560MM
LENGTH OF EXTENDED MECHANISM: 560MM
SIZE OF MOUNTING PLATE: 80x20MM
SIZE BETWEEN CARRIAGES AT MAXIMUM EXTENSION: 390MM
LOAD RATE: 60KGS
INSERT SIZE (RECOMMENDED) 360MM
