WLT-06D 3-Fold Full Extension Soft-Close Under-mount Drawer Slide

– For Frameless Cabinet

Specifications

FEATURES
– Soft Close Full Extension Under-Mount For Frameless Cabinet
– One dimensional front release lever adjustment. Height.
– Compatible with 1/2” to 5/8” drawer box material thickness

APPLICATIONS
– Wood residential and commercial furniture
– Drawers requiring concealed slides or soft-close
feature

SPECIFICATIONS
– Load Capacity: 35kgs
– Drawer Material Thickness: 1/2” to 5/8” – Length:300mm(12”)-600mm(24”)
– Module: Soft-Close
– Mounting: Undermount
– Travel:Full Extension (3-Fold)
– Disconnect: Lever Release
– Face-Frame Mounting: No
– Type: Roller Bearing
– Finish: Galvanized Steel
– Drawer Height Adjustment: 0~+3mm

RATING
– Load: 35kgs/75lbs.
– Compliance ANSI performance standards as
established by BIFMA, BHMA and KCMA

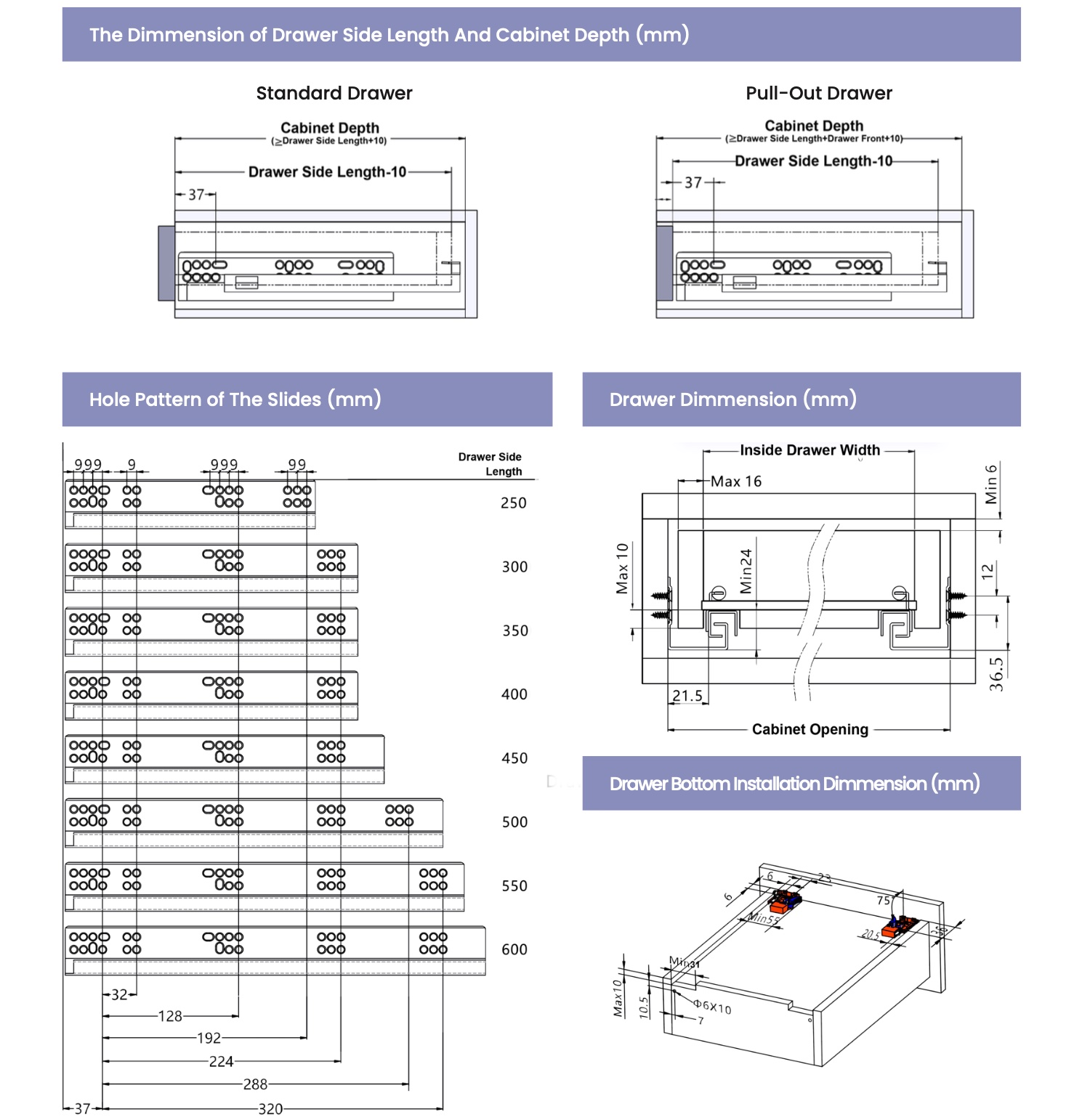

Drawing

Y06D 2
