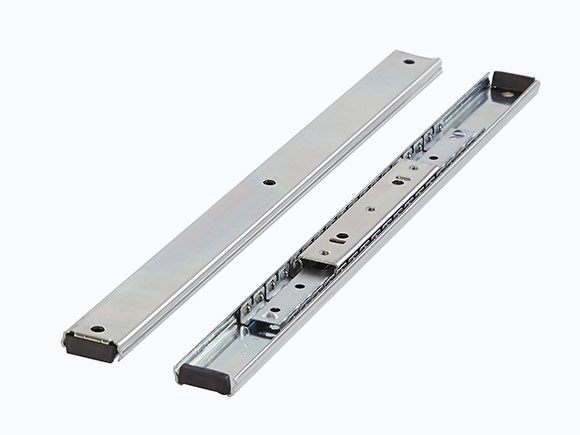

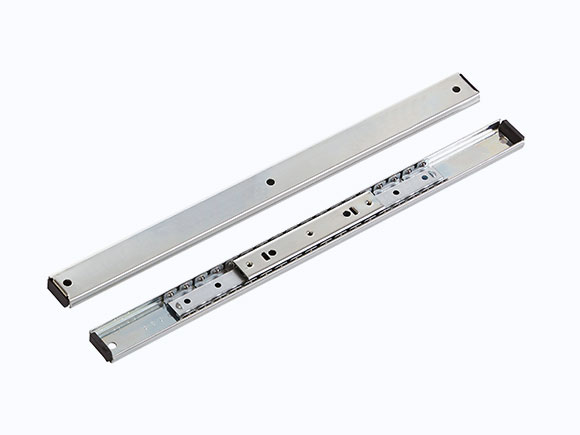

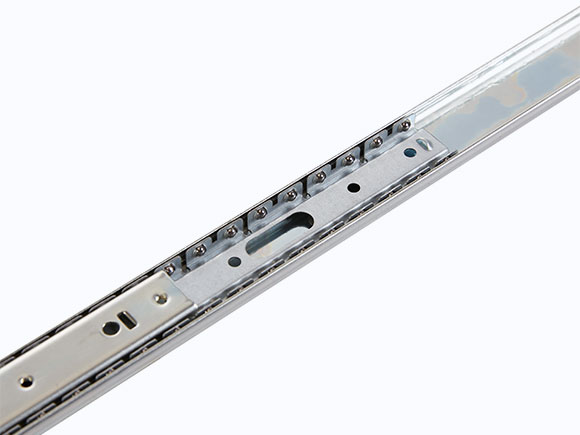

WLT-27003 27mm Linear Drawer Slides
Pocket Door Slides, Width at 27mm and Customizable Length.Ready for Easy-to-Install Slides
Specifications
Load rating: 30LBS
Extension: N/A
Mounting arrangement: Side Mount.
Length range: 250 ~ 600mm
Finishes available: Clear Zinc, Yellow Zinc, Black Electric Dipping
Applications: CNC machines, 3D printers, robotics, automation systems.
| Feature | Telescopic Slides | Linear Slides |
| Primary Function | Access & Extension | Precise Linear Motion |
| Construction | Nested, interlocking rails (2 or 3 sections). | A single, fixed base and a moving carriage. |
| Movement | Telescoping action (like a telescope or drawer slide). | A short carriage slides along a longer, fixed base. |
| Extension Length | Long: 75% (Partial) to 100%+ (Full) of closed length. | Very Short: A small fraction of the total slide length. |
| Load Handling | Excellent at handling cantilevered loads (loads that hang off the end). | Best with centered, in-line loads. Poor with cantilevered loads due to torque. |
| Typical Applications | Drawers, server racks, appliance shelves, access panels. | CNC machines, 3D printers, robotics, automation systems. |
