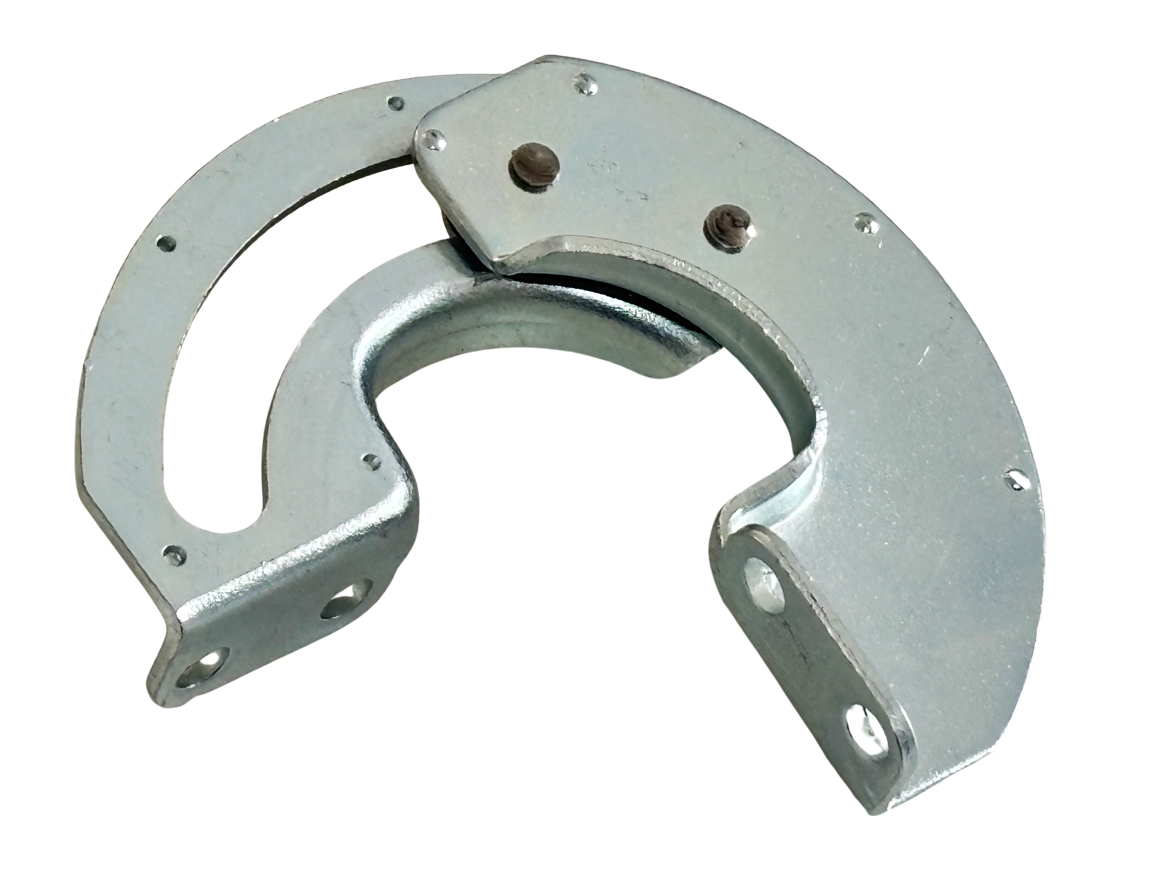

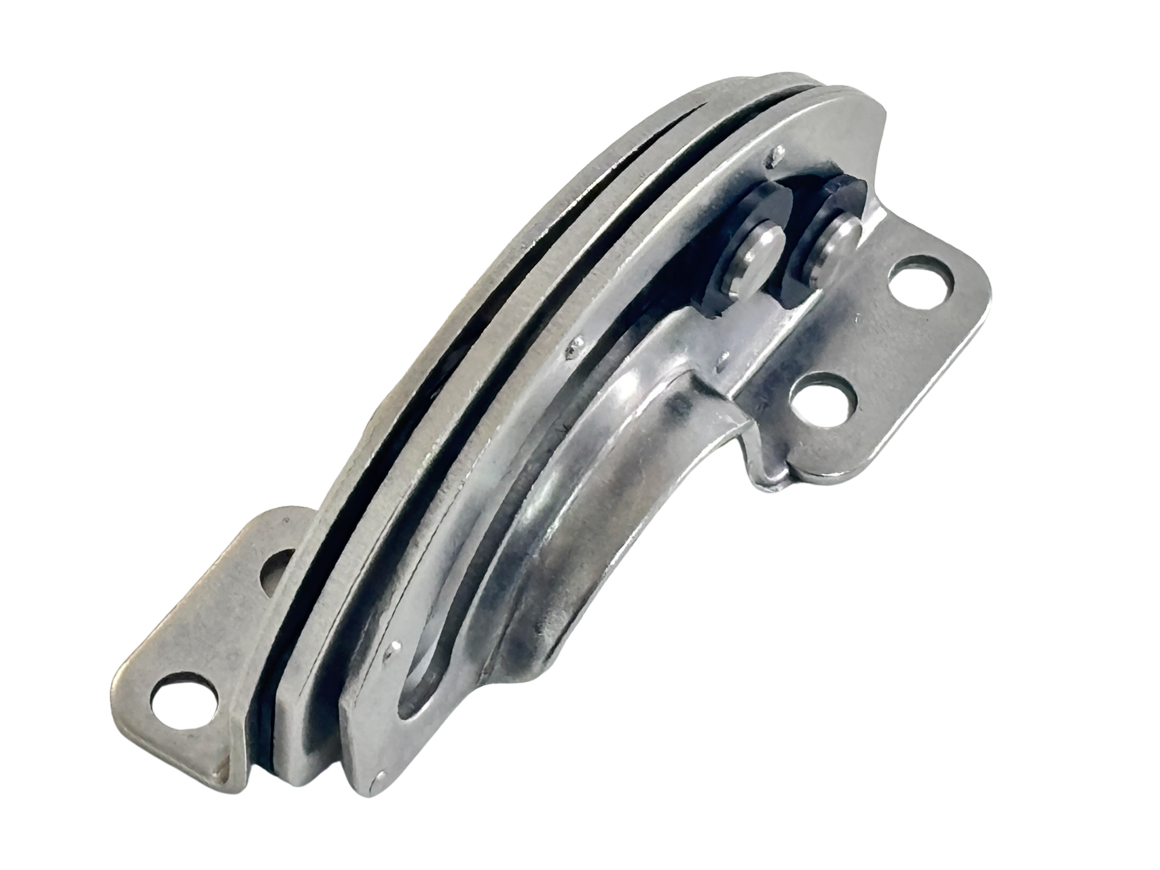

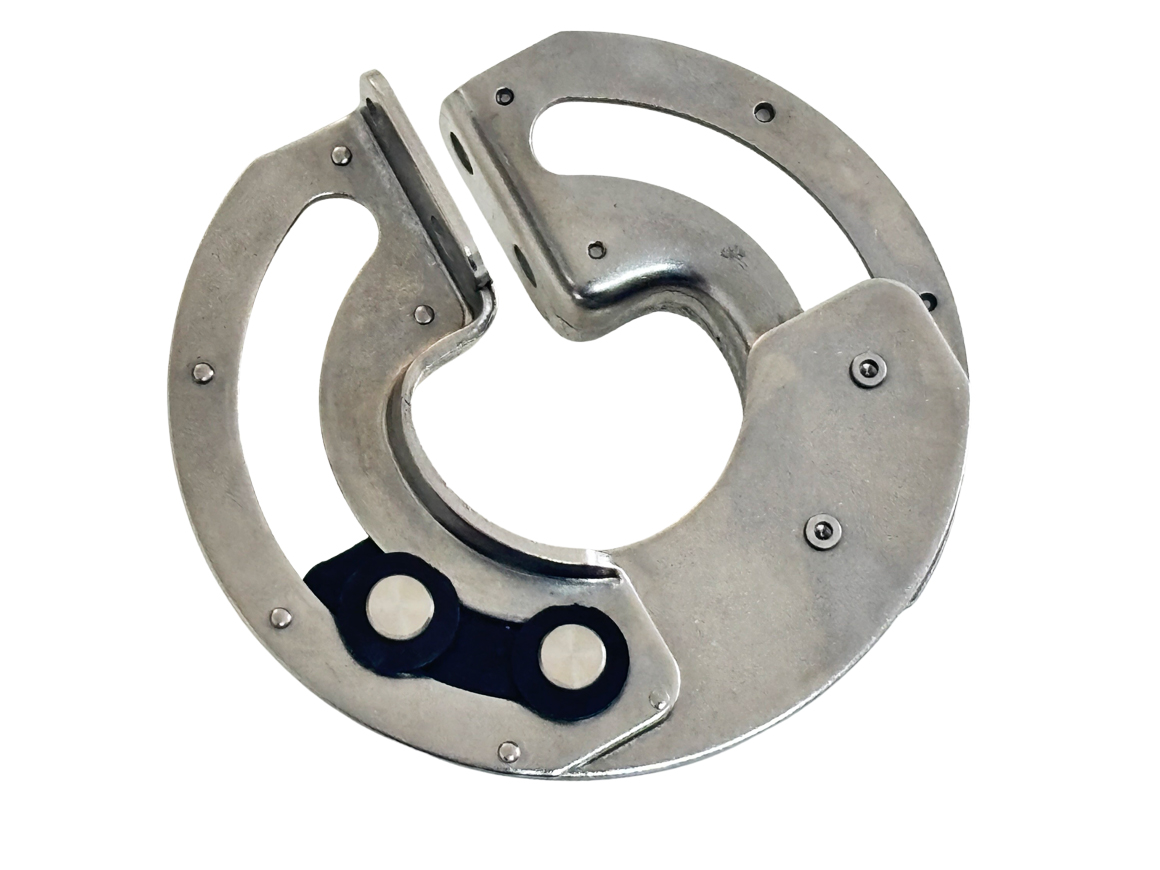

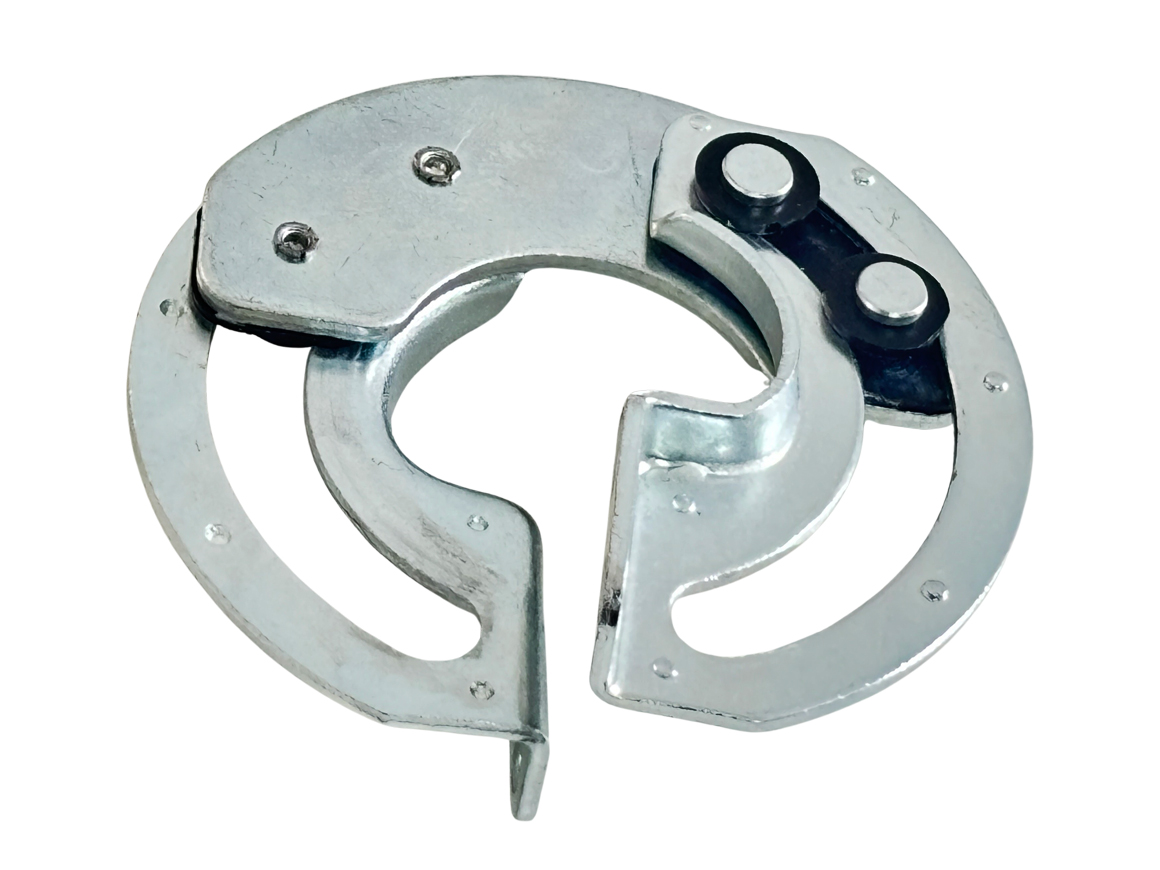

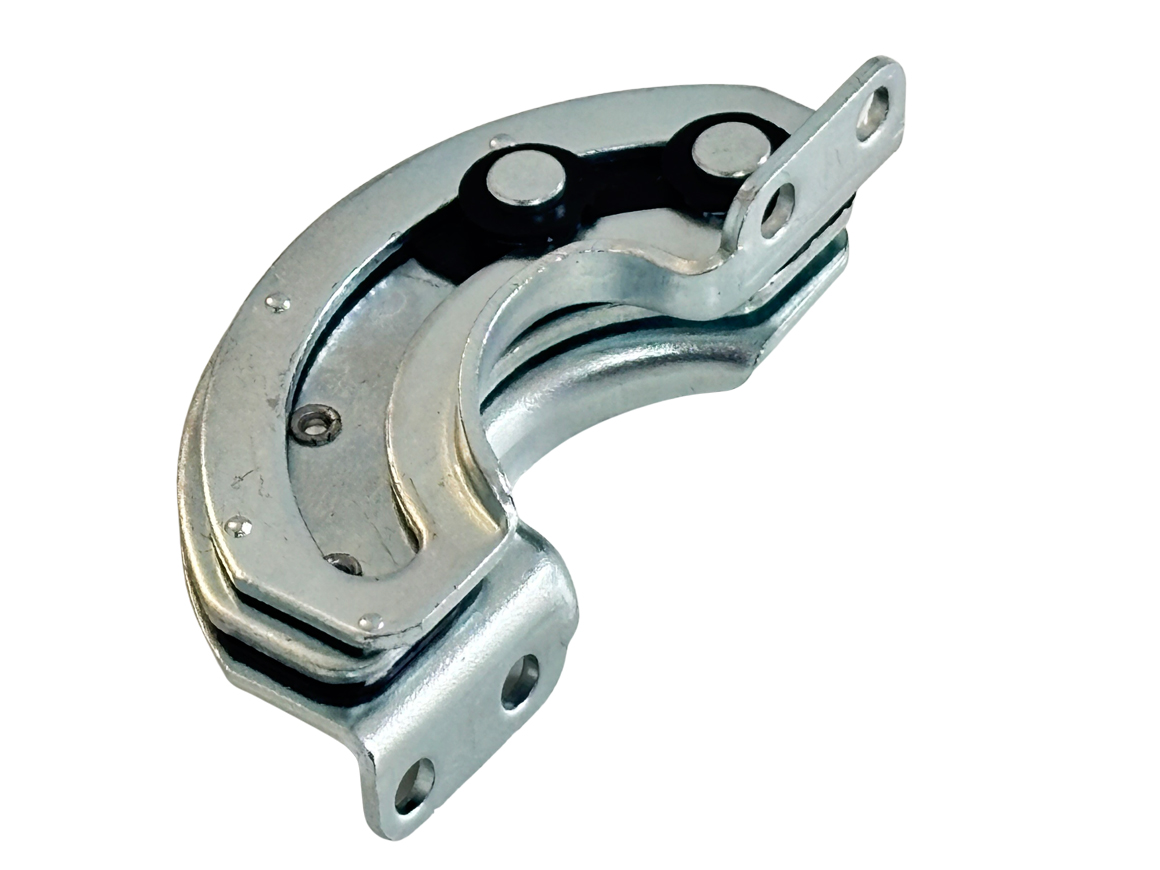

Hidden 90/180 Degree Hinge Industrial Equipment Cabinet Door Carbon Steel Sliding Limit Hinge

for industrial cabinets, electrical enclosures, hidden doors, or space-efficient furniture

Specifications

Product Overview

This 90°/180° hidden sliding hinge is designed for professional cabinetmakers, industrial equipment suppliers, and enclosure manufacturers. Featuring compact structure and smooth internal rotation, it provides a clean and modern solution for concealed door and panel applications.

* Hidden Mounting Design – Enhances the appearance with no visible hardware

* Dual-Angle Opening – Opens smoothly to 90° or 180° for flexible usage

* Carbon Steel Construction – Galvanized surface / Stainless Steel for anti-corrosion and long-lasting use

* Temperature Range – Reliable in -40°C to 85°C environments

* Quick Installation – Supports panel thickness ≤ 4mm; thicker panels require simple inner chamfering

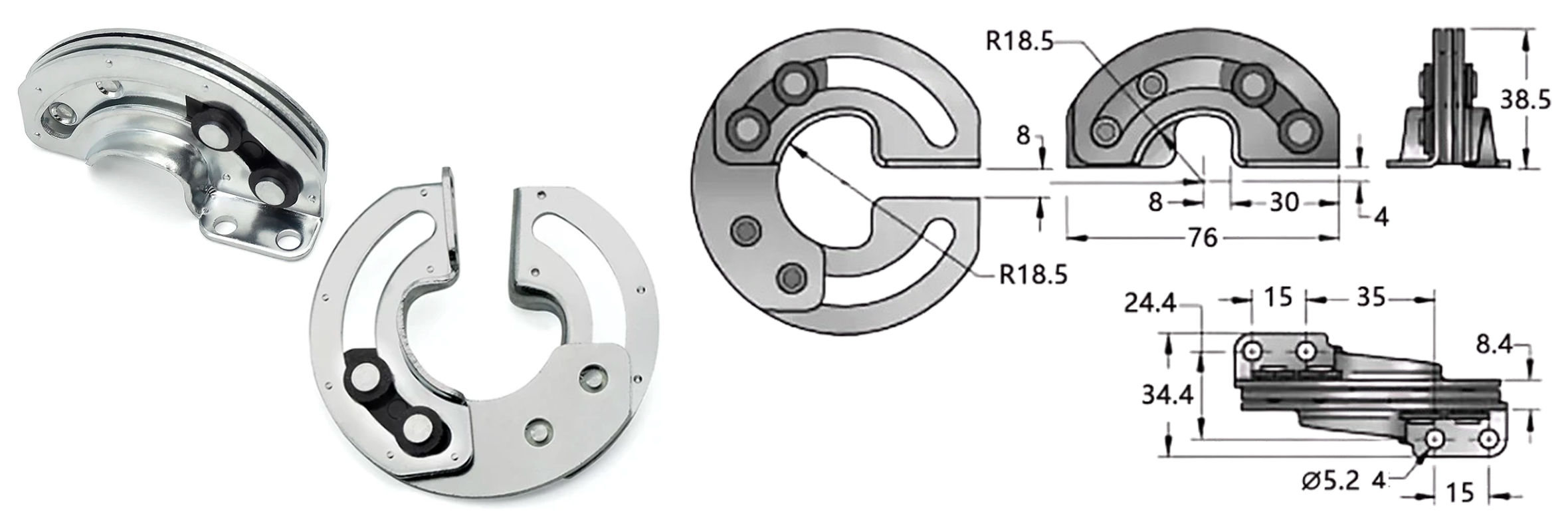

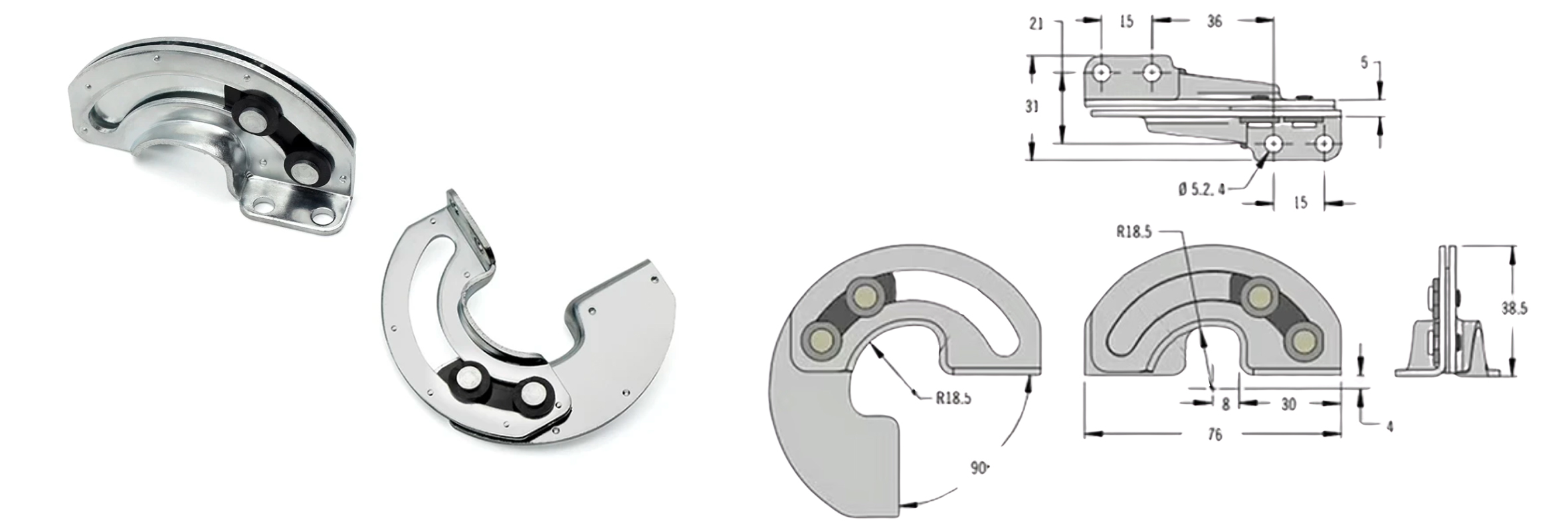

Drawing

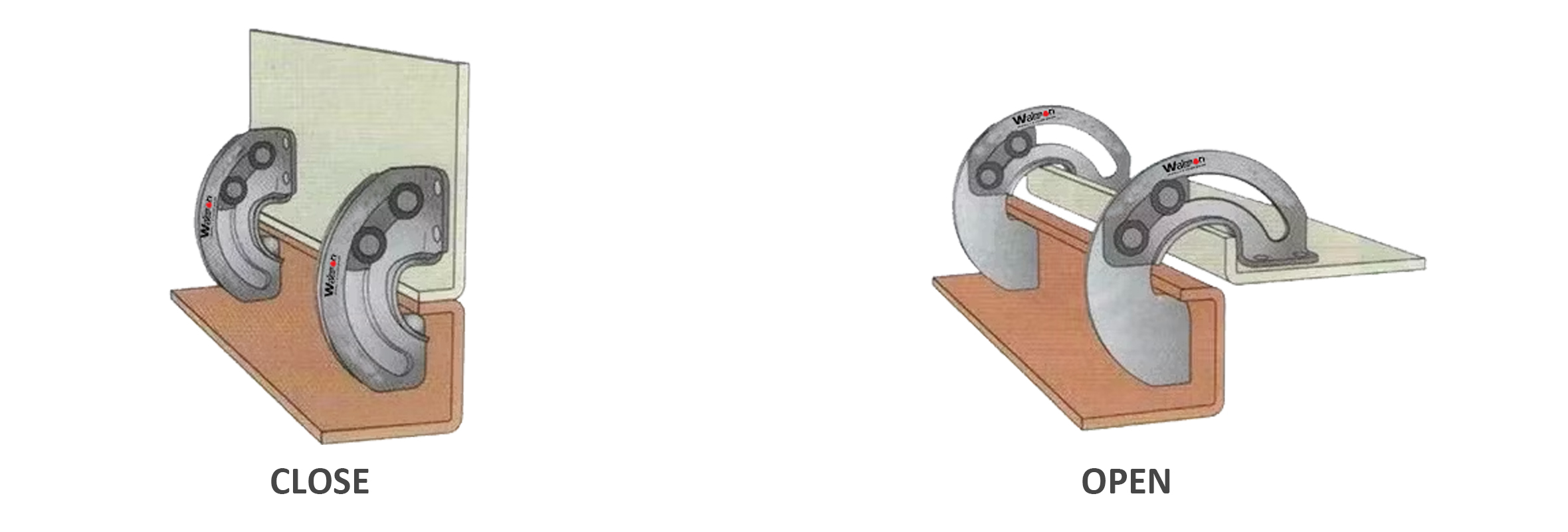

90D Sliding Hinge 01 2360x800 1 D Sliding Hinge 01 2360x800 1 90D Sliding Hinge 02 2360x800 1
